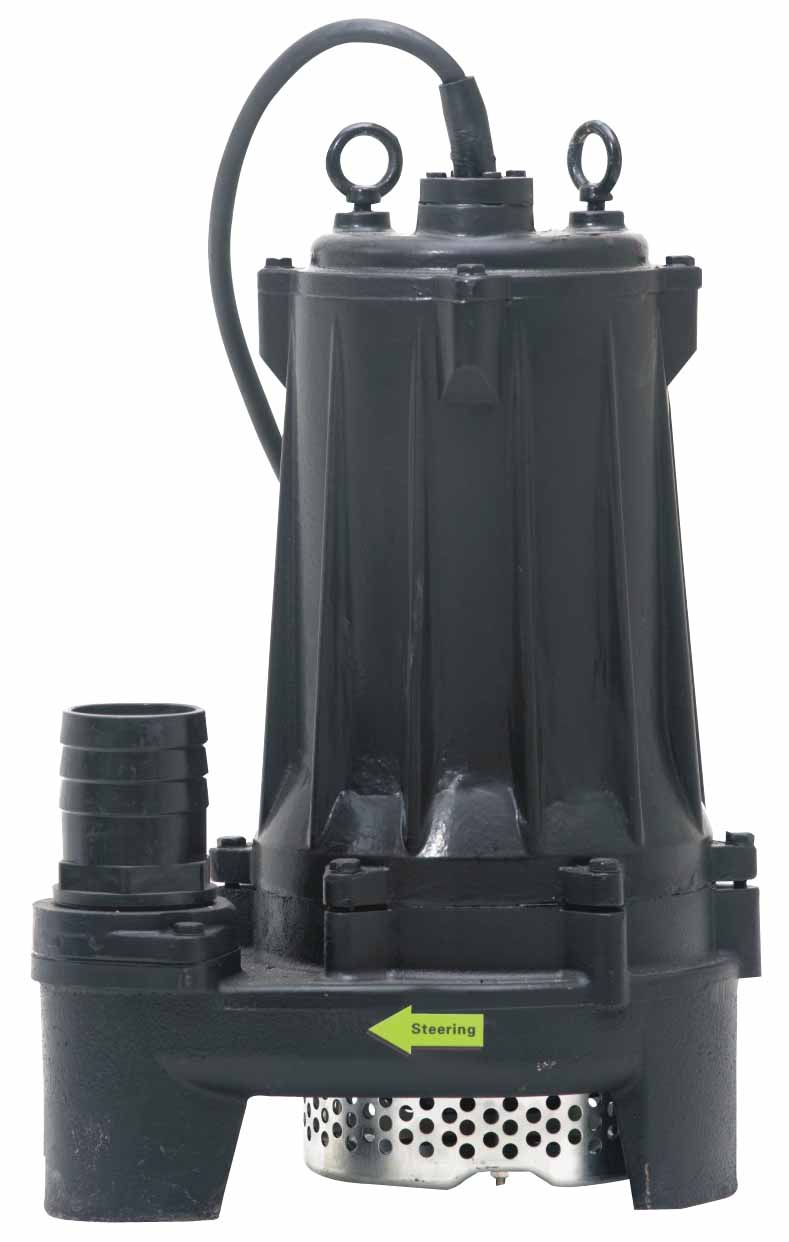

SPA SERIES THREE PHASE SUBMERSIBLE  PUMP

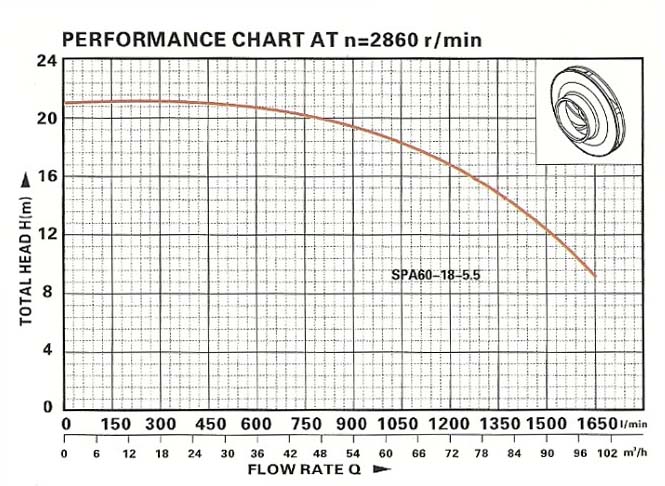

RANGE OF PERFORMANCE
8Flow rate: 1630 L/min (97.8 m3/h)
8Head: 21 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water : 6.5-8.5
8Maximum Passage for suspended solids: 2 mm

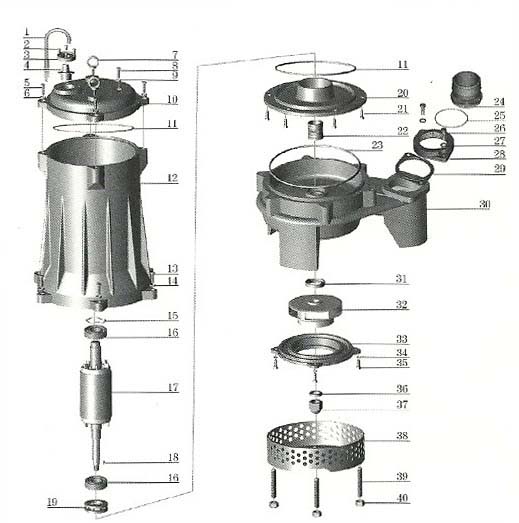

DIAGRAM



N.

DESCRIPTION

N.

DESCRIPTION

N.

DESCRIPTION

1

Cable

16

Ball bearing

31

Oil seal

2

Bolt

17

Rotor

32

Impeller

3

Flange

18

Key

33

Pump cover

4

Cable protector

19

Ball bearing

34

Stretching washer

5

Bolt

20

Lower bearing bracket

35

Bolt

6

Stretching washer

21

Screw

36

Stretching washer

7

Flying rings

22

Mechanical seal

37

Nut

8

Screw

23

"O" ring

38

Filter mesh

9

"O" ring

24

Out-let connector

39

Bilateral bolt

10

Upper bearing bracket

25

"O" ring

40

Nut

11

"O" ring

26

Bolt

41



12

Motor stator

27

Washer

42



13

Bolt

28

Connection nut

43



14

Stretching washer

29

Rubber washer

44



15

Undulated washer

30

Pump body

45

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
  VOLTAGE
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
20‘ QUANTITY

(Kw)

 V/Hz
(m)
(l/min)
(mm)

(m)
(Kg)
(cm)

 pcs

SPA60-18-5.5
5.5

380/50
21

1630

75

6
80
61X41X43

215
