    Home > Products > Garden pump > Submersible Pump

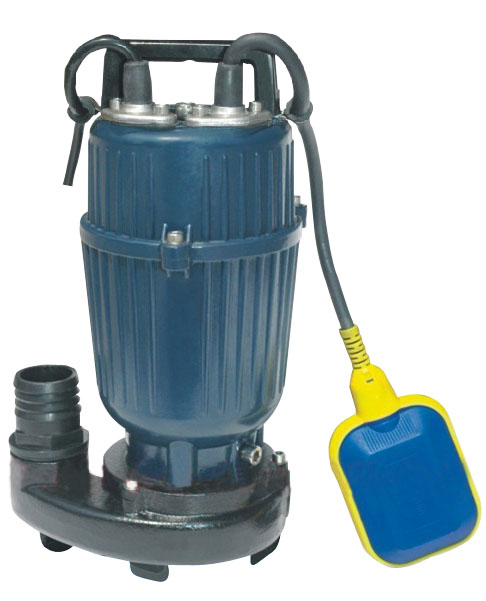

V(WQ)  MODEL SUBMERSIBLE  PUMP

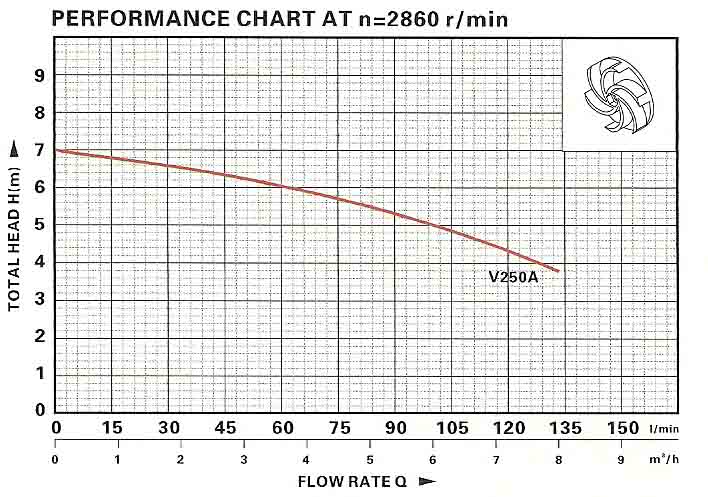

RANGE OF PERFORMANCE
8Flow rate: up to133 L/min (8 m3/h)
8Head: up to 7 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 10mm

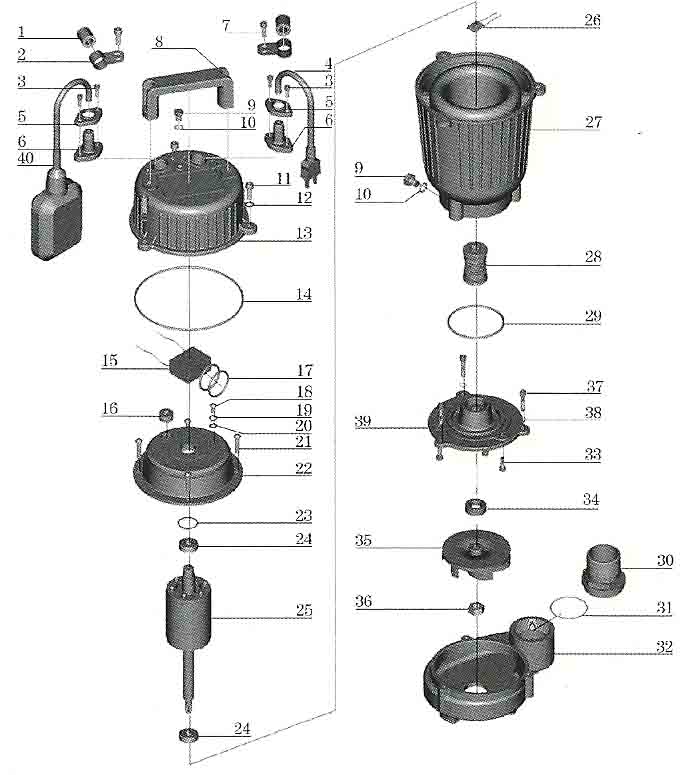

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Protector 13 Capacitor cover 25 Rotor 37 Screw
2 Cable presser 14 "O" ring 26 Thermal pretector 38 Washer
3 Screw 15 Capacitor 27 Motor stator 39 Connection part
4 Cable 16 Line protector 28 Mechanical seal 40 Float switch
5 Flange 17 "O" ring 29 "O" ring 41
6 Cable protector 18 Screw 30 Out-let connector 42
7 Screw 19 Stretching washer 31 "O" ring 43
8 Handle 20 Washer 32 Pump body 44
9 Bolt 21 Screw 33 Screw 45
10 "O" ring 22 Motot cover 34 Oil seal 46
11 Screw 23 Undulated washer 35 Impeller 47
12 Washer 24 Ball bearing 36 Nut 48





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE

G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(m)

(K.g)
(cm)

pcs

V250A
250
7
133
40

5.3

7.5
20.5X18.5X34

810

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
