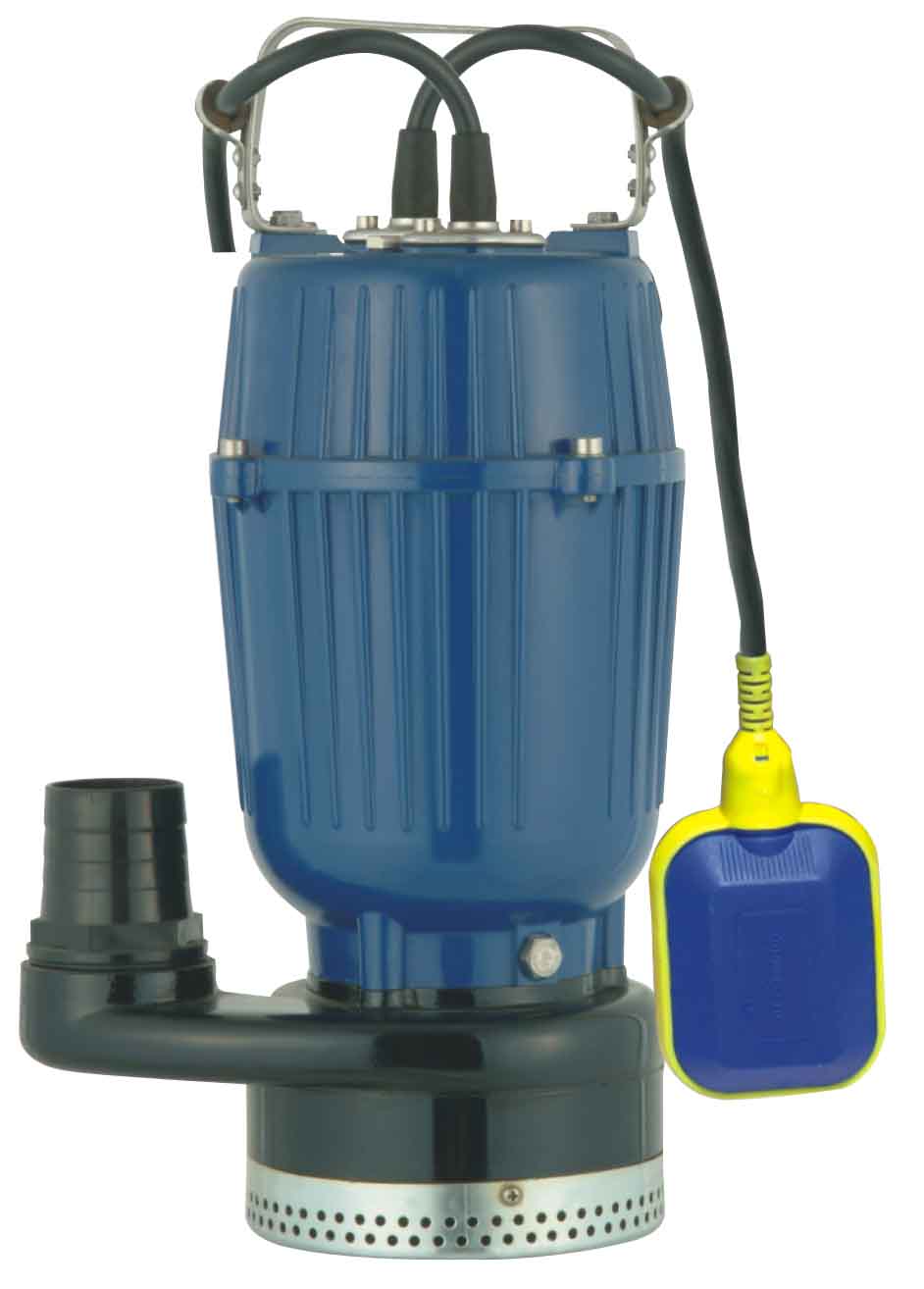

SA SERIES DOUBLE IMPELLER SUBMERSIBLE PUMP

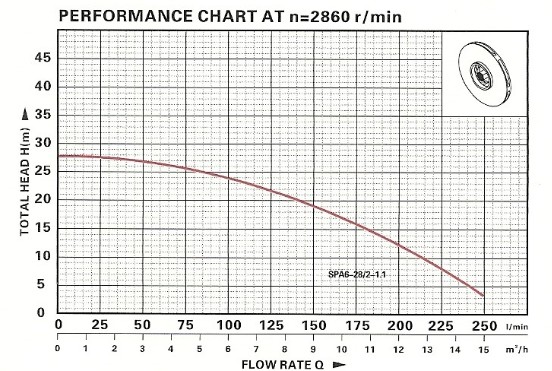

RANGE OF PERFORMANCE
8Flow rate: 250 L/min (15 m3/h)
8Head: 28 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 2 mm

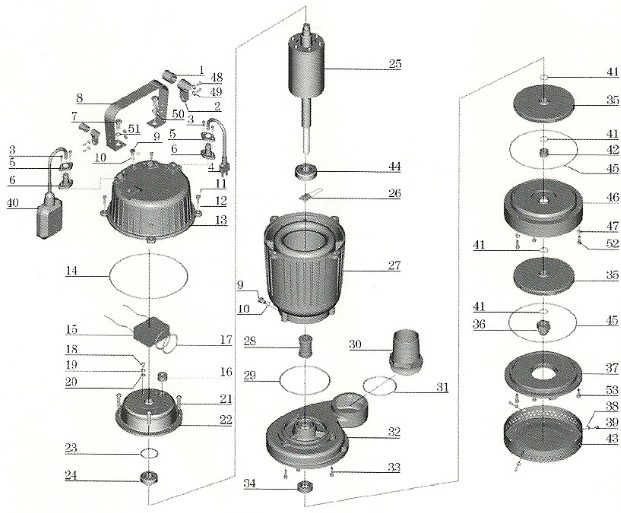

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Protector 16 Line protector 31 "O" ring 46 Guide leaf
2 Cable presser 17 "O" ring 32 Pump body 47 Stretching washer
3 Screw 18 Screw 33 Screw 48 Screw
4 Cable 19 Stretching washer 34 Oil seal 49 Washer
5 Flange 20 Washer 35 Impeller 50 Nut
6 Cable protector 21 Screw 36 Nut 51 Washer
7 Bolt 22 Motor cover 37 Pump cover 52 Screw
8 Handle 23 Undulated washer 38 Washer 53  Screw
9 Bolt 24 Bearing 39 Screw 54
10 "O" ring 25 Rotor 40 Float switch 55
11 Screw 26 Thermal protector 41 Rubber washer 56
12 Washer 27 Stator 42 Word ring 57
13 Capacitor cover 28 Mechanical seal 43 Filter mesh 58
14 "O" ring 29 "O" ring 44 Ball bearing 59
15 Capacitor 30 Out-let connector 45 "O" ring 60



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
DIMENSION
20‘ QUANTITY

(Kw)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

SA-1100DF
1.1
28
250
50

12
20.5
27X23.5X46.5

950

8220V/50Hz, 240V/50Hz, 110V/60Hz  & 240V/60Hz are available on request.
