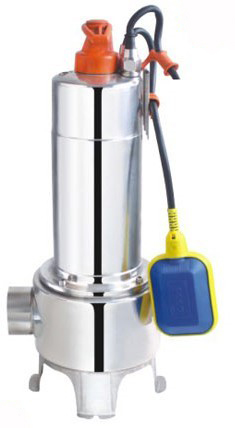

WQD MODEL OF STAINLESS STEEL DRAINAGE SUBMERSIBLE SEWAGE PUMP

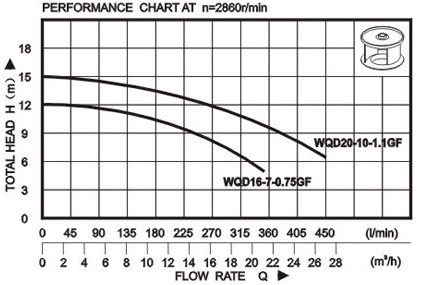

RANGE OF PERFORMANCE
8Flow rate: up to 450 L/min (27  m3/h)
8Head: up to 15 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 50mm

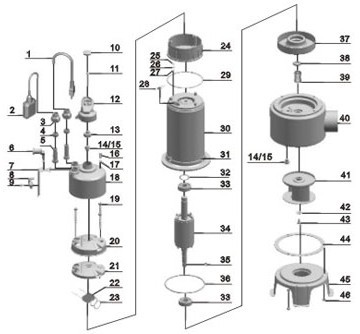

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Cable 13 Buckle 25 Nut 37 Connection part
2 Float switch 14 Blot 26 Sping washer 38 Oil seal
3 Nut 15 "O" ring 27 Washer 39 Mechanical seal
4 Word ring 16 Screw 28 Thermal protector 40 Pump body
5 Cable protector 17 "O" ring 29 "O" ring 41 Impeller
6 Protector 18 Outer cover 30 Stator 42 Washer
7 Groove 19 Screw 31 Screw 43 Blot
8 Sliding block 20 Inner cover 32 Undulated washer 44 Rubber washer
9 Screw 21 Capacitor cover 33 Bearing 45 Base plate
10 Handle cover 22 Capacitor 34 Rotor 46 Nut
11 Screw 23 "O" ring 35 Key 47
12 Handle 24 Capacitor holder 36 "O" ring 48





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.
HEAD
MAX.
FLOW
OUTLET

MAX.DIA
G.W
PACKING
DIMENSION
20‘ QUANTITY
(w)
(m)
(l/min)
(mm)

(mm)
(K.g)
(cm)

pcs

WQD16-7-0.75GF

750

13

350

50

50

11

28X23X53

630

WQD20-10-1.1GF

1100

15

450

50

50

13.5

28X53X57

630

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
