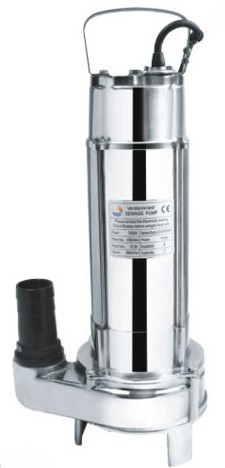

VN(WQ) MODEL OF STAINLESS STEEL DRAINAGE SUBMERSIBLE SEWAGE PUMP

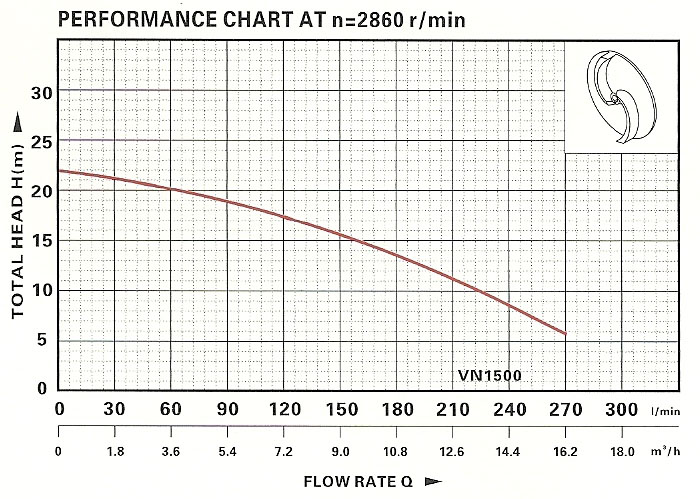

RANGE OF PERFORMANCE
8Flow rate: up to 700 L/min (42 m3/h)
8Head: up to 18.5 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 15-20mm

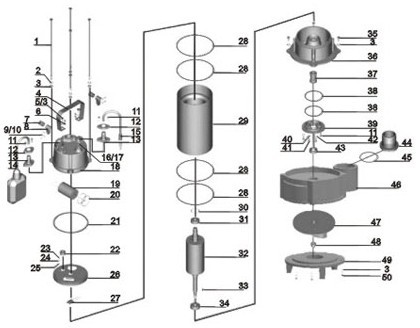

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 Bolt 31 Bearing 46 Pump body
2 Streching washer 17 "O" ring 32 Rotor 47 Impeller
3 Washer 18 Capacitor cover 33 Key 48 Nut
4 Handle 19 Capacitor 34 Bearing 49 Pump cover
5 Bolt 20 "O" ring 35 Screw 50  Screw
6 Nut 21 Rubber washer 36 Connection part 51
7 Protector 22 Line protector 37 Mechanical seal 52
8 Cable presser 23 Screw 38 "O" ring 53
9 Screw 24 Streching washer 39 Oil chamber cover 54
10 Washer 25 Washer 40 "O" ring 55
11 Screw 26 Motor cover 41 Screw 56
12 Flange 27 Thermal protector 42 Washer 57
13 Cable protector 28 "O" ring 43 Oil seal 58
14 Float switch 29 Stator 44 Out-let connector 59
15 Cable 30 Undulated washer 45 "O" ring 60





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

MAX.DIA
G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(mm)
(K.g)
(cm)

pcs

VN1500

1500

18.5

450

50

20

28

59X35.5X25

630

VN2200

2200

17

700

75

20

34

59X35.5X25

630

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
