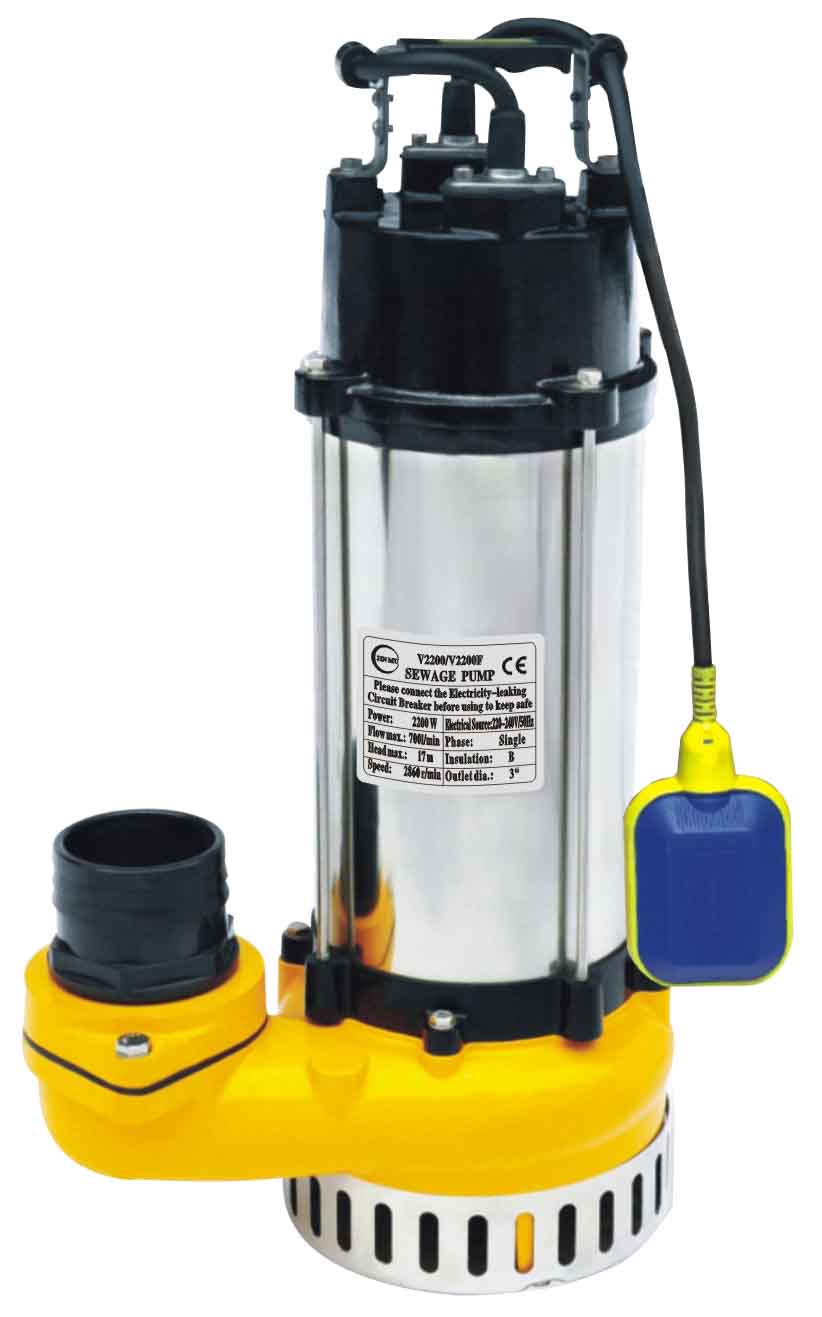

V(WQ) MODEL SUBMERSIBLE SEWAGE PUMP

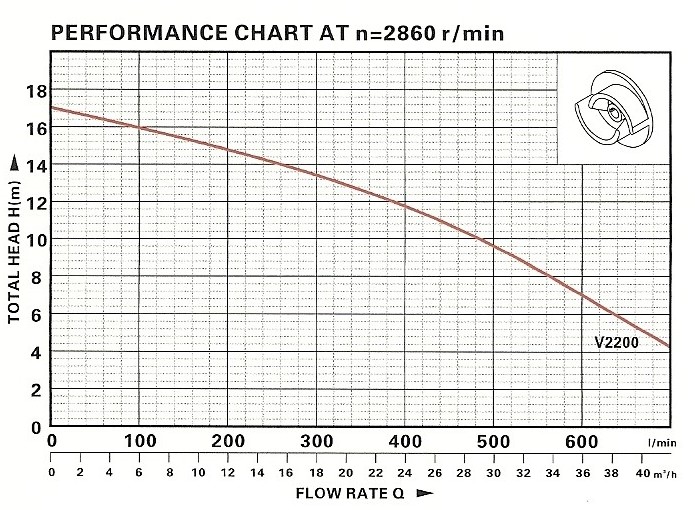

RANGE OF PERFORMANCE
8Flow rate:  up to 700 L/min (42 m3/h)
8Head: up to 17 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 20mm

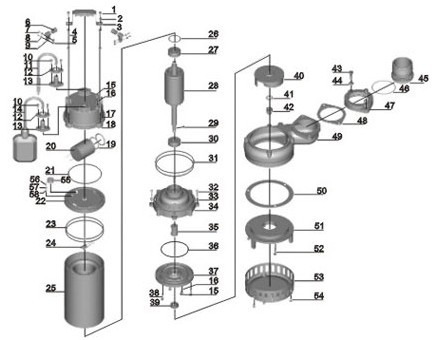

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 "O" ring 31 "O" ring 46 "O" ring
2 Washer 17 Streching washer 32 Bolt 47 Connection nut
3 Handle 18 Capacitor cover 33 Washer 48 Rubber washer
4 Bolt 19 "O" ring 34 Connection part 49 Pump body
5 Nut 20 Capacitor 35 Mechanical seal 50 Rubber washer
6 Protector 21 "O" ring 36 "O" ring 51 Pump cover
7 Screw 22 Motor cover 37 Oil chamber cover 52  Screw
8 Washer 23 "O" ring 38 Screw 53 Filter mesh
9 Cable presser 24 Thermal protector 39 Oil seal 54 Bolt
10 Screw 25 Stator 40 Impeller 55 Line protector
11 Cable 26 Undulated washer 41 Washer 56  Screw
12 Flange 27 Bearing 42 Nut 57 Streching washer
13 Cable protector 28 Rotor 43 Bolt 58 Float switch
14 Float switch 29 Key 44 Washer
15 Bolt 30 Bearing 45 Out-let connector




WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE

G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(m)

(K.g)
(cm)

pcs

V-2200F

2200

17

700

75

5.3

35

58.5x35x24.5

630

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
