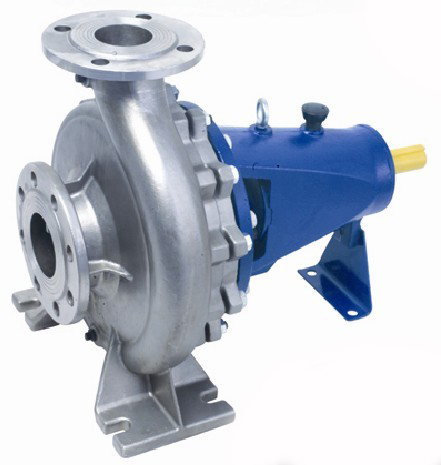

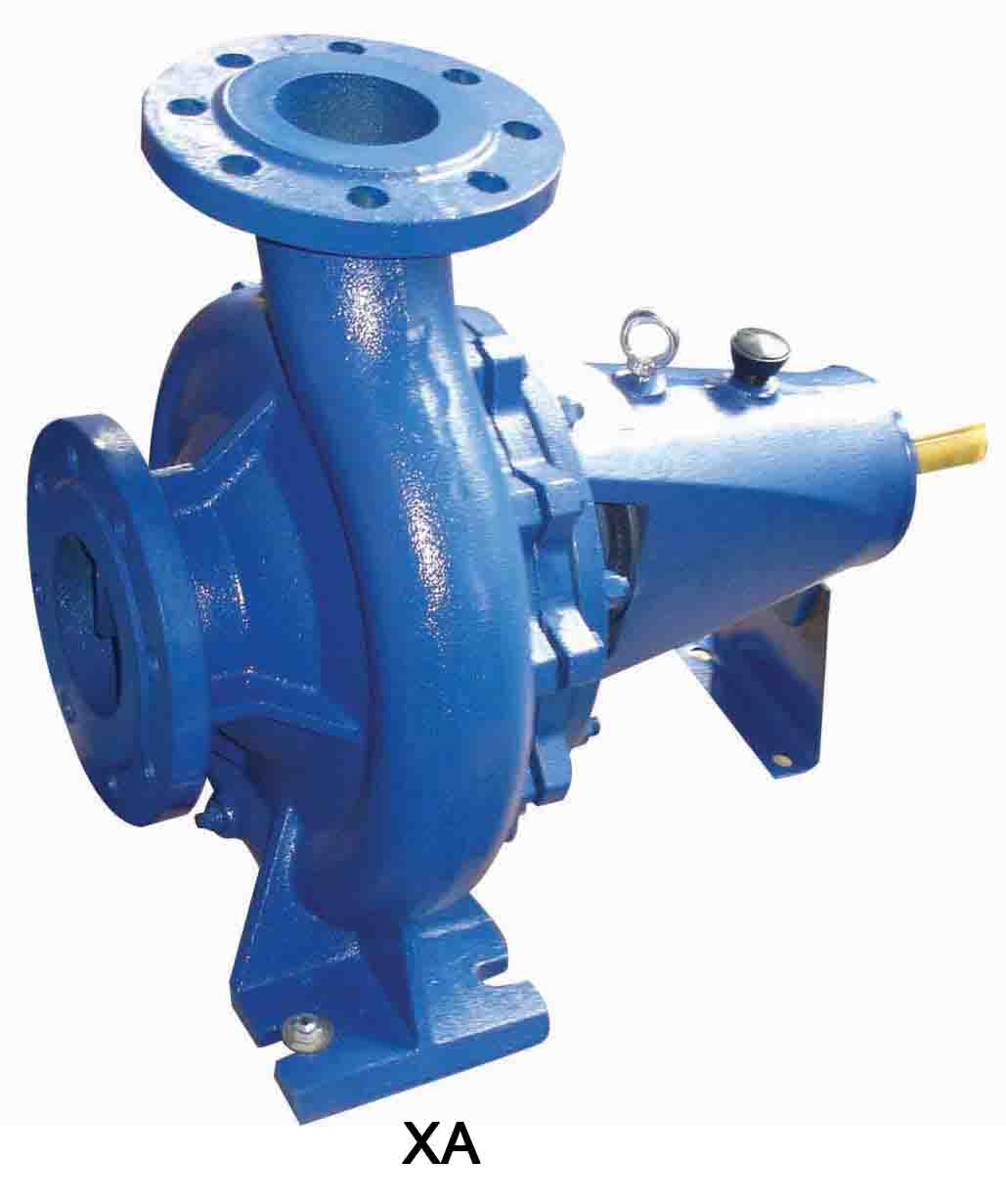

XA STANDARD CENTRIFUGAL PUMPS (DIN24255, BS EN733)

DESCRIPTION
8XA is used for handing clear water or the liquids
similar to the water physically and chemically finding the applications for water feed and supply service in mine, plants and towns and some uses in air-conditioning, extinguishing and irrigation.
8In spite of the same specification, the pump's performance vary with the outer diameter of the impeller.(Indicated with the block letters A, B and C in the end of the designation of the type.)
8The pump is simple in structure, reliable in preoformance, samll in size, low in power consumption, convenient in maintenance and of good caviation proof.
8XA has 60 specifications with the shaft in four sizes, suitable for various handling duties. For the pump with a same specification, the components, such as shaft, bearings,shaft sleeve, shaft seal and the fasteners of impellers are exchangebable.In addition, only five types of bearing brackets are applied to the whole series.


STRUCTURE FEATURES
8It is a back-open type. Dismantle the pump cover and the impeller without taking out both the suction and discharge piping.In the bearing bracket, there are two ball bearing which are lubricated with oils or grease.
8The pump is driven through the flexible couplings from a motor direct.
8The suction and discharge flange, the casing and pump foot are all cast to a whole.

MAIN PERFORMANCE

ITEMS

2900rpm

1450rpm

Capacity(Max.)

100L/s

150L/s

Head(Max.)

100m

55m

Speed(Max.)

3500rpm(Used under 60Hz)

Temperature(Max.)

150℃

Temperature(Min.)

-10℃

Operating Pressure(Max.)

1.6MPa

MATERIALS
8Pump casing: Cast iron,SS316
8Impeller: Cast iron ,Bronze, Stainless Steel
8Shaft:  Stainless Steel,Chrome steel
8Shaft sleeve:  Stainless Steel
8Casing ring: Cast iron, Bronze
8Mechanical seal: SiC-SiC, Graphite-Ceramics
8Bearing:  NSK, SKF, C&U, etc.

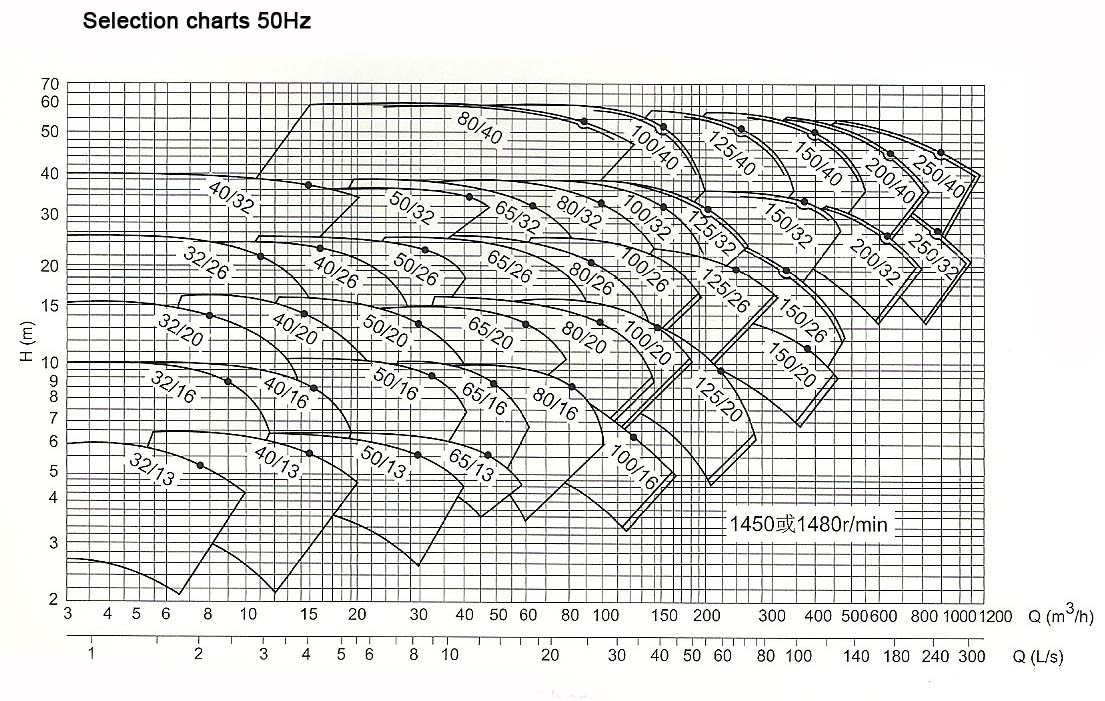

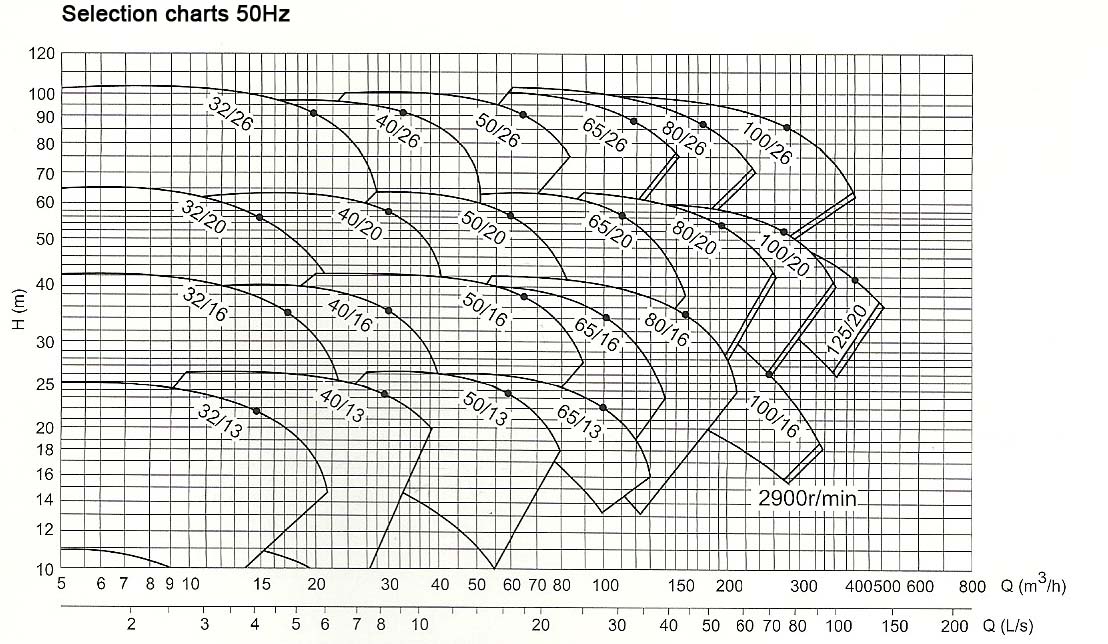

Selection charts

WARRANTY: 1 YEAR (according to our general sales conditions)

Type

Capacity
(Q)

Head
H
(r/min)

Speed
n
(r/min)

Power
P(kW)

Mating
Motor

Efficiency
η
(%)

NPSHR
(M)

Impeller
dia.D2
(mm)

Dia.of pump
(mm)

Weight
(kg)

(m3/h)

(L/s)

Shaft
Power

Motor
Power

Inlet

Outlet

XA32/13

9

2.5

 24.5 2900 1.23 1.5 Y90L-2
2.2kW		 49 1.8  Φ139 50 32 27.5

15

4.17

 22 1.47 2.2 61 2

18

5

 20 1.58 2.5 62 2.5

XA32/13A

8.5

2.36

 21.2 2900 1.04 1.5 Y90L-2
2.2kW		 47 1.8 Φ130 50 32 27.5

14

3.89

 19 1.23 1.5 59 1.95

17

4.72

 17.2 1.31 2.2 60.5 2.3

XA32/13B

7.8

2.17

 18 2900 0.89 1.1 Y90S-2
1.5kW 		 43 1.8 Φ120 50 32 27.5

13

3.61

 16.2 1.01 1.1 56.5 1.88

15.5

4.31

 14.7 1.07 1.5 58 2.08

XA32/16

11

3.05

 40 2900 2.49 3 Y132S1-2
5.5kW		 48 1.9 Φ174 50 32 35

18

5.0

 37 3.18 4 57 2.0

22

6.11

 34 3.51 5.5 58 2.6

XA32/16A

10.5

2.92

 35.7 2900 2.22 3 Y112M-2
4kW		 46 1.9 Φ165 50 32 35

17

4.72

 33 2.78 3 55 1.95

21

5.83

 30 3.06 4 56 2.4

XA32/16B

9.8

2.72

31.4

 2900 1.93 2.2 Y112M-2
4kW		 43.5 1.9 Φ155 50 32 35

16

4.44

 29 2.38 3 53 1.95

19.5

5.42

 26.5 2.61 4 54 2.2

XA32/20

11

3.05

 63 2900 4.71 5.5 Y160M1-2
11kW		 40 1.8 Φ214 50 32 41

18

5.0

 59 5.9 7.5 49 2

22

6.11

 55.5 6.52 11 51 2.3

XA32/20A

10.5

2.92

 57.2 2900 4.24 5.5 Y132S2-2
7.5kW		 38.6 1.8 Φ205 50 32 41

17

4.72

 54 5.26 7.5 47.5 1.95

21

5.83

 50.2 5.79 7.5 49.5 2.2

XA32/20B

10

2.78

 51.5 2900 3.69 5.5 Y132S2-2
7.5kW		 38 1.8 Φ195 50 32 41

16.5

4.58

 48 4.5 7.5 46.8 1.9

20

5.56

 45 5.03 7.5 48.8 2.15

XA32/26

14

3.89

 99 2900 11.27 15 Y160L-2
18.5kW		 33.5 2.1 Φ264 50 32 59

22

6.11

 95 13.23 15 43 2.2

26

7.22

 92 14.47 18.5 45 2.6

XA32/26A

13.5

3.75

 91.8 2900 10.75 15 Y160m2-2
15kW		 31.4 2.1 Φ255 50 32 59

21

5.83

 88 12.58 15 40 2.2

25

6.94

 85 13.6 15 42.5 2.5

XA32/26B

13

3.61

 84.5 2900 9.97 15 Y160m2-2
15kW		 30 2.15 Φ245 50 32 59

20.5

5.69

 81 11.74 15 38.5 2.16

24

6.67

 78.4 12.63 15 40.6 2.38

XA40/13

18

5

 25.5 2900 2.08 2.2 Y112M-2
4kW		 60 1.8 Φ139 65 40 30

30

8.33

 23.5 2.74 3 70 2

36

10

 21.5 3.03 4 69.5 2.5

Type

Capacity
(Q)

Head
H
(r/min)

Speed
n
(r/min)

Power
P(kW)

Mating
Motor

Efficiency
η
(%)

NPSHR
(M)

Impeller
dia.D2
(mm)

Dia.of pump
(mm)

Weight
(kg)

(m3/h)

(L/s)

Shaft
Power

Motor
Power

Inlet

Outlet

XA40/13A

16.8

4.67

 22 2900 1.8 2.2 Y112M-2
4kW		 56 1.8 Φ130 65 40 30

28

7.78

 20.2 2.3 3 67 2

33.6

9.33

 18.8 2.56 4 67.2 2.25

XA40/13B

15.5

4.31

 18.5 2900 1.48 1.5 Y100L-2
3kW		 53 1.8 Φ120 65 40 30

26

7.22

 17 1.85 2.2 65 1.9

31

8.61

 15.5 2.01 3 65 2.15

XA40/16

18

5

 39.5 2900 3.65 5.5 Y132S2-2
7.5kW		 53 2.1 Φ175 65 40 36

30

8.33

 35 4.47 5.5 64 2.5

36

10

 31.5 4.9 7.5 63 3.6

XA40/16A

17

4.72

 34.8 2900 3.16 4 Y132S1-2
5.5kW		 51 2.1 Φ165 65 40 36

28.5

7.92

 30.5 3.82 5.5 62 2.5

34

9.44

 27.6 4.19 5.5 61 3.25

XA40/16B

16

4.44

 30.5 2900 2.77 4 Y112M-2
4kW		 48 2.05 Φ155 65 40 36

26.5

7.4

 27 3.29 4 59.5 2.4

32

8.89

 24 3.55 4 59 2.9

XA40/20

18

5.0

63

 2900 6.3 7.5 Y160M1-2
11kW		 49 1.8 Φ214 65 40 44

30

8.33

 58 8.17 11 58 2

36

10

 53 8.96 11 58 2.7

XA40/20A

17

4.72

 57.4 2900 5.72 7.5 Y160M1-2
11kW		 46.4 1.8 Φ205 65 40 44

29

8.06

 52.4 7.46 11 55.5 1.95

34.5

9.58

 48 8.05 11 56 2.45

XA40/20B

16.5

4.58

 51.8 2900 5.28 5.5 Y160M1-2
11kW		 44 1.8 Φ195 65 40 44

27.5

7.64

 47.5 6.71 7.5 53 1.9

33

9.17

 43.3 7.24 11 53.8 2.2

XA40/26

20

5.56

 97 2900 13.22 15 Y180M-2
22kW		 40 1.8 Φ264 65 40 61

33

9.17

 92 16.22 18.5 51 2.0

40

11.11

 87 17.88 22 53 2.5

XA40/26A

19.5

5.42

 89 2900 12.28 15 Y160L-2
18.5kW		 38.5 1.8 Φ255 65 40 61

32

8.89

 84 15.09 18.5 48.5 1.95

38.5

10.7

 79.5 16.35 18.5 51 2.35

XA40/26B

18.5

5.14

 82 2900 11.17 15 Y160L-2
18.5kW		 37 1.8 Φ248 65 40 61

30.5

8.47

 78 13.78 15 47 1.9

37

10.28

 73 15.02 18.5 49 2.2

XA50/13

36

10

 25.5 2900 3.85 5.5 Y132S2-2
7.5kW		 65 2.5 Φ139 65 50 34

60

16.67

 23 4.95 5.5 76 3.2

72

20

 20.5 5.36 7.5 75 4

XA50/13A

33.5

9.31

 22 2900

3.19

 4 Y132S1-2
5.5kW		 63 2.5 Φ130 65 50 34

56

15.56

 19.5 4.02 5.5 74 3.1

67.5

18.5

 17.2 4.33 5.5 73 3.6

Type

Capacity
(Q)

Head
H
(r/min)

Speed
n
(r/min)

Power
P(kW)

Mating
Motor

Efficiency
η
(%)

NPSHR
(M)

Impeller
dia.D2
(mm)

Dia.of pump
(mm)

Weight
(kg)

(m3/h)

(L/s)

Shaft
Power

Motor
Power

Inlet

Outlet

XA50/13B

31

8.61

 18.5 2900 2.56 3 Y132S1-2
5.5kW		 61 2.5 Φ1320 65 50 34

52

14.44

 16.5 3.24 4 72 2.9

62

17.22

 14.8 3.52 5.5 71 3.3

XA50/16

40

11.11

 41.5 2900 7.06 11 Y160M1-2
11kW		 64 2.5 Φ174 65 50 38

65

18.05

 38 9.09 11 74 3.5

78

21.67

 35.0 10.05 11 74 4.2

XA50/16A

38

10.56

 37 2900 6.19 7.5 Y160M1-2
11kW		 62 2.5 Φ165 65 50 38

61.5

17.1

 33.8 7.9 11 72 3.3

74

20.6

 31.2 8.75 11 72 3.9

XA50/16B

35.5

9.86

 32.5 2900 5.24 5.5 Y160M1-2
11kW		 60 2.35 Φ155 65 50 38

58

16.11

 29.5 6.66 11 70 3.1

69.5

19.31

 27 7.36 11 69.5 3.7

XA50/20

36

10.0

 62 2900 10.48 15 Y160L-2
18.5kW		 58 2.5 Φ214 65 50 46

60

16.67

 56 13.07 15 70.0 3.2

72

20

 50 14.42 18.5 68 4

XA50/20A

34.5

9.6

56

 2900 9.25 11 Y160M2-2
15kW		 57 2.5 Φ205 65 50 46

57.5

16

 50.5 11.5 15 69 3.1

69

19.2

 45 12.64 15 67 3.75

XA50/20B

33

9.1

 50.6 2900 8.13 11 Y160M2-2
15kW		 55.5 2.5 Φ195 65 50 46

54.5

15.1

 45.6 10 15 67.5 3

65.5

18.2

 40.5 11 15 66 3.5

XA50/26
XA50/26H

40

11.11

 100 2900 20.17 30 Y200L2-2
37kW		 54 2.5 Φ264 65 50 63

65

18.05

 91 25.97 30 62 3.5

78

21.67

 82 29.03 37 60 4.2

XA50/26A
XA50/26HA

38.5

10.69

 92.5 2900 18.29 22 Y200L1-2
30kW		 53 2.4 Φ255 65 50 63

63

17.5

 84 23.63 30 61 3.3

75.5

20.97

 75.6 26.34 30 59 3.9

XA50/26B
XA50/26HB

37

10.28

 85.5 2900 16.57 18.5 Y200L1-2
30kW		 52 2.3 Φ245 65 50 63

60.5

16.81

 77.5 21.29 30 60 3.2

72.5

20.14

 69.8 23.76 30 58 3.9

XA65/13

60

16.67

 25 2900 6.1 7.5 Y160M1-2
11kW		 67 3 Φ139 80 65 39

100

27.75

 22 7.68 11 78 3.5

120

33.33

 19 8.38 11 74 4.5

XA65/13A

65

15.56

 21.1 2900 5.03 7.5 Y160M1-2
11kW		 64 3 Φ130 80 65 39

93.5

26

 16 5.83 11 70 3.5

112.5

31.25

 12.5 6.49 11 59 4.1

XA65/13B

52

14.44

 18 2900 4.12 5.5 Y132S2-2
7.5kW		 62.5 3 Φ120 80 65 39

86.5

24

 13.7 4.88 7.5 66 3.3

104

28.9

 10.6 5.43 7.5 57 3.75

Type

Capacity
(Q)

Head
H
(r/min)

Speed
n
(r/min)

Power
P(kW)

Mating
Motor

Efficiency
η
(%)

NPSHR
(M)

Impeller
dia.D2
(mm)

Dia.of pump
(mm)

Weight
(kg)

(m3/h)

(L/s)

Shaft
Power

Motor
Power

Inlet

Outlet

XA65/16

60

16.67

 39 2900 10.28 15 Y160L-2
18.5kW		 62 3.6 Φ174 80 65 43

100

27.78

 35 12.7 15 75 4.2

120

33.33

 32 13.94  18.5 75 5.2

XA65/16A

57

15.83

 34.5 2900 8.92 11 Y160M2-2
15kW		 60 3.6 Φ165 80 65 43

95

26.4

 31 11 15 73 4.1

114

31.7

 28 11.92 15 73 4.8

XA65/16B

53.5

14.86

 30 2900 7.54 11 Y160M1-2
11kW		 58 3.6 Φ155 80 65 43

89

27.72

 27 9.22 11 71 3.95

107

29.72

 24.5 10 11 71 4.5

XA65/20
XA65/20H

66

18.33

 63 2900 17.97 22 Y200L1-2
30kW		 63 3 Φ214 80 65 70

110

30.55

 57 23.07 30 74 3.9

132

36.67

 52 25.09 30 74.5 5.3

XA65/20A
XA65/20HA

63

17.5

 57 2900 15.77 18.5 Y200L1-2
30kW		 62 3 Φ205 80 65 70

105.5

29.31

 51 20.08 30 73 3.75

126.5

35.14

 47 22.03 30 73.5 4.85

XA65/20B
XA65/20HB

60

16.67

51.5

 2900 13.8 18.5 Y200L1-2
30kW		 61 3 Φ195 80 65 70

100

27.78

 46.5 17.59 22 72 3.6

120

33.33

 42.5 19.16 30 72.5 4.4

XA65/26

72

20

 97 2900 29.50 37 Y250M-2
55kW		 64.5 3.3 Φ264 80 65 81

120

33.33

 89 39.84 45 73 4.5

144

40

 83 44.59 55 73 5.4

XA65/26A

69.5

19.31

 90 2900 26.21 37 Y225M-2
45kW		 65 3.25 Φ255 80 65 81

116

32.22

 82.5 36.19 45 72 4.4

139

38.61

 77 40.48 45 72 4.95

XA65/26B

67

18.61

 83 2900 23.66 30 Y225M-2
45kW		 64 3.2 Φ245 80 65 81

111.5

31

 76 32.53 37 71 4.25

133.5

37.1

 71 36.61 45 70.5 4.95

XA80/16
XA80/16H

100

27.78

 39 2900 15.85 18.5 Y200L1-2
30kW		 67 3.3 Φ174 100 80 54

162

45

 35 19.3 22 80 4

195

54.17

 31.5 21.18 30 79 5

XA80/16A
XA80/16HA

95

26.39

 34.5 2900 13.73 18.5 Y180M-2
22kW		 65 3.3 Φ165 100 80 54

153.5

42.64

 31 16.61 18.5 78 3.85

185

51.39

 28 18.32 22 77 4.6

XA80/16B

89

24.72

 30.5 2900 11.73 15 Y160L-2
18.5kW		 63 3.25 Φ155 100 80 54

144.5

40.14

 27.2 14.08 15 76 3.7

175

48.33

 24.5 15.48 18.5 75 4.3

XA80/20

115

31.94

 61 2900 27.29 37 Y225M-2
45kW		 70 4 Φ214 100 80 70

190

52.78

 55 35.57 37 80 5.1

225

62.5

 50 38.78 45 79 6.2

, ,,

Type

Capacity
(Q)

Head
H
(r/min)

Speed
n
(r/min)

Power
P(kW)

Mating
Motor

Efficiency
η
(%)

NPSHR
(M)

Impeller
dia.D2
(mm)

Dia.of pump
(mm)

Weight
(kg)

(m3/h)

(L/s)

Shaft
Power

Motor
Power

Inlet

Outlet

XA80/20A

110

30.56

 55.5 2900 24.1 30 Y200L2-2
37kW		 69 4 Φ205 100 80 70

182

50.56

 50 31.37 37 79 4.9

215.5

59.86

 45.5 34.23  137 78 5.85

XA80/20B

105

29.17

 50 2900 21.03 30 Y200L2-2
37kW		 68 4 Φ195 100 80 70

173

48.06

 45 24.08 30 78 4.7

205

56.94

 41 29.72 37 77 5.5

XA80/26

115

31.94

 96 2900 45.5 55 Y280S-2
75kW		 66 4 Φ264 100 80 91

190

52.78

 86 57.8 75 77 5.4

225

62.5

 79 64.5 75 75 6.5

XA80/26A

111

30.83

 89 2900 41.39 55 Y280S-2
75kW		 65<, /TD> , 3.95 Φ255 10080 91

183.5

50.97

 79.8 52.47 75 76 5.2

217.5

60.42

 73 58.43 75 74 6.25

XA80/26B

106.5

29.58

 82 2900 37.16 45 Y280S-2
75kW		 64 3.9 Φ245 100 80 91

176.5

49.03

 73.5 47.11 55 75 5

209

58.06

 67.5 52.63 75 73 6

XA100/16

151.2

42

33

 2900 22.65 30 Y200L2-2
37kW		 60 5 Φ175 125 100 71

252

70

 27 25.74 37 72 5

302.4

84

 22.4 26.3 37 70 5.5

XA100/20

180

50

 59 2900 41.32 55 Y280S-2
75kW		 70 4 Φ214 125 100 85

285

79.17

 52 50.14 75 80.5 5.3

340

94.44

 44 54.68 75 74.5 6.3

XA100/20A

172.5

47.92

 52.5 2900 35.75 45 Y250M-2
55kW		 69 3.95 Φ205 125 100 85

273

75.83

 46 43.02 55 79.5 4.9

325.5

90.42

 38 45.83 55 73.5 5.95

XA100/20B

164

45.65

 47 2900 30.87 37 Y225M-2
45kW		 68 3.9 Φ195 125 100 85

260

72.22

 40 36.08 45 78.5 4.8

310

86.11

 32.5 37.85 45 72.5 5.6

XA100/26
XA100/26H

190

52.78

 97 2900 71.7 90 Y315S-2
110kW		 70 3.8 Φ264 125 100 115

295

81.94

 85 87.54 100 78 5.2

350

97.22

 75 97.93 110 73 6.5

XA100/26A
XA100/26HA

183.5

50.97

 89 2900 64.45 75 Y315S-2
110kW		 69 3.75 Φ255 125 100 115

285

79.17

 78 78.63 90 77 5

338

93.89

 68.5 87.57 100 72 6.2

XA100/26B
XA100/26HB

177

49.17

 82 2900 58.13 75 Y280M-2
90kW		 68 3.7 Φ245 125 100 115

274

76.11

 71.5 70.2 90 76 4.8

325

90.82

 63 78.54 90 71 5.9

XA125/20

238

66

 54.5 2900 59.3 75 Y280M-2
90kW		 59.5 7 Φ214 150 125 106
360 100 49 66.3 90 72.5 7.2
475 132 40 70.9 90 73 7

XA125/20A

228

63.2

 49.5 2900 53.0 75 Y280S-2
75kW 		 58.5 7 Φ205 150 125 106
345 95.8 44 58.0 75 71.5 7.1
455 126 35.3 61 75 72 6.85

XA125/20B

216

60.1

 44.8 2900 46 55 Y280S-2
75kW		 57.5 7 Φ195 150 125 106
328 91.1 39.5 50.5 55 70.5 6.95
433 120 31.5 52.8 75 71 6.6
