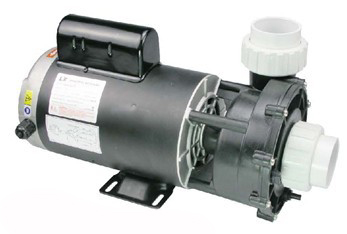

WUA SPA PUMP

Application:
8Spa system (outdoor) and cycle or filter of swimming pool system
8WTC50M use for SPA circulation system.
8Weak corrosive liquid (weak acid and weak) without solid granules. Liquid temperature: +5~60℃
8It's suitable for circulating water equipment that use for workshop' cooling-down.

Features
8There are Eurpean type and Northern American type based on various courntry and areas usage.
8The wet and (pump housing, pump cover impeller) is made by high reinforce  engineering plastic. Durable mechanical seal.
8Large flow pump casing design. 2'' inlet/outlet. Pump housing could be 90° flexible in stallation for easy pipe work.
8Double speed motor is an option on request.
8Single-phase with thermal protector from TI
8Pump apply for low noise standrad motor to eliminate noise of high frequency. In conformity with hyromassage bathtub usage request.
8WTC50M is circulating pump for SPA circulation, system. Low noise, energy-save, high efficiency.
8Pump meet the safty standrad of 3C, TUV, CE, UL, ETL. Detail is be inquired according to instruction of this manual.


Option information:
8LP series, single speed, air cooling motor, TUV ceritificate
8WP series, single/dal speed, air cooling motor, TUV cerificate
8WUA series, single/dal speed, fan cooling motor, ETL cerificate, for American Market.
8The connection mode of power cord is coincident with the contorller.

Working conditions:
8Liquid temperature: 5-60℃ clean water.
8Environment temperature: ≤50℃.
8Max. operating pressure: 0.3Mpa

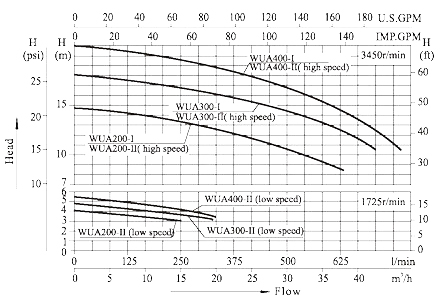

Performance curves:

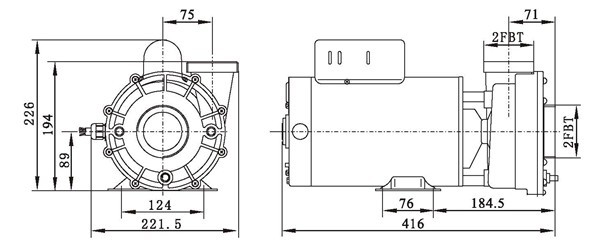

Shape and size of Installation:

Technical parameter list:
