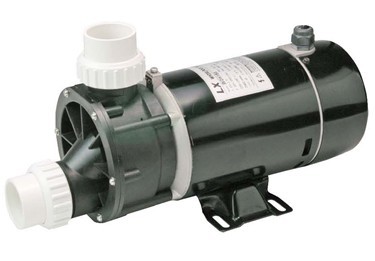

WDH HYDROMASSAGE BATHTUB PUMP

Application:
8Hydromassagebathtub
8Sea-farming for sea water convey
8Weak corrosive liquid(weak acid and weak) without solid granules. Liquid temperature: +5~60℃

Features
8There are Eurpean type and Northern American type based on various courntry and areas usage.
8The wet and (pump housing, pump cover impeller) is made by high reinforce  engineering plastic. Durable mechanical seal.
8Pump apply for low noise standrad motor to eliminate noise of high frequency. In conformity with hyromassage bathtub usage request.
8Single-phase with thermal protector from TI
8Pump meet the safty standrad of 3C, TUV, CE, UL, ETL. Detail is be inquired according to instruction of this manual.


Option information:
8Bathtub's size/the number of nozzle/request flow/pressure etc.
8Applied region's voltage and frequency.
8Applied region's request for safety certificate.
8Request for fitting size.
8Type of plug.


Working conditions:
8Liquid temperature: 5-60℃ clean water.
8Environment temperature: ≤50℃.
8Max. operating pressure: 0.3Mpa

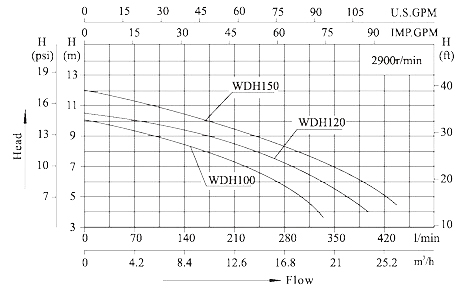

Performance curves:

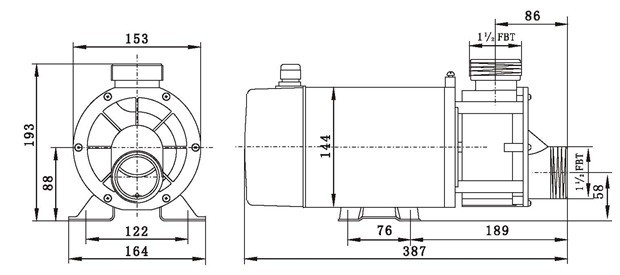

Shape and size of Installation:

Technical parameter list:
