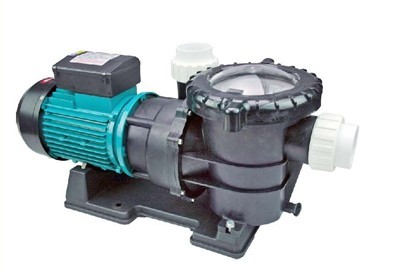

SP SWIMMING POOL PUMP

Application:

Bathtub, mini swimming pool, jetted bathtub, filteration, washing. Water processing system, circulation system and filter system

Features

8There are Eurpean type and Northern American type based on various courntry and areas usage.
8The wet and (pump housing, pump cover impeller) is made by high reinforce  engineering plastic. Durable mechanical seal.
8Pump apply for low noise standrad motor to eliminate noise of high frequency. In conformity with hyromassage bathtub usage request.
8Single-phase with thermal protector from TI
8Pump meet the safty standrad of 3C, TUV, CE, UL, ETL. Detail is be inquired according to instruction of this manual.


Option information:

8Refer to the flow and pressure, pump performance curve. The pump should run on the high-efficiency range.
8It should has backwashing function, the pressure of the pump should match the equipment requirement.
8Self-priming function should be considered when the pump is installed above the water level.


Working conditions:

8Liquid temperature: 5-60℃ clean water.
8Environment temperature: ≤50℃.
8Max. operating pressure: 0.3Mpa

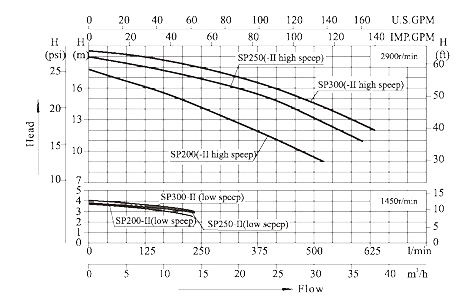

Performance curves:

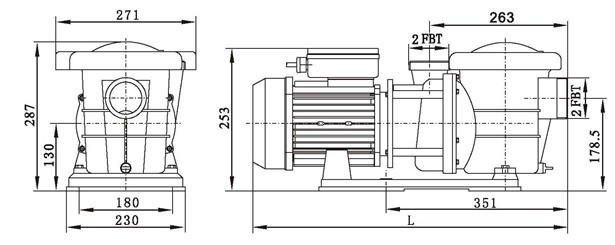

Shape and size of Installation:

Technical parameter list:
