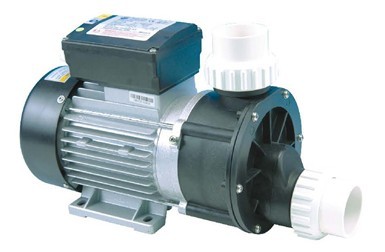

JA HYDROMASSAGE BATHTUB PUMP

Application:
8Hydromassagebathtub
8Sea-farming for sea water convey
8Weak corrosive liquid(weak acid and weak) without solid granules. Liquid temperature: +5~60℃

Features
8There are Eurpean type and Northern American type based on various courntry and areas usage.
8The wet and (pump housing, pump cover impeller) is made by high reinforce  engineering plastic. Durable mechanical seal.

8Pump apply for low noise standrad motor to eliminate noise of high frequency. In conformity with hyromassage bathtub usage request.
8Single-phase with thermal protector from TI
8Pump meet the safty standrad of 3C, TUV, CE, UL, ETL. Detail is be inquired according to instruction of this manual.


Option information:
8Bathtub's size/the number of nozzle/request flow/pressure etc.
8Applied region's voltage and frequency.
8Applied region's request for safety certificate.
8Request for fitting size.
8Type of plug.


Working conditions:
8Liquid temperature: 5-60℃ clean water.
8Environment temperature: ≤50℃.
8Max. operating pressure: 0.3Mpa

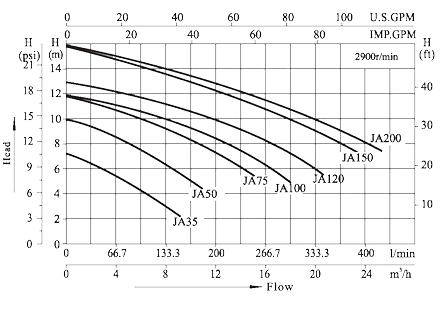

Performance curves:

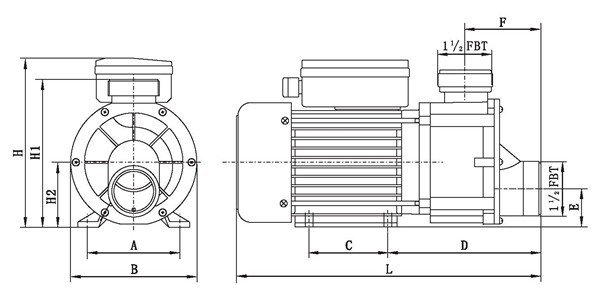

Shape and size of Installation:



Technical parameter list:

Model

Qmax

Hmax

V/Hz

Power(P1)

Amps

Shape size(mm)

Fitting size

Kg

Packing siza

Qty



(l/min)

(m)



kW

HP



A

B

C

D

E

F

L

H

H1

H2

(mm)



(cm)

20'

JA35

150

7.5

220-240/50

0.25

0.35

1.6

100

153

80

164

33

89

317

183

168

63

48.5or50

5.1

35x17.5x25

1893

JA50

180

10

220-240/50

0.37

0.5

2.0

100

153

80

164

33

89

317

183

168

63

48.5or50

5.9

35x17.5x25

1893

JA75

250

12

220-240/50

0.55

0.75

3.2

112

153

90

173

44

86

350

205

179

74

48.5or50

7.9

38x18x25

1695

JA100

300

12

220-240/50

0.75

1.0

3.8

112

153

90

173

44

86

350

205

179

74

48.5or50

8.6

38x18x25

1695

JA120

335

13

220-240/50

0.9

1.2

4.6

112

153

90

173

44

86

350

205

179

74

48.5or50

9.1

38x18x25

1695

JA150

380

16

220-240/50

1.1

1.5

5.8

125

186

90

215

38

120

402

220

201

90

48.5or50

11.5

43.5x22x27

1122

JA200

450

16

220-240/50

1.5

2.0

7.0

125

186

90

215

38

120

402

220

201

90

48.5or50

13

43.5x22x27

1122
