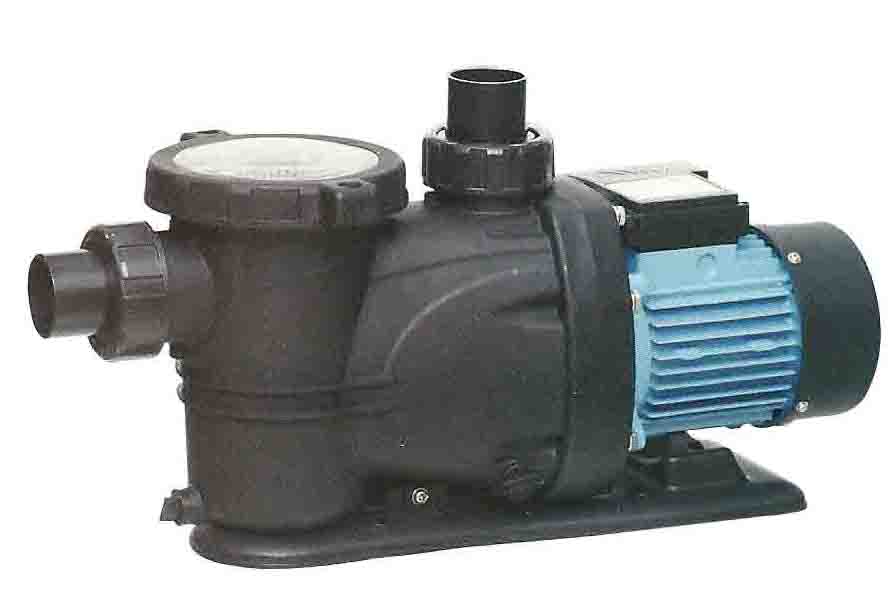

XKP SWIMMING POOL PUMPS


Application:

XKP series swimming pumps are self-priming centrifugal pomps(with filter)
8Hot springs
8Small and medium swimming pools.
8Water treatment system.
8Landscape fountains.
8Light industries.

Operating Limits:

8Max. fluid temperature from +5℃~50℃
8Max. ambient temperature up to 50℃
8Max. working pressure: 3.0Bar

Material:

8Pump body,pump foot and diffuser in glass loaded Polypropilen
8Impeller in glass loaded Noryl
8Shaft in stainless steel
8Mechanical seal in graphite and ceramic
8Motor housing in aluminium

Motor:

82-pole induction motor
8Built-in thermal protection
8Insulation class B
8Protection IPX5
8Continuous duty

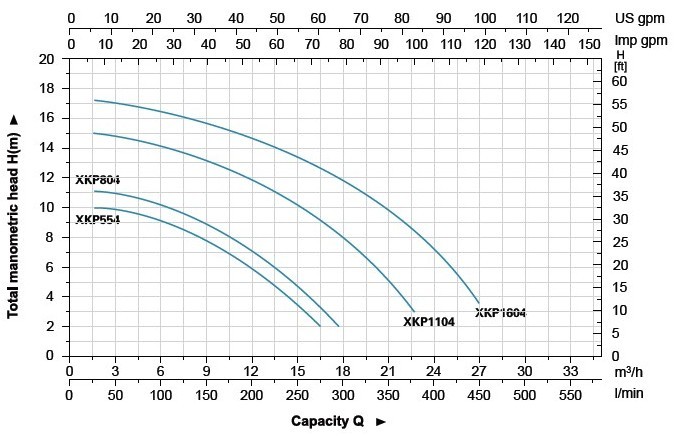

Hydraulic Performance Curve

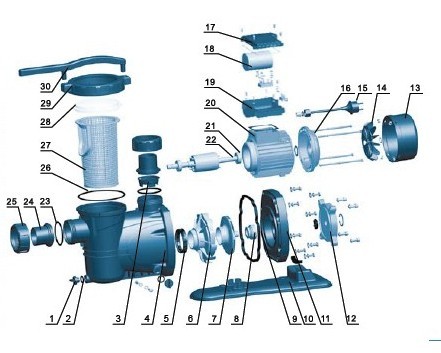

Materials Table



No.

Part

Material

No.

Part

Material

1

Drain plug

PP

16

End plate

ABS

2

O-ring

NBR

17

Capacitor cover



3

Valve body

PP

18

Capacitor

ABS

4

Pump body

PP

19

Capacitor box



5

O-ring

NBR

20

Stator



6

Dimuser

PP

21

Bearing



7

Impeller

PPO

22

Rotor



8

Mechanical seal

Carton/ceramic

23

O-ring

NBR

9

O-ring

NBR

24

Connector

PVC

10

Bottom board

PP

25

Nut

ABS

11

Plastic support

PP

26

O-ring

EPDM

12

Pump support

ZL 102

27

Sleve

PP

13

Fan cover

PP

28

Pump cover

PC

14

Fan

PP

29

Pump cover nut

PA6

15

Cable



30

Wrench

PP

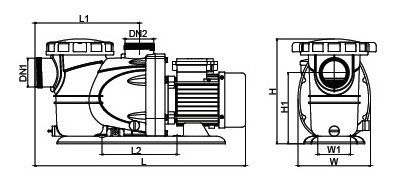

Dimension



Model

DN1

DN2

L

W

H

L1

L2

H1

(mm)

(mm)

(mm)

(mm)

(mm)

(mm)

XKP554

63

63

553

190

278

274

197

187

XKP904

553

190

278

274

197

187

XKP1104

553

190

278

274

197

187

XKP1604

553

190

278

274

197

187

Technical Data

MODEL

POWER

Q(m3/h)

3

6

9

12

15

18

21

24

27

30

W

Q(l/min)

50

100

150

200

250

300

350

400

450

500

XKP554

600

H(m)

9.7

9

8

6

3.2

0.5



XKP904

900

10.8

10.3

8.8

7

4.5

1.5



XKP1104

1100

14.8

14.2

13.2

12

10.3

8

4.8



XKP1604

1600

16.8

16.3

15.5

14.5

13.5

12

9.6

7

3.5
