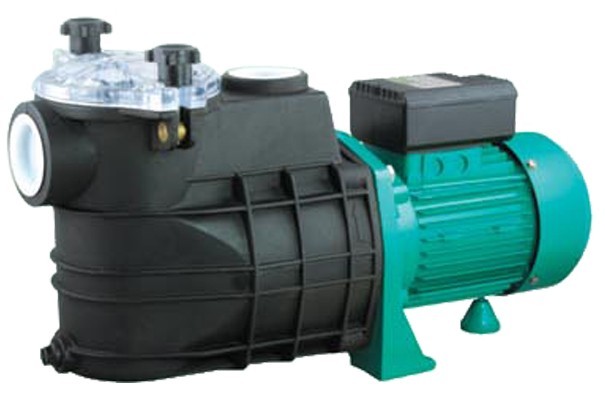

FCP2 Swimming Pool Pump

The working principle of the swimming pool water pumps and the completing device is as below:

8Both water and filth are sucked into the suction-disk;
8Then go into the pump to be roughly filthered to get rid of large grained dirts such as leaves;
8Then go into the filter tank through the transport flexible tube to be fine filtered;
8The clean water via filtering goes back to the pool, thus the filtering is finished.

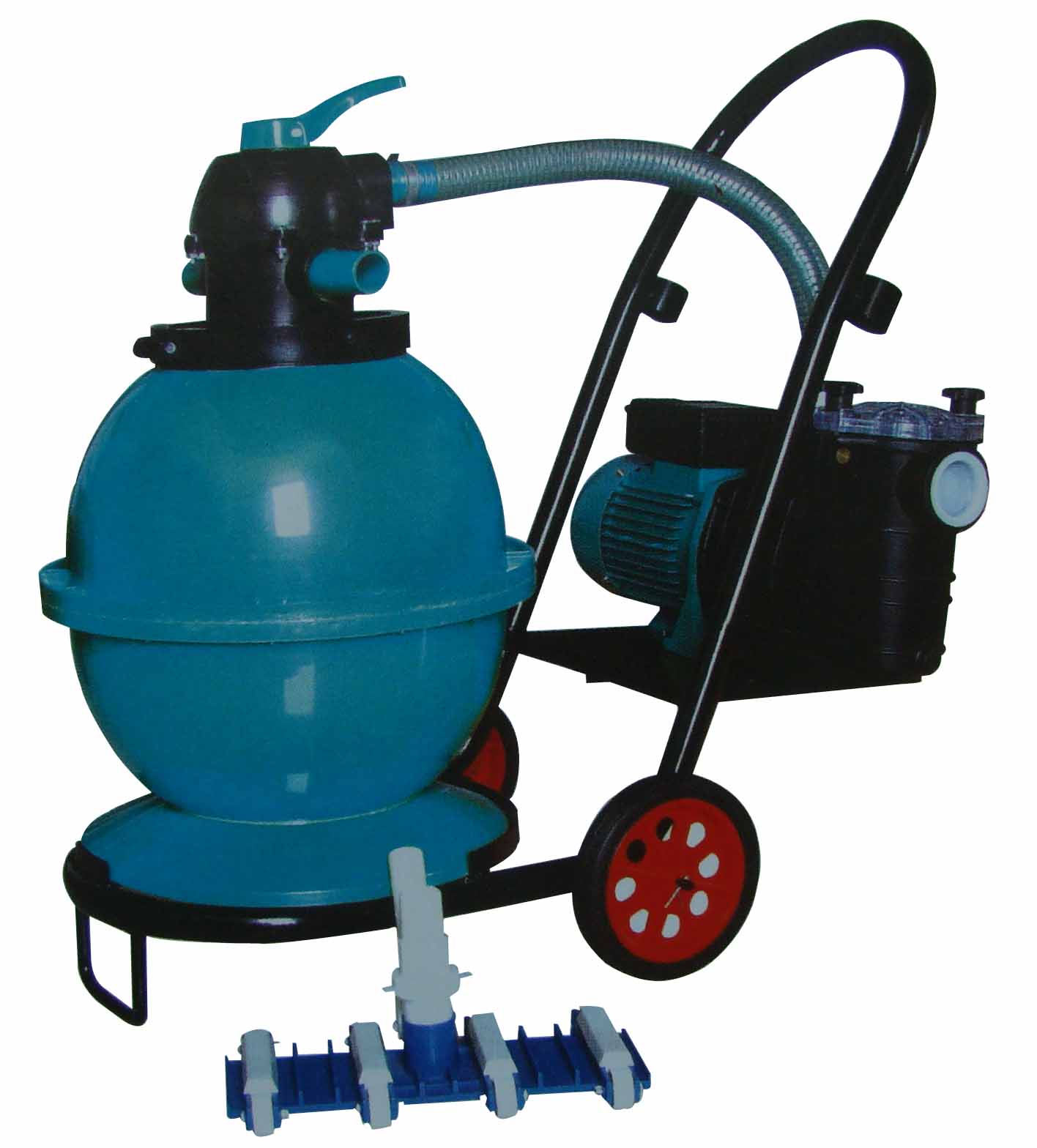

This set of equipment has an advantage in the unnecessity to change the pool water, only periodically use it to clean and fillter and the operation becomes facilitied with the hand truck use. It is powerfully competitive in the world market due to its convenient movement and superior performance. It can also be used for the cold-hot circulation system of sauna.

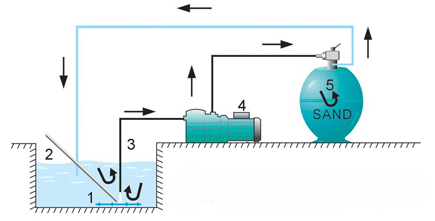

Schematic diagram of working of the swimming pool pump:

1:Suction-disk   2:Long handle   3:Flexible tube   4:Water pump   5:Filter drum

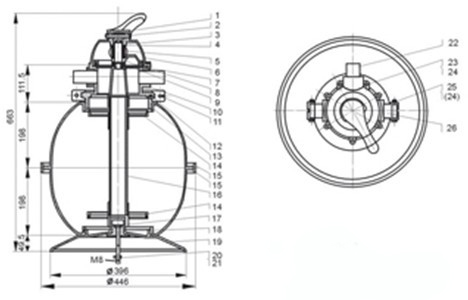

STRUCTURAL SCHEMATIC DIAGRAM OF THE FILTER DRUM:

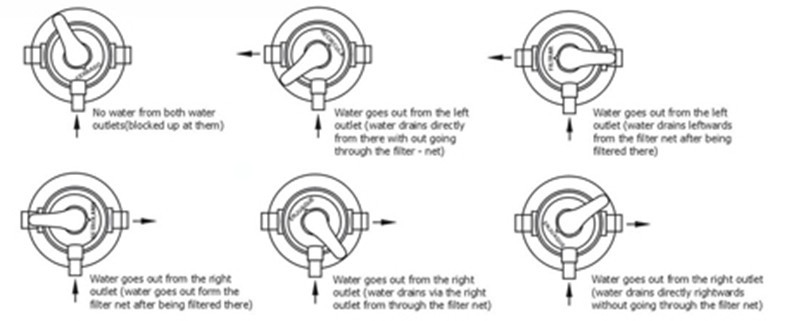

SCHEMAATIC DIAGRAM OF OPERATION OF THE FILTER DRUM
