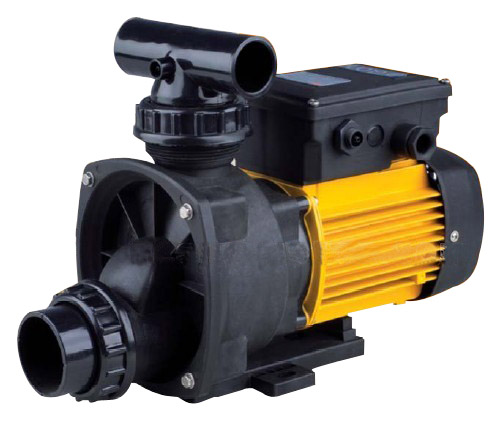

BTP SWIMMING POOL PUMP


Applications:
Compact hydromassage units

Materials:
Suction and discharge mountings in polypropilen.
Motor shaft in stainless steel AISI-420.
Impeller in polypropilen.
Mechanical seal in graphite and steatite.
Motor housing in aluminium L-2521.
Windings impregnated with epoxy resin.

Motor:
Asynchronous, two poles.
IP 55 protection.
Class F insulation.
Continuous operation.
Built-in thermal protection.

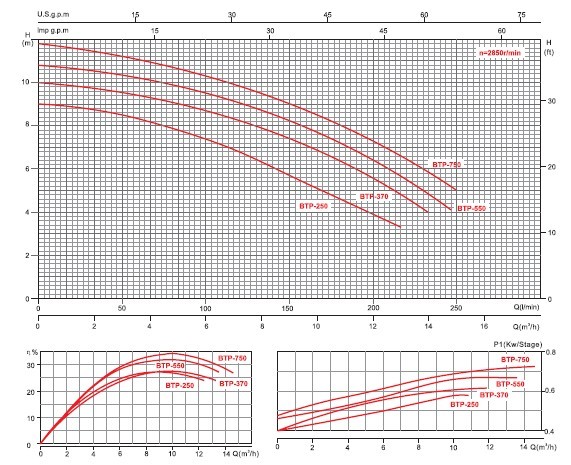

Performance curves:

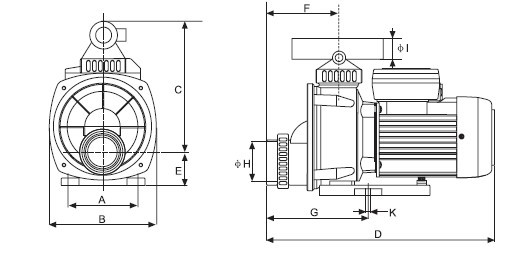

Shape and size of Installation:



Dimensions:



A

B

C

D

E

F

G

H

I

K

Kg

BTP-250

105

155

210

357

47

125

167

Φ  50

Φ  32

2- Φ  9

4.1

BTP-370

105

155

210

357

47

125

167

Φ  50

Φ  32

2- Φ  9

4.4

BTP-550

105

155

210

357

47

125

167

Φ  50

Φ  32

2- Φ  9

5.4

BTP-750

105

155

210

357

47

125

167

Φ  50

Φ  32

2- Φ  9

6.5

BTP-1100

124

187

280

427

50

157

120

Φ  50

Φ  32

4- Φ  9

9.1

BTP-1500

124

187

280

427

50

157

120

Φ  50

Φ  32

4- Φ  9

10



Technical parameter list



Model

HP

KW

V

A

P1(KW)

Q

L/min

0

50

100

150

175

200

250

1 phase

3 phase

1 phase

3 phase

m3/h

0

3

6

9

10.5

12

15

50HZ

50HZ

220

380

1 phase

3 phase



BTP-250

0.33

0.25

220



3.3



0.5



H(m)

9

8.5

7.5

5.7

4.7

3.9



BTP-370

0.5

0.37

220



2.9



0.65

10

9.6

8.3

7.1

5.8

5



BTP-550

0.75

0.55

220



3.2



0.71

10.8

10.5

9.8

8.3

7.4

6.4

4.2

BTP-750

1

0.75

220



3.7



0.85

11.8

11.3

10.8

9.2

8.2

7.1

5.1



Model

HP

KW

V

A

P1(KW)

Q

L/min

0

83

133

183

233

283

333

1 phase

3 phase

1 phase

3 phase

m3/h

0

5

8

11

14

17

20

50HZ

50HZ

220

380

1 phase

3 phase



BTP-1100

1.5

1.1

220



5.2



1.4



H(m)

14.5

12.3

11.2

10.1

8.9

7.0



BTP-1500

2

1.5

220



6.2



1.8

15.7

14.8

13

12.1

10.9

9.3

7.5
