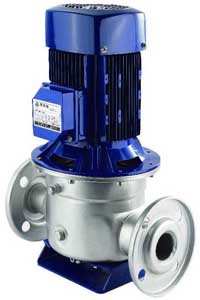

GD INLINE STAINLESS STEEL CENTRIFUGAL PUMP

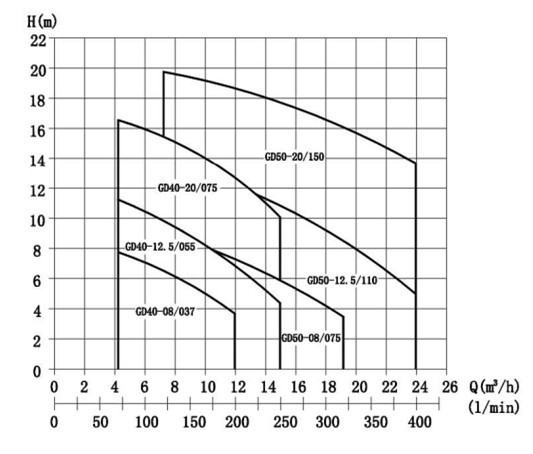

RANGE OF PERFORANCE:
>>Flow rate up to 400l/min (24m3/h)
>>Head up to 20m

LIMITS OF USE:
>>Maximum working pressure: 10bar
>>Liquid temperature from -15℃ up to +80℃
>>Environment temperature +40℃

APPLICATIONS
>>Water supply systems
>>Pressure boiler feeding
>>Pure water treating system
>>Refining chemical industries
>>Washing and sprinkling

STRUCTURE CHARACTERISTICS
>>304 stainless steel pump body
>>304 stainless steel pump body coner
>>304 stainless steel impeller
>>304 stainless steel shaft
>>Mechanical seal: Carbon/SIC/NBR
>>Aluminum motor casing
>>Protection IP54 for single phase, IP55 for three phase. Insulation class F
>>With thermal overload protector in single phase motor
>>NSK bearing

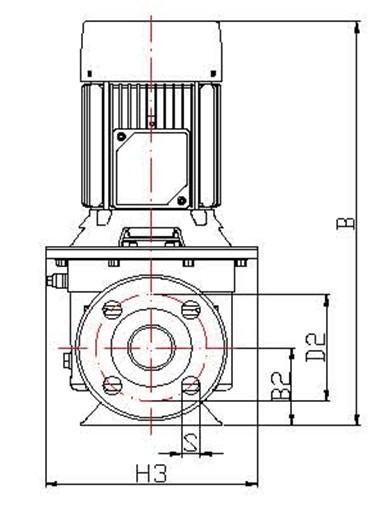

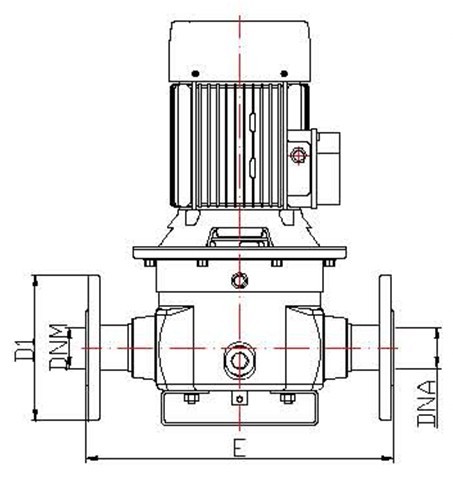

Model Dimensions(m)
E B B2 H3 DNA DNM D1 D2 S
GD40/037 305 415 80 210 40 40 150 125 18
GD40/055 305 415 80 210 40 40 150 125 18
GD40/075 305 415 80 210 40 40 150 125 18
GD40/090 305 415 80 210 40 40 150 125 18
GD50/055 310 455 87.5 210 50 50 165 125 18
GD50/075 310 455 87.5 210 50 50 165 125 18
GD50/110 310 455 87.5 210 50 50 165 125 18
GD50/150 310 455 87.5 210 50 50 165 125 18



WARRANTY: 1 YEAR (according to our general sales conditions)

Model

Power

Q=Capacity

Single phase
220V/50Hz

(A)

Three phase
380V/50Hz

(A)

l/min

70

100

120

150

200

250

320

400

kW

HP

m3/h

4.2

6

7.2

9

12

15

19.2

24



GD40/037D

2.26

GD40/037

0.95

0.37

0.5

  H(m)

9.5

9

8

7

5



GD40/055D

3.35

GD40/055

1.28

0.55

0.75

14

13

12.5

11.5

9

6.5



GD40/075D

4.45

GD40/075

1.88

0.75

1.0

17.5

16.5

16

15.5

13.5

11



GD40/090D

5.40

GD40/090

2.12

0.90

1.2

20.5

19.5

19

18.5

17

14

8



GD50/055D

3.35

GD50/055

1.28

0.55

0.75



10.5

10

9

7

4.5



GD50/075D

4.45

GD50/075

1.88

0.75

1.0



13.5

13

12

10.5

8



GD50/110D

6.24

GD50/110

2.48

1.1

1.5



17.5

17

16

14.5

12

9

GD50/150D

8.80

GD50/150

3.12

1.5

2.0



20.5

20

19

17.5

15.5

12.5
