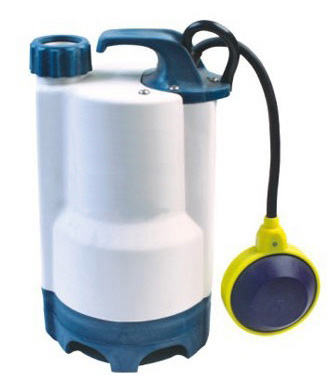

VP MODEL SUBMERSIBLE SEWAGE PUMP

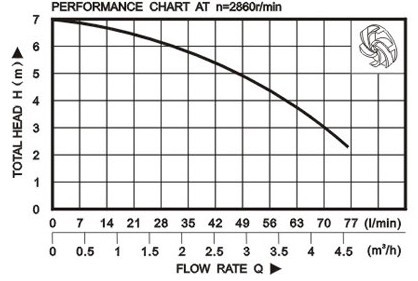

RANGE OF PERFORMANCE
8Flow rate: up to 75  L/min (4.5 m3/h)
8Head: up to 7 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8 Maximum Passage for suspended solids: 20mm

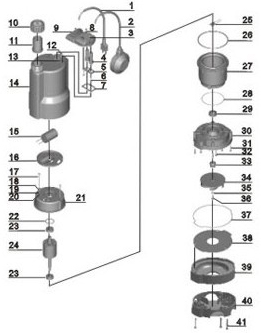

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Cable 13 "O" ring 25 Thermal protector 37 Seal ring
2 Float switch 14 Motor shell 26 "O" ring 38 Pump cover
3 Screw 15 Capacitor 27 Stator 39 Pump casing
4 Cable protector 16 Capacitor holder 28 "O" ring 40 Base plate
5 Flange 17 Screw 29 Oil seal 41 Screw
6 Screw 18 Screw 30 Connection part 42
7 Rubber washer 19 Stretching washer 31 Screw 43
8 Screw 20 Washer 32 Screw 44
9 Handle 21 Motor cover 33 Mechanical seal 45
10 Connection nut 22 Undulated washer 34 Impeller 46
11 Out-let connector 23 Bearing 35 Washer 47
12 Screw 24 Rotor 36 Bolt 48





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

Voltage
Max.Diameter of
G.W
PACKING DIMENSION
(Kw)
(m)
(L/min)
(mm)

(V/Hz)
(mm)
(K.g)
(cm)
VP-370F
0.37
7
75
32

220/50
20
5.3
20X19X33

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
