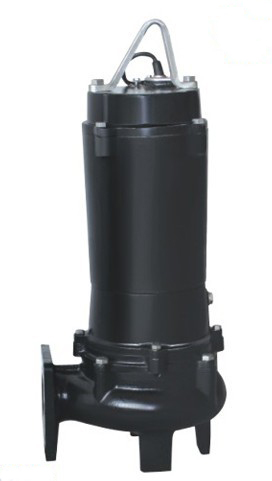

KPZ MODEL SUBMERSIBLE SEWAGE PUMP

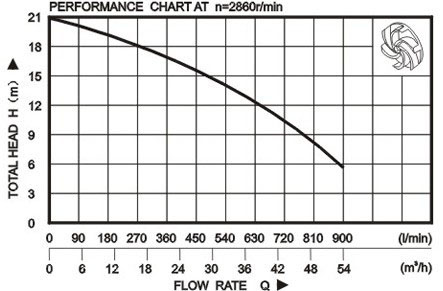

RANGE OF PERFORMANCE
8Flow rate: up to 900 L/min (54  m3/h)
8Head: up to 21 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8 Maximum Passage for suspended solids: 30mm

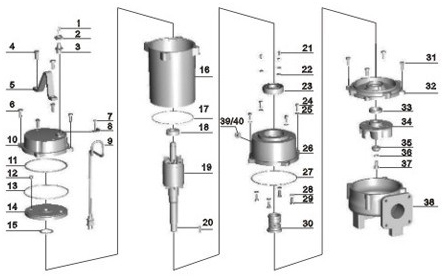

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Screw 13 "O" ring 25 Washer 37 Screw
2 Flange 14 Cover 26 Connection part 38 Pump body
3 Cable protector 15 Undulated washer 27 "O" ring 39 "O" ring
4 Bolt 16 Stator 28 Rubber washer 40 Bolt
5 Handle 17 "O" ring 29 Bolt 41
6 Bolt 18 Bearing 30 Mechanical seal 42
7 Bolt 19 Rotor 31 Bolt 43
8 Cable presser 20 Key 32 Oil chamber cover 44
9 Cable 21 Bolt 33 Oil seal 45
10 Capacitor cover 22 Washer 34 Impeller 46
11 Rubber washer 23 Bearing 35 Shaft sleeve 47
12 Line protector 24 Bolt 36 Spring washer 48





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

Voltage
Max.Diameter of
G.W
PACKING DIMENSION

20"QUANTITY

(Kw)
(m)
(L/min)
(mm)

(V/Hz)
(mm)
(K.g)
(cm)

 pcs

KPZ3000
3
21
900
75

380/50
30
50
70X36X27

 420

8Three-phase 220/380V-50Hz (60hz), are available on request.
