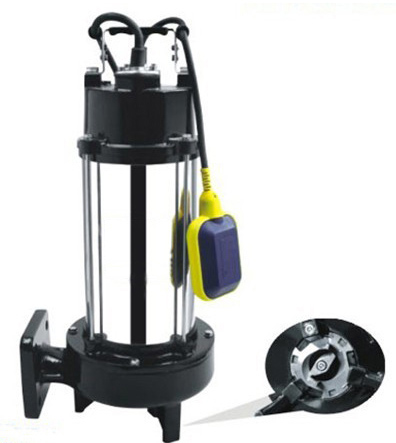

WQ MODEL SUBMERSIBLE SEWAGE PUMP

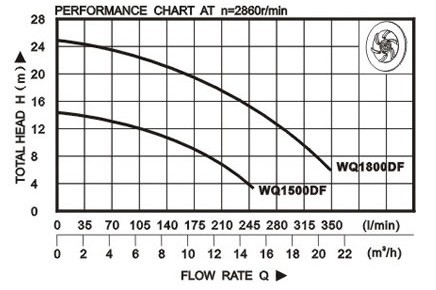

RANGE OF PERFORMANCE
8Flow rate: up to 350 L/min (21 m3/h)
8Head: up to 25m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8 Maximum Passage for suspended solids: 15mm

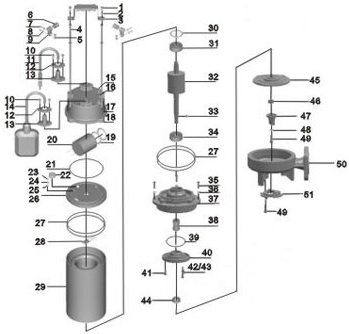

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 "O" ring 31 Bearing 46 Word ring
2 Washer 17 Streching washer 32 Rotor 47 Rotation cutter
3 Handle 18 Capacitor cover 33 Key 48 Streching washer
4 Bolt 19 "O" ring 34 Bearing 49 Screw
5 Nut 20 Capacitor 35 Bolt 50 Pump body
6 Protector 21 "O" ring 36 Washer 51 Fixed cutter
7 Screw 22 Line protector 37 Connection part
8 Washer 23 Screw 38 Mechanical seal
9 Cable presser 24 Streching washer 39 "O" ring
10 Screw 25 Washer 40 Oil chamber cover
11 Cable 26 Motor cover 41 Screw
12 Flange 27 "O" ring 42 Screw
13 Cable protector 28 Thermal protector 43 "O" ring
14 Float switch 29 Stator 44 Oil seal
15 Bolt 30 Undulated washer 45 Impeller



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

Voltage/Frequency
G.W
PACKING DIMENSION

20"QUANTITY

(Kw)
(m)
(L/min)
(mm)

(V/Hz)
(K.g)
(cm)

 pcs

WQ1500DF
1.5
14.5
250
50

220/50
31.5
59X35.5X25

540

WQ1800DF
1.8
25
350
50

220/50
38
59X35.5X25

 540

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
