    Home > Products > Garden pump > Submersible Pump

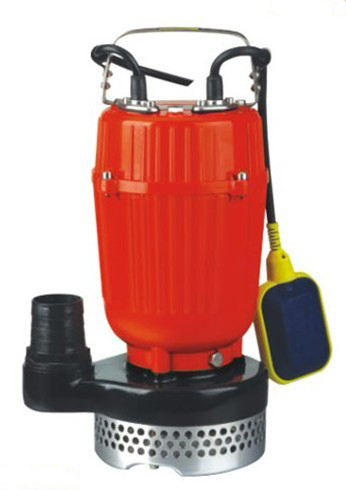

SPA MODEL STANDING SUBMERSIBLE PUMP
RANGE OF PERFORMANCE
8Flow rate up to 666 L/min (40 m3/h)
8Head up to12 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8 Maximum Passage for suspended solids: 2mm





N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 13 Bolt 25 Line protector 37 "O" ring
2 Protector 14 "O" ring 26 Motor cover 38 Pump body
3 Screw 15 Capacitor cover 27 Undulated washer 39 Screw
4 Washer 16 Screw 28 Bearing 40 Oil seal
5 Cable presser 17 Washer 29 Rotor 41 Impeller
6 Screw 18 "O" ring 30 Key 42 Washer
7 Flange 19 Capacitor 31 Bearing 43 Nut
8 Cable protector 20 "O" ring 32 Thermal protector 44 Pump cover
9 Float switch 21 Screw 33 Stator 45 Nut
10 Bolt 22 Stretching washer 34 Mechanical seal 46 Bilateral bolt
11 Washer 23 Washer 35 "O" ring 47 Filter mesh
12 Cable 24 Screw 36 Out-let connector 48 Nut

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

Voltage/Frequency
G.W
PACKING DIMENSION
(Kw)
(m)
(L/min)
(mm)

(V/Hz)
(K.g)
(cm)
SPA-250F
0.25
8
130
40

220/50
7.5
20.5X18.5X32.5
SPA-370F
0.37
9
216
50

220/50
12.5
25X22X41.5
SPA-550F
0.55
10
260
50

220/50
13.5
24.5X22X40
SPA-750F
0.75
12
333
50

220/50
15.0
27.5X23.5X41.5
SPA-1100F
1.1
9
666
75

220/50
21
32.5X22.5X48.5
8220V/50Hz , 240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
