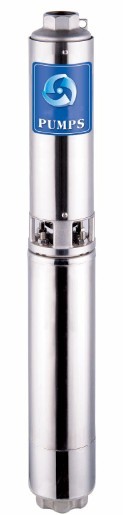

4'' (4ST-60) SUBMERSIBLE PUMP

4" encapsulated 3-wire capacitor single phase motor
Water lubricated radial and thrust bearings
Removable “Water bloc” lead connector
Plastic Floating Impeller offers superior performance and exceptional resistance to abrasives,
due to the floating stack design.

-Pump:

8Qmax: up to 16 (m3/h)
8Power range from 2.0 to 10 (HP)
8Total head:  up  to 188 (m)

-MOTOR:

8Water lubricated encapsulated motor (rewindable).
8Adopted the NEMA standard.
8Power: 1.5 to 7.5 KW (1 phase)
8Insulation class : F
8Protection grade: IP 68
8Maximum diameter : Φ95mm
8Highest temperature of liquid : 35 ℃

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

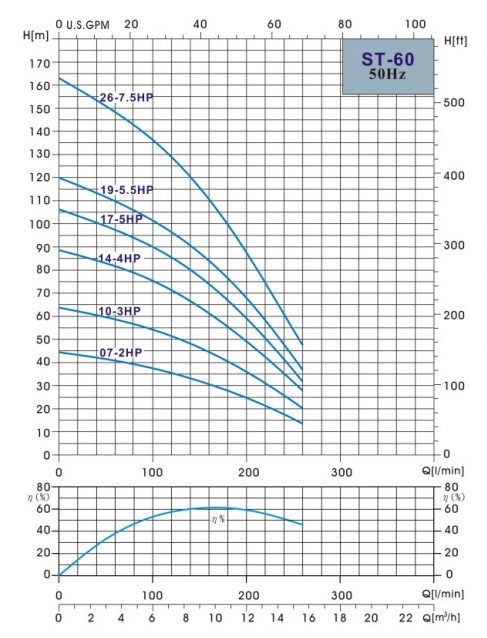

                                                         Performance Curves

WARRANTY: 1 YEAR (according to our general sales conditions)

PUMP MODEL

STAGE

 MOTPR

 Q(n=2850r/min)

hp

kw

m3/h

0

6.0

7.2

8.4

9.6

10.8

12

13

14.4

16

PUMP

L/min

0

100

120

140

160

180

200

220

240

260

Dia.

Weught

gpm

0

26

32

37

42

48

53

58

63

69

(mm)

(kg)

4ST-6007



2.0

1.5

H(m)

45

37

36

33

31

28

25

22

18

14





4ST-6010



3.0

2.2

64

54

52

48

44

41

36

32

26

20





4ST-6014



4.0

3.0

89

76

72

67

56

56

49

43

35

28





4ST-6019



5.5

4.0

120

102

97

91

76

76

68

58

48

37





4ST-6026



7.5

5.5

163

136

129

120

111

100

87

75

61

48





4ST-6035



10

7.5

221

188

179

168

164

140

125

107

88

68
