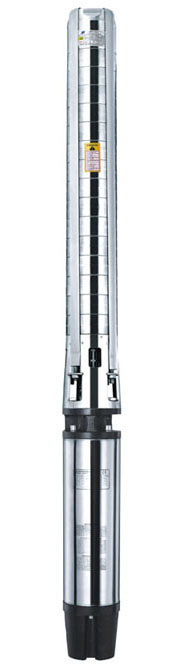

6" (6SP) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

-Typical applications:

8Water supply system
8Booster
8Garden and fram irrigation
8Lowering underground water level
8Various industrial applications

-Working conditions:

8Dilute and clean non-corrosive liquid which dose not contain solid grains or fibers.
8The pump shoule be running under the performance range of the thick curves to
prevent the motor from overheating due to lower capacity or overloading due to high capacity.

-MOTOR:

8Rewindable oil-filled moter.
8Qmax ：40 (m3/h) -6SP30/ 65 (m3/h)-6SP46/ 75 (m3/h) -6SP60
8Adopted the NEMA standard.
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ144mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 6''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: stainless steel
8Diffuser: stainless steel
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

STAGE

Motor Power

Capacity and head

DIMENSION

380-415V~50HZ

(Kw)

(Hp)

L/min

0

267

333

400

500

600

667

767

833

900

1000

1167

Length

Weight

3 Phase

m3/h

0

16

20

24

30

36

40

46

50

54

60

70

mm

kg

6SP3005-5.5T

5

5.5

7.5

Head(m)

57

50

46

43

36

26



1460

49

6SP3007-7.5T

7

7.5

10

79

70

65

60

51

37



1707

53

6SP3009-9.2T

9

9.2

12.5

102

90

83

77

65

47



1959

62

6SP3012-11T

12

11

15

136

120

111

102

87

63



2272

70

6SP3014-13T

14

13

17.5

159

140

130

119

102

74



2529

76

6SP3016-15T

16

15

20

181

160

148

136

116

84



2746

84

6SP3018-18.5T

18

18.5

15

204

180

167

153

131

95



3023

93


6SP4603-5.5T

3

5.5

7.5

38



34

32



25



19

15



1317

47

6SP4605-7.5T

5

7.5

10

64



56

53



41



32

24



1486

54

6SP4606-9.2T

6

9.2

12.5

76



67

64



49



38

29



1636

62

6SP4607-11T

7

11

15

89



79

74



58



45

34



1751

68

6SP4608-13T

8

13

17.5

102



90

85



66



51

39



1906

73

6SP4610-15T

10

15

20

127



112

106



82



64

49



2111

82

6SP4612-18.5T

12

18.5

25

150



135

127



99



77

59



2376

93


6SP6003-5.5T

9

5.5

7.5

42



34



30



27



22

17

1323

48

6SP6004-7.5T

4

7.5

10

55



45



39



35



29

22

1491

52

6SP6005-9.2T

5

9.2

12.5

69



57



49



44



37

28

1664

60

6SP6006-11T

6

11

15

83



68



59



53



44

33

1802

66

6SP6007-13T

7

13

17.5

97



79



69



62



51

39

1980

71

6SP6008-15T

8

15

20

111



91



79



71



59

44

2118

78

6SP6009-18.5T

9

18.5

25

125



102



89



80



66

50

2322

85

8Three-phase 220/380V-50Hz (60hz),  are available on request.
