    Home > Products > Garden pump > Submersible Pump

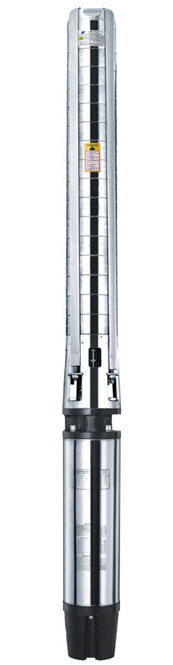

6" (6SP) SUBMERSIBLE BOREHOLE PUMP


TECHNICAL DATA:

-Typical applications:

8Water supply system
8Booster
8Garden and fram irrigation
8Lowering underground water level
8Various industrial application.

-Working conditions:

8Dilute and clean non-corrosive liquid which dose not contain solid grains or fibers.
8The pump shoule be running under the performance range of the thick curves to
prevent the motor from overheating due to lower capacity or overloading due to high capacity.

-MOTOR:

8Rewindable oil-filled moter.
8Qmax : 30 (m3/h)
8Adopted the NEMA standard.
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ144mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: stainless steel
8Diffuser: stainless steel
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

WARRANTY: 1 YEAR (according to our general sales conditions)

,

MODEL

STAGE

Motor Power

Capacity and head

DIMENSION

380-415V~50HZ

(Kw)

(Hp)

L/min

0

83

167

233

250

283

333

367

417

Length

Weight

3 Phase

m3/h

0

5

10

14

15

17

20

22

25

mm

kg

6SP1707-4.0S

7

4

5.5

Head(m)

75



69

61



56

49

33



1432

45

6SP1709-5.5S

9

5.5

7.5

97



81

79



72

63

43



1525

51

6SP1712-7.5S

12

7.5

10

129



108

105



96

84

57



1761

56

6SP1715-9.2S

15

9.2

12.5

162



134

132



120

105

72



2003

65

6SP1718-11.0S

18

11

15

194



161

158



144

126

86



2209

72

6SP1721-13.0S

21

13

17.5

226



188

184



168

147

100



2456

78

6SP1724-15.0S

24

15

20

259



215

211



192

168

115



2662

82

6SP1730-18.5S

31

18.5

25

323



297

263



240

210

143



2989

96






6SP2005-4.0S

5

4

5.5

70

68

62



50



37



25

1146

46

6SP2008-5.5S

8

5.5

7.5

111

108

98



81



59



39

1311

54

6SP2011-7.5S

11

7.5

10

153

149

135



111



81



54

1506

60

6SP2013-9.2S

13

9.2

12.5

181

176

160



131



96



64

1656

69

6SP2015-11.0S

15

11

15

209

203

185



152



111



74

1781

75

6SP2018-13.0S

18

13

17.5

250

243

221



183



133



88

1986

83

6SP20020-15S

20

15

20

278

270

246



204



148



98

2111

90

8Three-phase 220/380V-50Hz (60hz),  are available on request.
