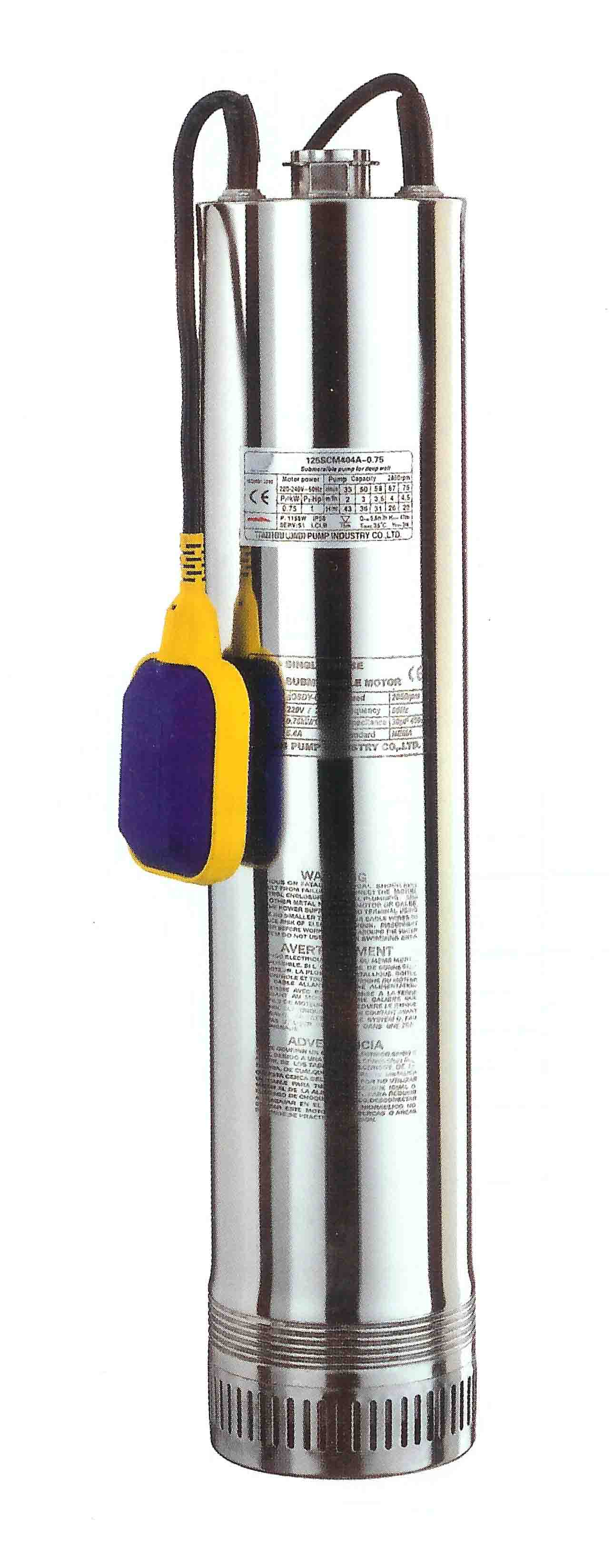

5" (125SC) SUBMERSIBLE BOREHOLE PUMP


TECHNICAL DATA:

-Pump:

8Qmax: 7.8 (m3/h)
8Capacity from 2 to 4 (m3/h)
8Total head from 75 to 13 (m)

-MOTOR:

8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Power: 0.55 to 1.5 KW (1 phase)
8Power : 1.1 to 1.5  KW (3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ126mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size more than 5''.

-Operating conditions:

8Water temperature up to 35℃.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 5''.

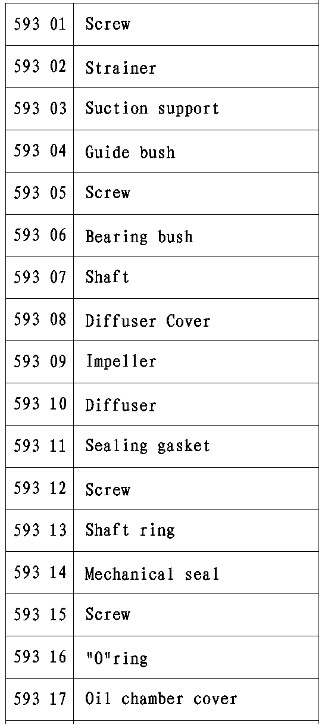

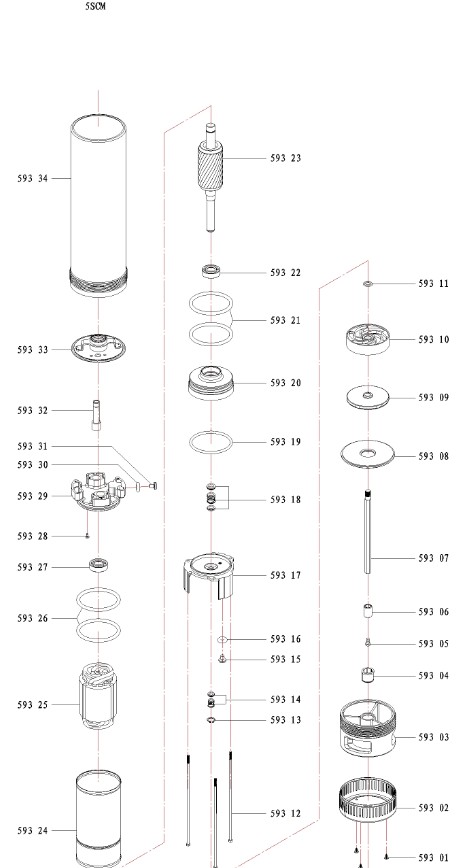

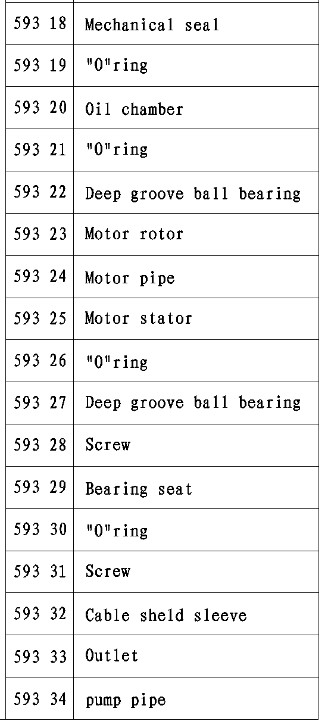

-Materials:
8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  stainless steel.
8Shaft: AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.































WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Stage

Motor Power

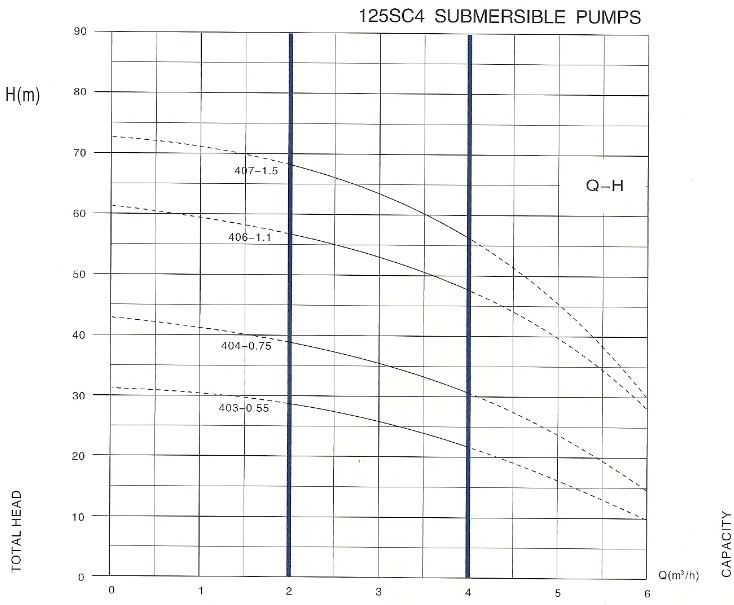

Capacity and head

Dimension

220-240V~50HZ

380-415V~50HZ

(Kw)

(Hp)

L/min

0

33

50

58

67

75

83

92

100

Length

Weight

1 Phase

3 Phase

m3/h

0

2

3

3.5

4

4.5

5

5.5

6

mm

kg

125SCM403-0.55


3

0.55

0.75

H (m)

32

28

27

25

23

21

19

15

13

464

16

125SCM404-0.75

4

0.75

1

43

38

36

34

31

28

25

19

17

510

18

125SCM405-0.9

5

0.9

1.2

 56

 50

48

 46

 43

 40

37

31

28

 560

19

125SCM406-1.1
125SC406-1.1
6

1

1.5

65

56

54

51

47

42

37

28

26

600

20

125SCM407-1.5
125SC407-1.5
7

1.5

2

75

66

63

59

54

49

44

37

30

656

22

8Three-phase 380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz & 127V/60Hz are available on request.
