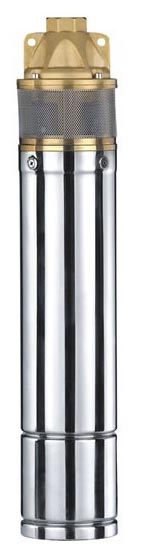

3" (3SKM) PERIPHERAL SUBMERSIBLE PUMP

TECHNICAL DATA:

-Pump:

8Qmax: 3 (m3/h)
8Capacity from 1 to 2 (m3/h)
8Total head from 57 to 9.5 (m)

-MOTOR:

8Rewindable oil-filled moter.
8Power: 0.75 to 1 HP (1 phase/3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ75mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 3''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: brass
8Diffuser: plastic (PC)
8Non-return valve: plastic  (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Impellers

Motor Power

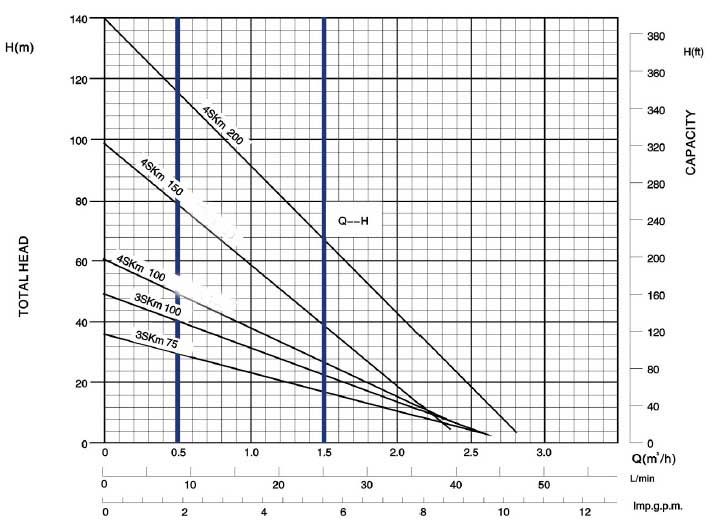

Capacity and head

Controller

DIMENSION

220-240V~50HZ

380-415V~50HZ

(Kw)

(Hp)

L/min

0

0.5

1

1.5

2

2.5

Current max.

Capacitor max.

Length

 Weight

1 Phase

3 Phase

m3/h

0

8.3

16.6

24.9

33.2

41.5

A

(uF)

mm

kg

lmp.g.m

0

1.8

3.6

5.4

7.2

9


3SKM75
3SK75

1

0.55

0.75

Head(m)

35

29

25

20

15

9.5

5

25

519

10.5

3SKM100
3SK100

1

0.75

1

57

48

40

32

25

17

6

30

589

12.1

8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz  are available on request.
