    Home > Products > Garden pump > Submersible Pump

6SR12-18  SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

-Pump(6SR12):

8Qmax: 19.8(m3/h)
8Capacity from 5 to 24.4(m3/h)
8Total head from 436 to 78 (m)

-Pump(6SR18):

8Qmax: 33(m3/h)
8Capacity from 5 to 33 (m3/h)
8Total head from 310 to 56 (m)

-MOTOR:

8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Power : 3 to 18.5  KW--(6SR12)/4 to 18.5--(6SR18) (3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ143 mm
8Highest temperature of liquid : 35 ℃
8International standard: IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 6''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.



WARRANTY: 1 YEAR (according to our general sales conditions)：

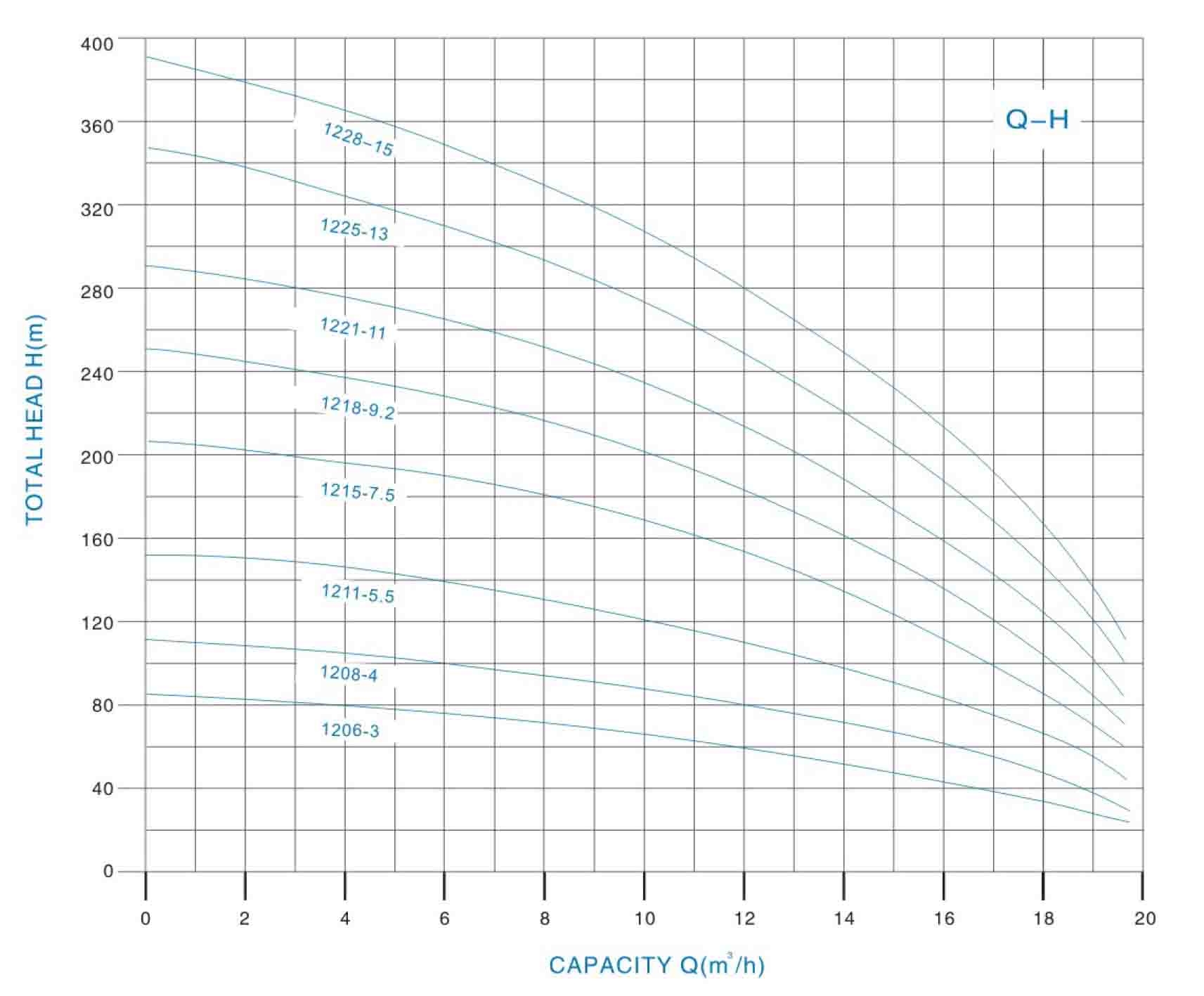

Type Motor
power		 Capacity and head Length
(mm)
220-240V～50Hz 380-415V～50Hz l/min 0 83 133 167 200 233 267 300 333 405
kW HP m3/h 0 5 8 10 12 14 16 18 20 24.4
6SRm1205-3 6SR1205-3 3 4 Head
(m)		 78 73 67 63 58 53 45 36 25 1 1208
6SRm1207-4 6SR1207-4 4 5.5 109 102 94 88 82 74 63 51 35 1 1318
6SRm1209-5.5 6SR1209-5.5 5.5 7.5 140 131 121 113 105 95 81 65 45 2 1435
--- 6SR1212-7.5 7.5 10 187 175 162 151 140 127 108 87 60 3 1648
--- 6SR1215-9.2 9.2 12.5 234 219 202 189 175 159 135 109 75 3 1779
--- 6SR1217-11 11 15 265 248 229 214 199 180 153 124 85 4 1899
--- 6SR1220-13 13 17.5 312 292 270 252 234 212 180 146 100 5 2103
--- 6SR1224-15 15 20 374 350 324 302 280 254 216 175 120 6 2324
--- 6SR1228-18.5 18.5 25 436 408 378 352 327 397 252 204 140 7 2565

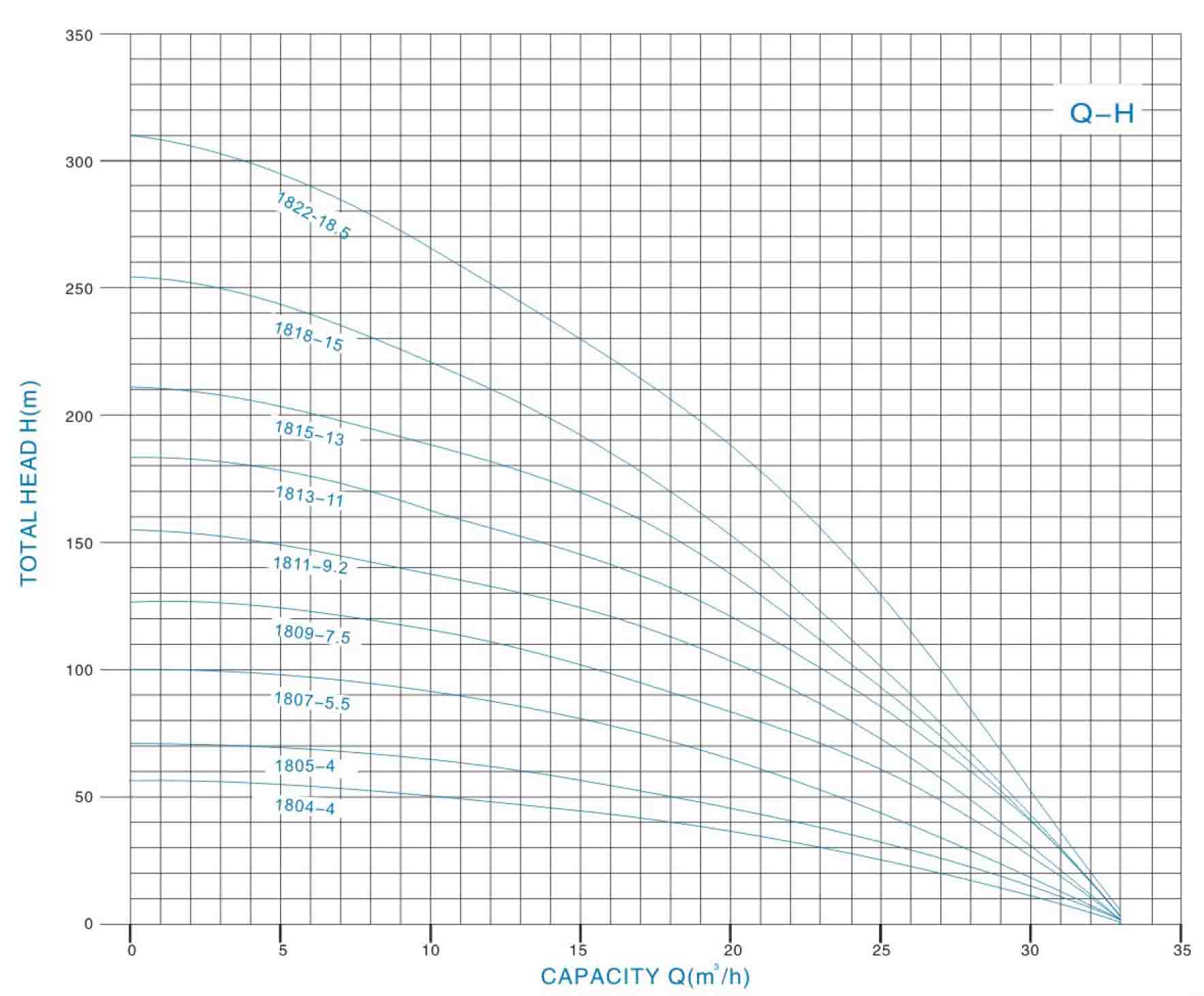

Type Motor
power		 Capacity and head Length
(mm)
220-240V～50HZ 280-415V～50Hz l/min 0 83 167 250 300 333 415 467 500 550
kW HP m3/h 0 5 10 15 18 20 25 28 30 33
 6SRm1804-3 6SR1804-3 3 4 Head
(m)		 56 54 51 46 41 38 26 17 11 1 1119
6SRm1805-4 6SR1805-4 4 5.5 71 69 63 57 52 46 32 21 13 2 1250
6SRm1807-5.5 6SR1807-5.5 5.5 7.5 100 96 88 80 72 66 46 30 18 2 1436
--- 6SR1809-7.5 7.5 10 127 123 114 103 94 82 61 41 28 2 1539
--- 6SR1811-9.2 9.2 12.5 155 152 138 130 112 103 73 46 30 2 1673
--- 6SR1813-11 11 15 184 177 163 148 134 122 84 52 39 3 1807
--- 6SR1815-13 13 17.5 212 204 188 170 153 138 91 60 39 3 2053
--- 6SR1818-15 15 20 254 238 220 196 181 153 101 72 43 3 2320
--- 6SR1822-18.5 18.5 25 310 300 176 248 201 201 134 88 48 4 2636

8Three-phase 220/380V-50Hz (60hz), is available on request.
