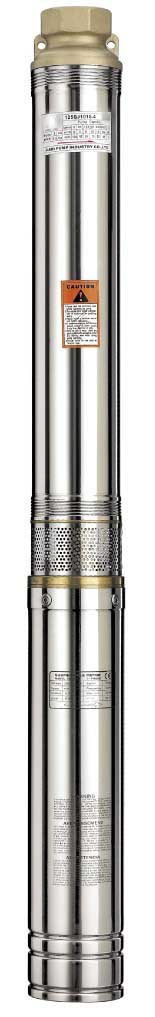

5" (125QJ-S) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

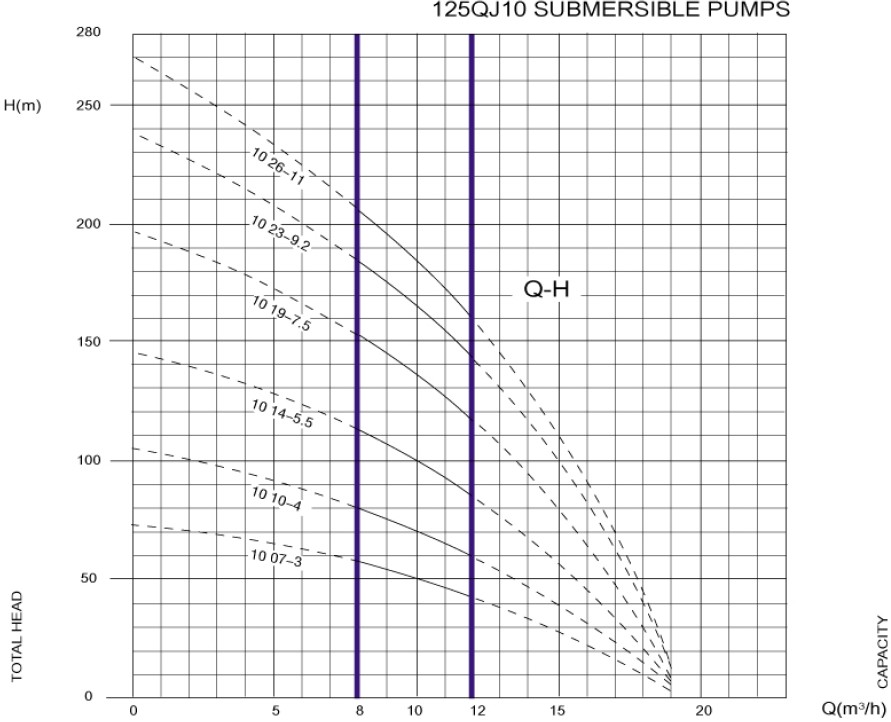

-Pump(125QJ10):

8Qmax: 20 (m3/h)
8Capacity from 8 to 12 (m3/h)
8Total head from 270 to 22 (m)

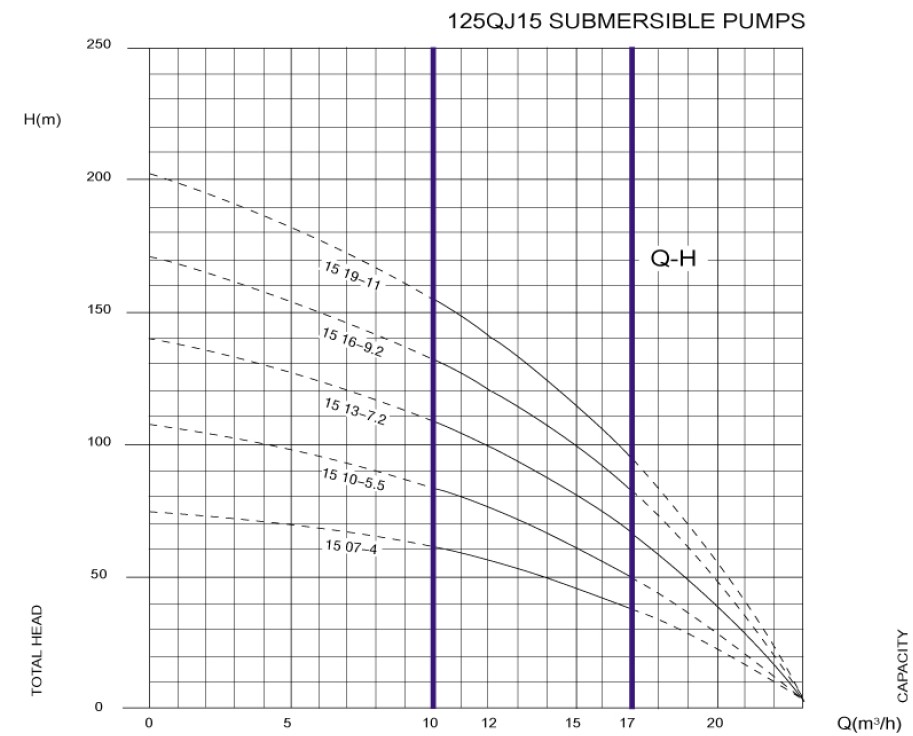

-Pump(125QJ15):

8Qmax: 23 (m3/h)
8Capacity from 12 to 17 (m3/h)
8Total head from 201 to 15 (m)

-MOTOR:

8Rewindable oil-filled moter.
8
Power: 2.2 to 4 KW (1 phase)
8Power: 3 to 11 KW (3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ125mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 5''.

8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic  (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.




WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

STAGE

Motor Power

Capacity and head

DIMENSION

220-240V~50HZ

380-415V~50HZ

(Kw)

(Hp)

L/min

0

83

133

167

200

250

283

317

Length

1 Phase

3 Phase

m3/h

0

5

8

10

12

15

17

19

mm

125QJ1005-2.2S


5

2.2

3

Head(m)

52

46

41

35

31

22



897

125QJ1007-3S
125QJ1007-3T

7

3

4

73

65

57

50

44

31



1065

125QJ1010-4S
125QJ1010-4T

10

4

5.5

104

93

81

70

62

45



1276


125QJ1014-5.5T

14

5.5

7.5

145

130

113

100

87

62



1500


125QJ1019-7.5T

19

7.5

10

197

176

154

135

118

85





1825



125QJ1023-9.2T

23

9.2

12.5

239

213

186

165

143

102





2040



125QJ1026-11T

26

11

15

270

240

210

185

160

115



2214


125QJ1504-2.2S


4

2.2
3
42

35

29
24
19
15
893

125QJ1505-3S

 125QJ1505-3T

5

4

 53



44



37

30

24

19

1024

125QJ1507-4S
125QJ1507-4T

7

4

5.5

73



65



55

45

39

31

1156


125QJ1510-5.5T

10

5.5

7.5

106



87



73

60

48

37

1401


125QJ1513-7.5T

13

7.5

10

138



116



98

80

67

52

1608


125QJ1516-9.2T

16

9.2

12.5

189



142



120

98

82

64

1798


125QJ1519-11T

19

11

15

201



169



143

115

98

76

2032

8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz  are available on request.
