    Home > Products > Garden pump > Submersible Pump

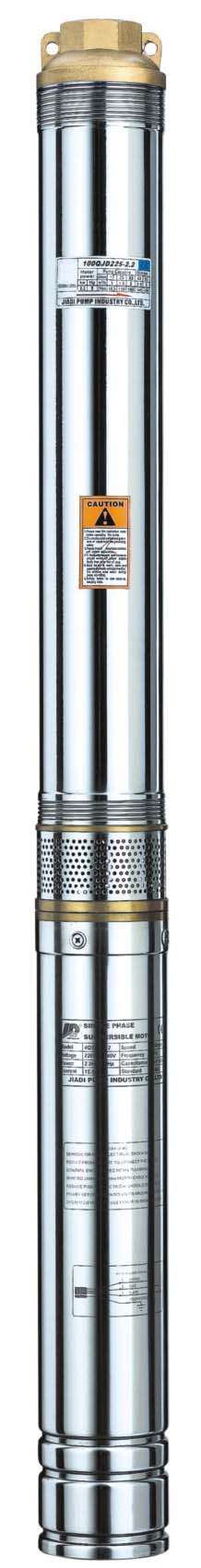

4" (100QJ-S) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

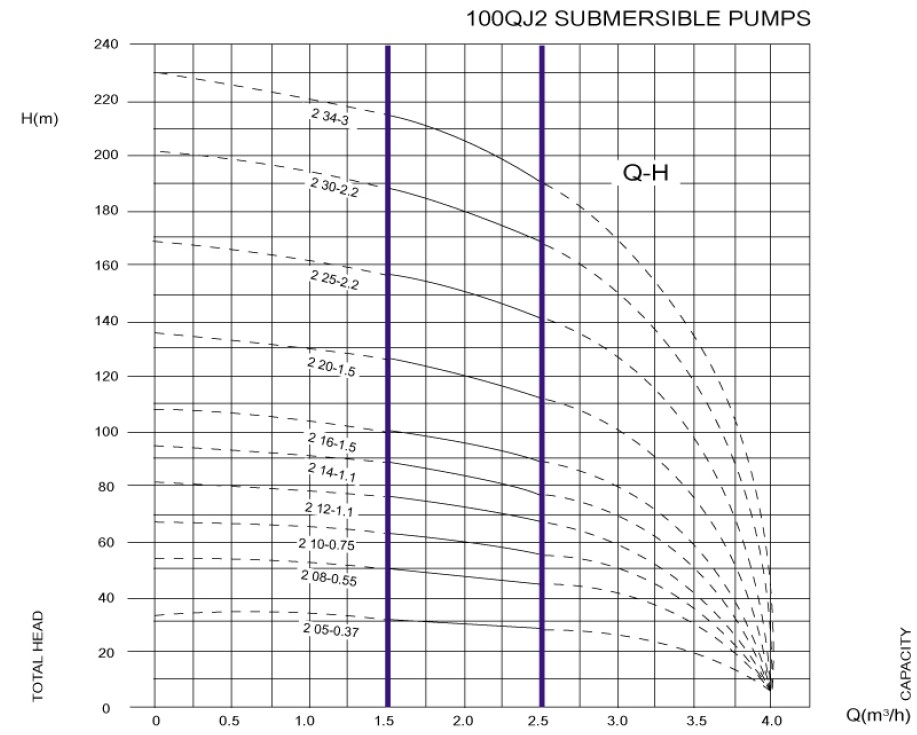

-Pump(100QJ2)

8Qmax: 4（m3/h)
8Capacity from 1.5 to 2.5 (m3/h)
8Total head from 202 to 25(m)

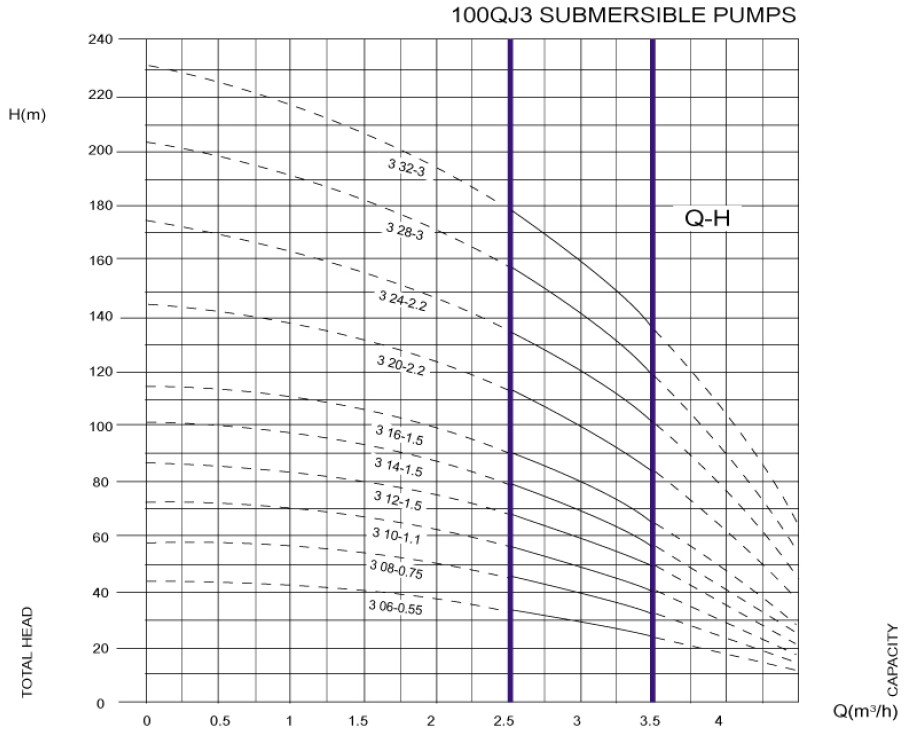

-Pump(100QJ3)

8Qmax: 5（m3/h)
8Capacity from 2.5 to 3.5 (m3/h)
8Total head from 173 to 21 (m)

-MOTOR

8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Power: 0.37 to 2.2 KW --(100QJ2)/0.55 to 2.2 kW--(100QJ3)    (1 phase)
8Power : 1.1 to 2.2 KW (3 phase)
8Insulation class : B
Protection grade: IP 68
8Maximum diameter : Φ93mm
8Highest temperature of liquid : 35 ℃
8International standard: IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.

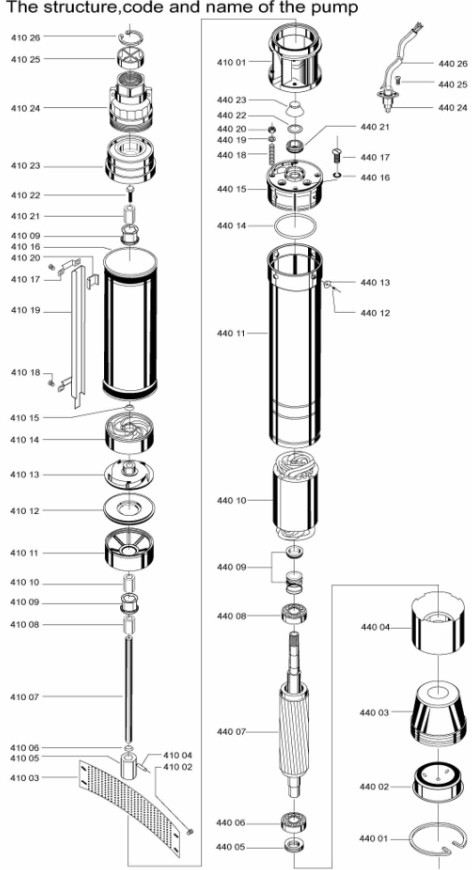

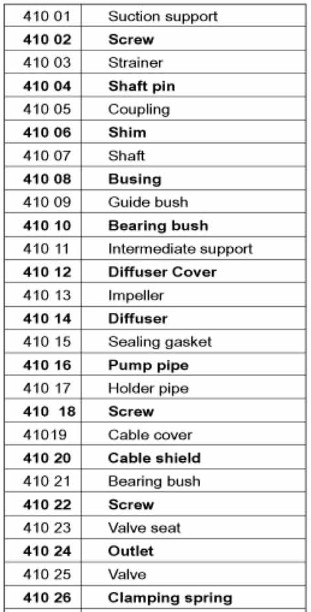

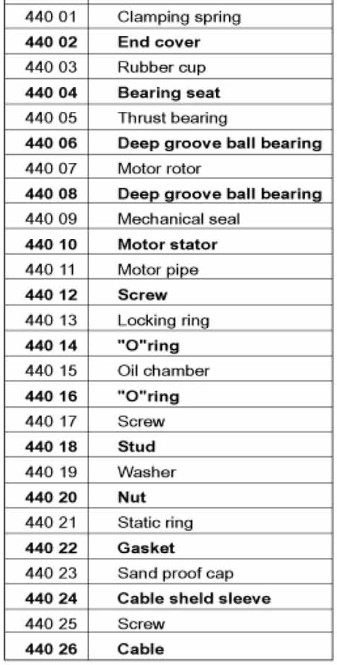

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic  (PPO).
8Inlet and Outlet: brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.




























WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Motor Power

Capacity and head

DIMENSION

220-240V~50HZ

380-415V~50HZ

L/min

0

17

25

33

42

50

58

67

83

84

97

Length

Weight

1 Phase

3 Phase

kW

Hp

m3/h

0

1

1.5

2

2.5

3

3.5

4

5

4.5

5.8

mm

kg

100QJ205-0.37S

100QJ205-0.37T

0.37

0.5

Head

(m)

34

33

32

30

28

25



5



1



632

11.1

100QJ208-0.55S

100QJ208-0.55T

0.55

0.75

54

52

50

45

44

40



8



2



723

12.3

100QJ210-0.75S

100QJ210-0.75T

0.75

1

67

65

63

60

56

50



10



4



799

14

100QJ212-1.1S

100QJ212-1.1T

1.1

1.5

81

78

76

70

67

60



12



6



870

15.3

100QJ214-1.1S

100QJ214-1.1T

1.1

1.5

94

91

88

85

78

70



14



8



921

15.7

100QJ216-1.5S

100QJ216-1.5T

1.5

2

108

104

101

100

90

80



16



10



997

16.2

100QJ220-1.5S

100QJ220-1.5T

1.5

2

135

130

126

120

112

100



18



12



1099

18

100QJ225-2.2S

100QJ225-2.2T

2.2

3

168

163

158

150

140

125



19



14



1252

20.2

100QJ230-2.2S

100QJ230-2.2T

2.2

3

202

195

189

180

168

150



20



16



1379

21.4



































100QJ306-0.55S



0.55

0.75

43





39

36

30

27

21

6



4

689

12

100QJ308-0.75S



0.75

1

58





52

47

40

36

28

8



6

783

13.8

100QJ310-1.1S

100QJ310-1.1T

1.1

1.5

72





64

59

50

45

36

10



8

863

15.1

100QJ312-1.1S

100QJ312-1.1T

1.1

1.5

86





76

71

60

54

43

12



10

923

15.6

100QJ314-1.5S

100QJ314-1.5T

1.5

2

101





89

82

70

63

51

14



12

1008

17.1

100QJ316-1.5S

100QJ316-1.5T

1.5

2

115





101

93

80

73

58

16



14

1067

17.6

100QJ320-2.2S

100QJ320-2.2T

2.2

3



144





125

116

100

91

74

18



16

1212

19.6

100QJ324-2.2S

100QJ324-2.2T

2.2

3



173





149

138

120

110

90

20



18

1332

20.6



8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz  are available on request.
