    Home > Products > Garden pump > Submersible Pump

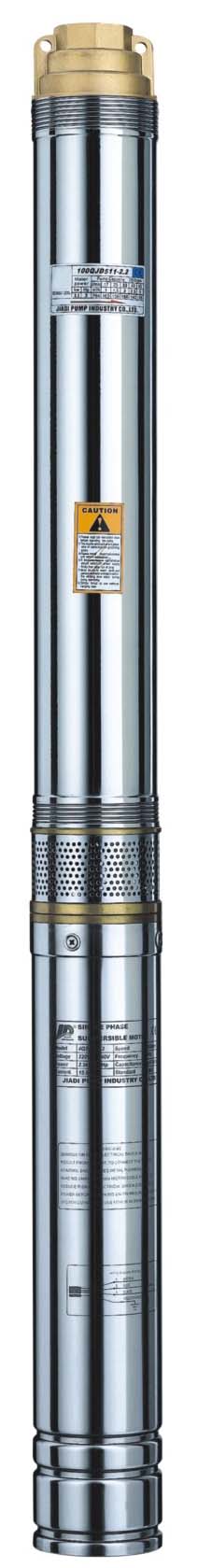

4" (100QJ-S) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

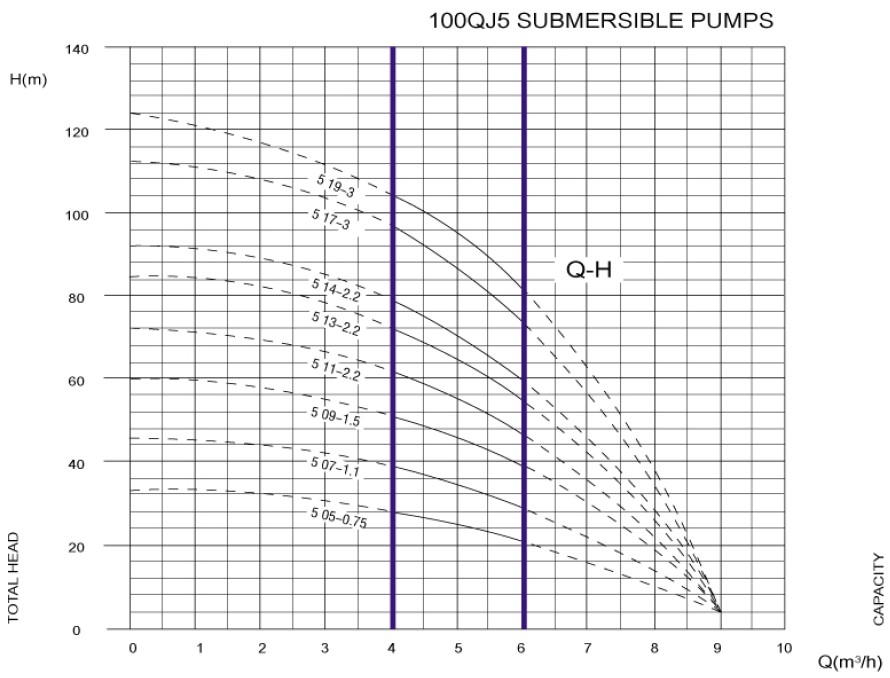

-Pump (100QJ5)

8Qmax: 9 (m3/h)
8Capacity from 4 to 6 (m3/h)
8Total head from 92 to 9 (m)

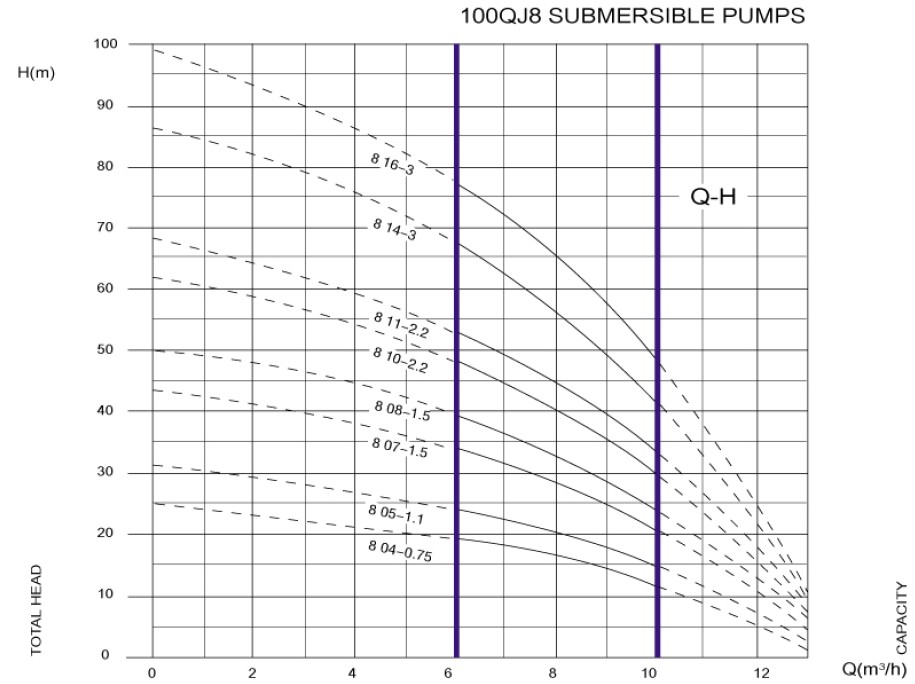

-Pump (100QJ8)

8Qmax: 13 (m3/h)
8Capacity from 6 to 10 (m3/h)
8Total head from 68 to 12 (m)

-MOTOR

8Rewindable oil-filled moter.
8Adopted the NEMA standard.
8Power: 0.75 to 2.2 KW (1 phase)
8Power : 1.1 to 2.2 KW (3 phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ93mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 4''.
8Maximum immersion depth: 80m.

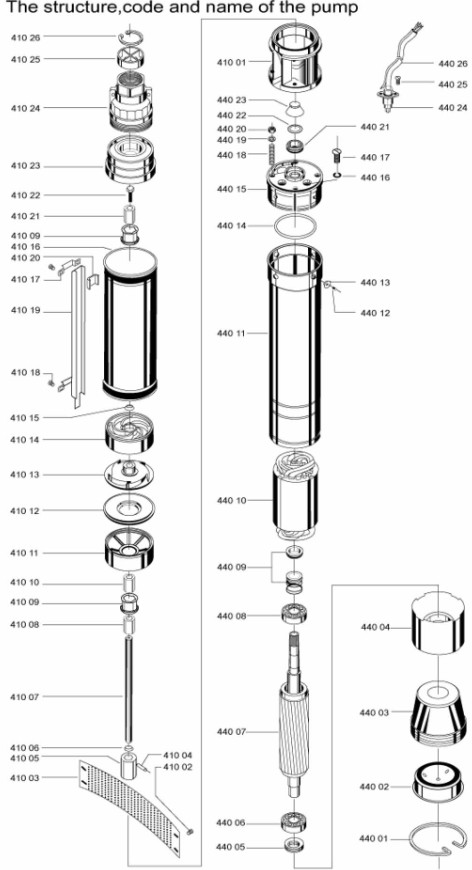

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller:plastic (PPO)
8Diffuser:plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.

























WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Motor Power

Capacity and head

DIMENSION

220-240V~50HZ

380-415V~50HZ

L/min

0

67

83

100

117

133

150

167

217

226

Length

Weight

1 Phase

3 Phase

kW

Hp

m3/h

0

4

5

6

7

8

9

10

13

13.6

mm

kg

100QJ505-0.75S



0.75

1

Head

(m)

33

28

25

21

16

9

2







735

13.7

100QJ507-1.1S

100QJ507-1.1T

1.1

1.5

46

39

35

29

22

13

3







822

17.1

100QJ509-1.5S

100QJ509-1.5T

1.5

2

59

50

45

37

28

16

4







914

18.9

100QJ511-2.2S

100QJ511-2.2T

2.2

3

72

62

55

45

34

20

5







1044

19.7

100QJ513-2.2S

100QJ513-2.2T

2.2

3

85

73

65

53

40

23

6







1111

23.4

100QJ514-2.2S

100QJ514-2.2T

2.2

3

92

78

70

59

45

25

7







1235

24.2

































100QJ804-0.75S



0.75

1

25





19

18

16

14

12

2

1

809

18

100QJ805-1.1S

100QJ805-1.1T

1.1

1.5

31





24

23

20

18

15

3

2

859

19

100QJ807-1.5S

100QJ807-1.5T

1.5

2

43





34

32

29

25

21

5

3

983

21

100QJ808-1.5S

100QJ808-1.5T

1.5

2

50





39

36

33

29

24

7

5

1033

22

100QJ810-2.2S

100QJ810-2.2T

2.2

3

62





49

45

41

36

30

8

6

1157

24

100QJ811-2.2S

100QJ811-2.2T

2.2

3

68





53

50

45

40

33

9

7

1207

25

8Three-phase 220/380V-50Hz (60hz), single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz  are available on request.
