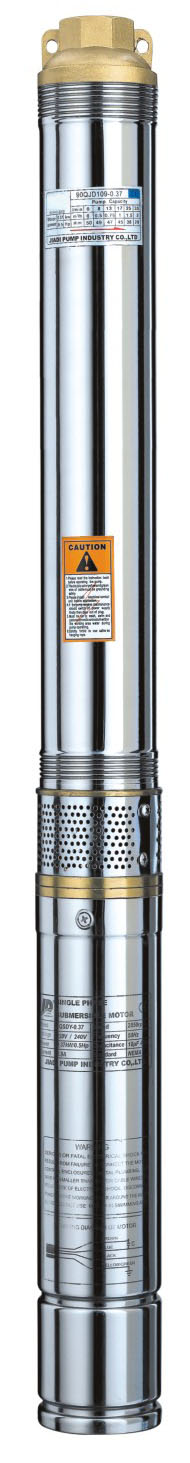

3.5" (90QJ-S) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

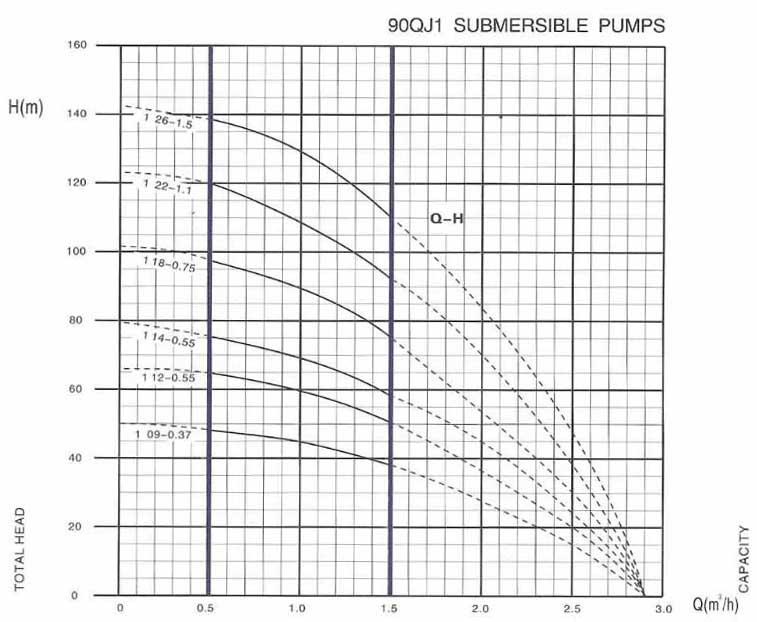

-Pump(90QJ-1)

8Qmax: 2.8(m3/h)
8Capacity from 1 to 2 (m3/h)
8Total head from 143 to 29 (m)

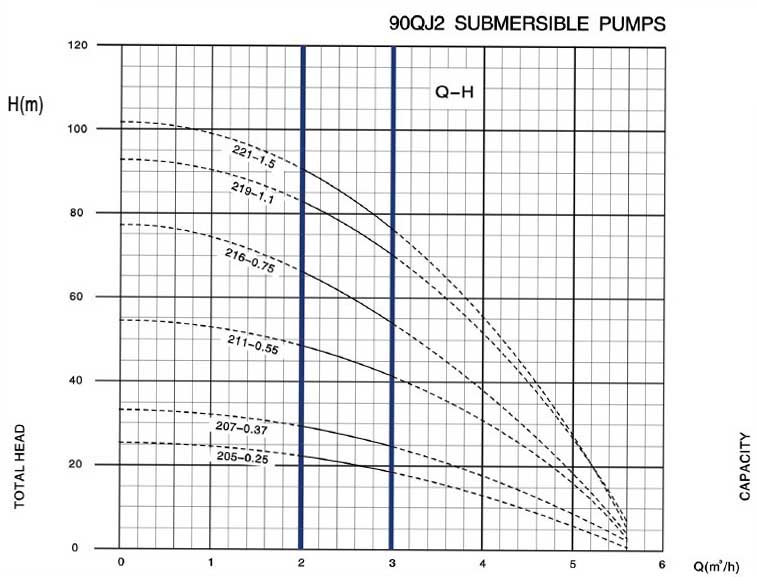

-Pump(90QJ-2)

8Qmax: 5.6(m3/h)
8Capacity from 2 to 3 (m3/h)
8Total head from 102 to 2 (m)

- Motor

8Rewindable oil-filled motor
8Power : 0.37 to 1.5 KW (Single phase)
(90QJ2)/Power:0.25 to 1.5 kW(Single phase)(90QJ2)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ83mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum International diameter of well: 3.5''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

Motor Power

Capacity and head

DIMENSION

220-240V~50HZ

L/min

0

8

13

17

25

33

42

47

50

58

70

Length

Weight

1 Phase

kW

Hp

m3/h

0

0.5

0.75

1

1.5

2

2.5

2.8

3

3.5

4.2

mm

kg

90QJ106-0.25S

0.25

0.33

Head

(m)

33

32

31

30

25

20



2







637

9

90QJ109-0.37S

0.37

0.5

50

49

47

45

38

29



3







742

10

90QJ112-0.55S

0.55

0.75

67

65

63

60

50

38



4







895

11

90QJ114-0.55S

0.55

0.75

78

76

74

70

59

45



5







920

12

90QJ118-0.75S

0.75

1

101

98

95

90

76

58



6







1039

13

90QJ122-1.1S

1.1

1.5

123

120

116

110

92

70



7







1118

14

90QJ126-1.5S

1.5

2

143

138

135

130

109

83



8







1323

16

































90QJ206-0.25S

0.25

0.33

35

34



32

30

28

24



19

13

0

638

7.2

90QJ208-0.37S

0.37

0.5

45

44



42

39

34

28



21

13

1

701

8

90QJ212-0.55S

0.55

0.75

71

69



65

62

56

47



37

24

1

858

8.7

90QJ216-0.75S

0.75

1

90

88



83

77

67

57



42

24

2

972

10.5

90QJ221-1.1S

1.1

1.5

122

118



112

104

92

79



61

37

2

1156

11.9

90QJ224-1.5S

1.5

2

139

134



127

118

104

90



69

42

3

1250

13.6

90QJ227-1.8S

1.8

2.4



155

149



146

131

115

101



76

46

4

1335

15

8Single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.
