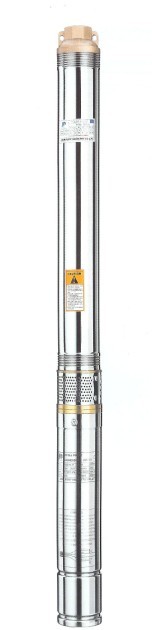

3" (75QJ-S) SUBMERSIBLE BOREHOLE PUMP

TECHNICAL DATA:

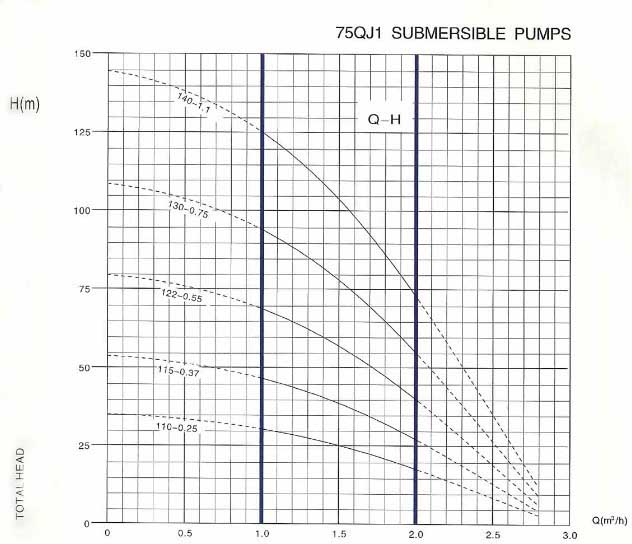

-Pump(75QJ1)

8Qmax: 2.8(m3/h)
8Capacity from 1 to 2 (m3/h)
8Total head from 144 to 4 (m).

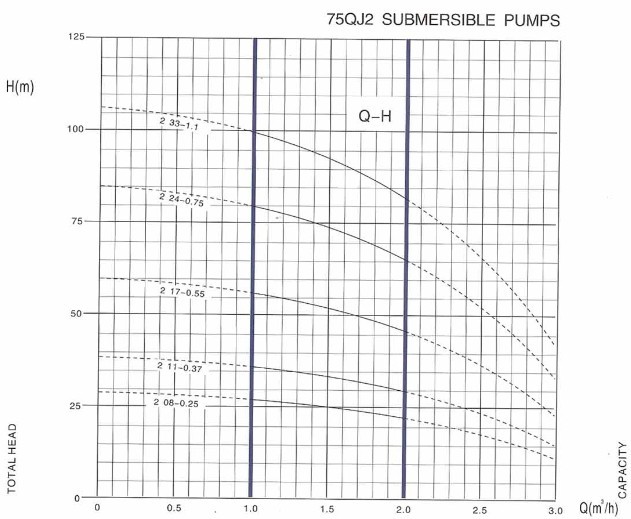

-Pump(75QJ2)

8Qmax: 3.8(m3/h)
8Capacity from 1 to 2 (m3/h)
8Total head from 110 to 11 (m).

-Motor

8Rewindable oil-filled motor
8Power:0.25 to 1.1 KW (Single phase)
8Insulation class : B
8Protection grade: IP 68
8Maximum diameter : Φ75mm
8Highest temperature of liquid : 35 ℃
8International standard:  IEC 60335-1   IEC 60335-2-41.

-Application:

8For water supply from wells or reservoirs.
8For domestic use,for civil and industrial applications.
8For sprimking and flow irrigation plants.
8These pumps are designed to lift water form wells of size 3'',3.5'',4'',5'',6'' up to maximum.

-Operating conditions:

8Water temperature up to 35 Cent.Degree.
8Maximum sand content: 0.25%
8Minimum international diameter of well: 3''.
8Maximum immersion depth: 80m.

-Materials:

8Pump casing: AISI 304 stainless steel
8Impeller: plastic (PPO)
8Diffuser: plastic (PC)
8Non-return valve: plastic (PPO).
8Inlet and Outlet:  brass/stainless steel/cast iron.
8Shaft AISI 304 stainless steel.
8Motor casing: AISI 304 stainless steel.
8Mechanical seal: tungsten carbides.




WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL

STAGE
Motor
POWER

Capacity and head

DIMENSION

220-240V~50Hz

L/min

0

8

17

25

30

33

42

47

Length

Weight

1 Phase
(Kw)
(Hp)

m3/h

0

0.5

1

1.5

1.8

2

2.5

2.8
mm
kg
75QJ110-0.25S
10
0.25

0.33

Head(m)

38

36

33

28

23

20

10

4

747

7.75

75QJ115-0.37S
15
0.37

0.5

55

54

50

40

34

29

14

5

900

9.35

75QJ122-0.55S
22
0.55

0.75

79

78

72

58

50

42

20

7

1140

11

75QJ130-0.75S
30

0.75

1

108

105

93

76

64

57

27

10

1395

13.3

75QJ140-1.1S
40

1.1

1.5

144

132

120

91

76

60

35

13

1705

15.7

























75QJ208-0.25S

 8

0.25

0.33

28

27

26

25

23

22

17

11

720

7.1

75QJ211-0.37S

 11

0.37

0.5

39

37

36

34

32

30

24

15

828

8.2

75QJ217-0.55S
17

0.55

0.75

60

58

56

52

49

46

37

23

1054

9.8

75QJ224-0.75S
24

0.75

1

85

82

79

74

70

65

52

33

1316

11.9

75QJ233-1.1S
33

1.1

1.5

110

107

101

95

90

85

67

42

1604

14.2

8Single phase 240V/50Hz, 220V/60Hz, 110V/60Hz, 127V/60Hz are available on request.
