    Home > Products > Garden pump > Submersible Pump

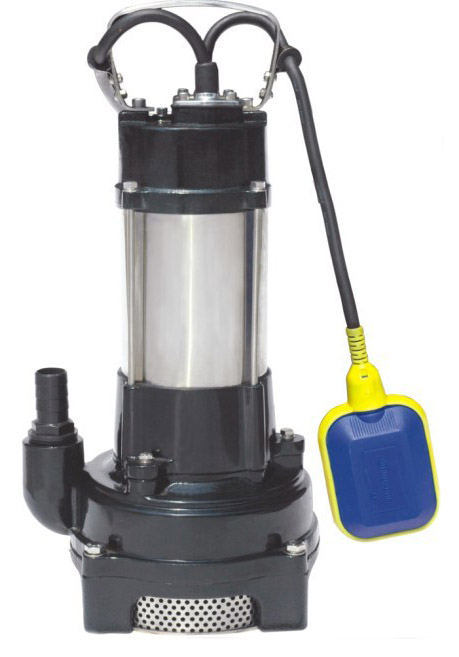

HSPA SERIES STANDING SUBMERSIBLE PUMP

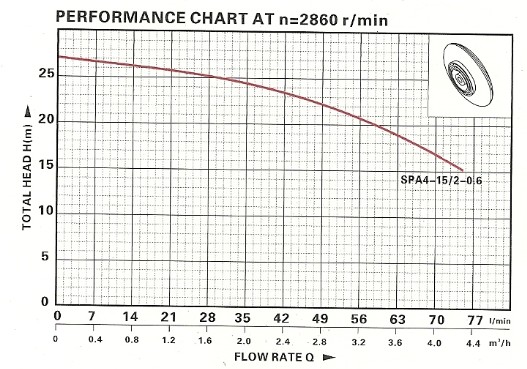

RANGE OF PERFORMANCE
8Flow rate:  up to 75 L/min (4.5 m3/h)
8Head: up to 27 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2 mm

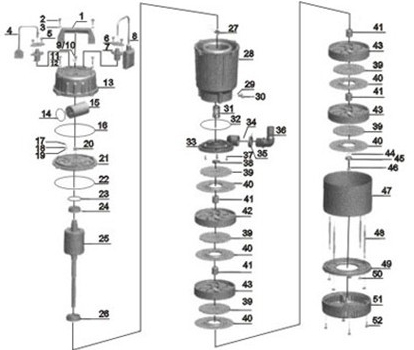

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 16 "O" ring 31 Mechanical seal 46 Bolt
2 Screw 17 Screw 32 "O" ring 47 Machine canister
3 Washer 18 Spring washer 33 Connection part 48 Bilateral bolt
4 Cable 19 Washer 34 "O" ring 49 Base plate
5 Screw 20 Line protector 35 Connection nut 50 Nut
6 Flange 21 Cover 36 Out-let connector 51 Filter mesh
7 Cable protector 22 "O" ring 37  Screw 52  Screw
8 Float switch 23 Undulated washer 38 Oil seal 53
9 Screw 24 Bearing 39 Impeller 54
10 "O" ring 25 Rotor 40 Gulde leaf cover 55
11 Bolt 26 Bearing 41 Shaft sleeve 56
12 Washer 27 Thermal protector 42 Upper gulde leaf 57
13 Capacitor cover 28 Stator 43 Lower gulde leaf 58
14 "O" ring 29 "O" ring 44 Washer 59
15 Capacitor 30 Bolt 45 Shaft sleeve 60

WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET
CABLE
G.W
PACKING DIMENSION

20' QUANTITY

(w)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

HSPA2-0.6F
600
27
75
25

5.3
18.5
27X23.5X50

820

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
