    Home > Products > Garden pump > Submersible Pump

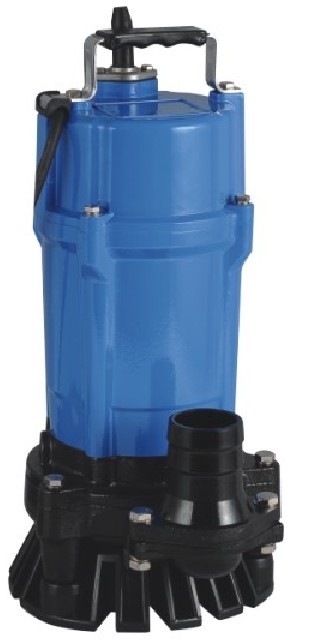

SPA SERIES STANDING SUBMERSIBLE PUMP

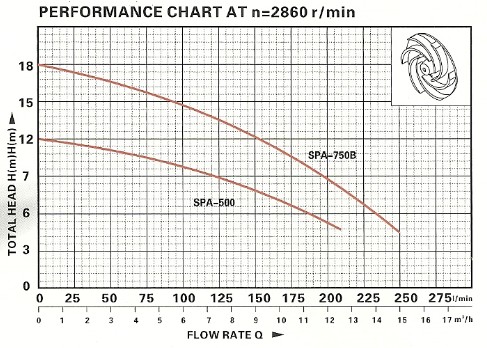

RANGE OF PERFORMANCE
8Flow rate up to 250 L/min (15 m3/h)
8Head up to 18 m



LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2 mm

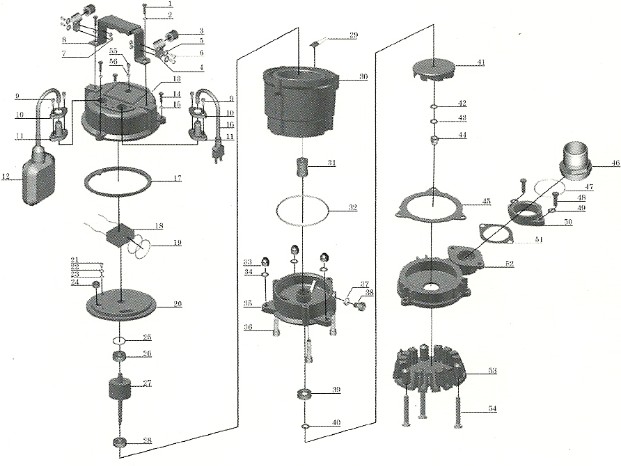

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 Cable 31 Mechanical seal 46 Out-let connector
2 Washer 17 Rubber washer 32 "O" ring 47 "O" ring
3 Protector 18 Capacitor 33 Nut 48 Bolt
4 Cable presser 19 "O" ring 34 Washer 49 Washer
5 Washer 20 Motor cover 35 Connection part 50 Connection nut
6 Screw 21 Screw 36 Screw 51 Rubber washer
7 Nut 22 Stretching washer 37  "O" ring 52 Pump body
8 Handle 23 Washer 38 Bolt 53  Base plate
9 Screw 24 Line protector 39 Oil seal 54  Bolt
10 Flange 25 Undulated washer 40 Washer 55 Screw
11 Cable protector 26 Ball bearing 41 Impeller 56 "O" ring
12 Float switch 27 Rotor 42 Washer 57
13 Capacitor cover 28 Ball bearing 43 Stretching washer 58
14 Bolt 29 Thermal protector 44 Nut 59
15 Washer 30 Motor Stator 45 Rubber washer 60





WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION

20' QUANTITY

(Kw)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

SPA-500
0.5
12
210
50

6
13.5
24.5X22X40

1420

SPA-750B
0.75
18
250
75

6
19
32X22.5X43

870

8220V/50Hz, 240V/50Hz, 110V/60Hz  & 220V/60Hz are available on request.
