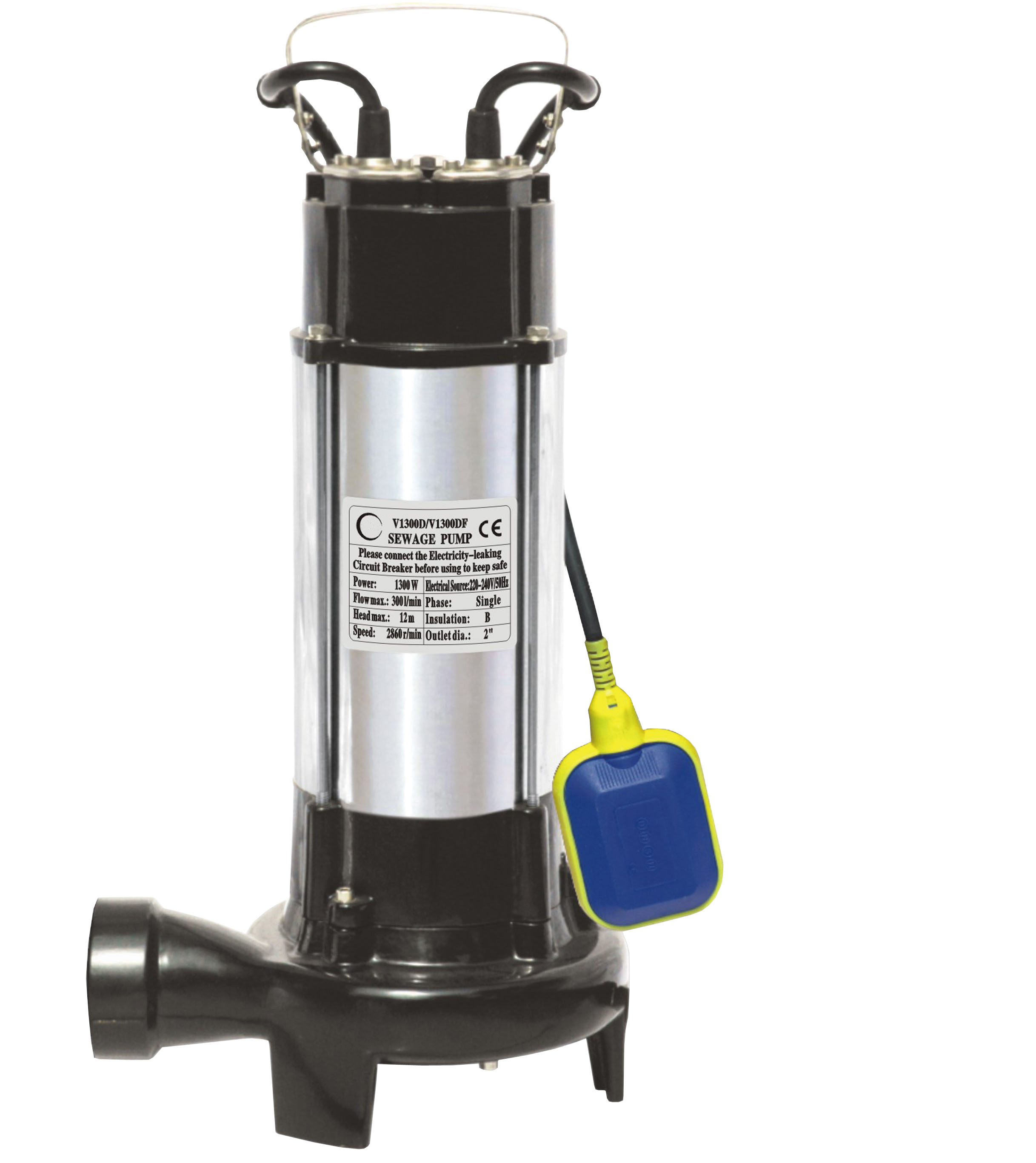

V MODEL SUBMERSIBLE SEWAGE PUMP

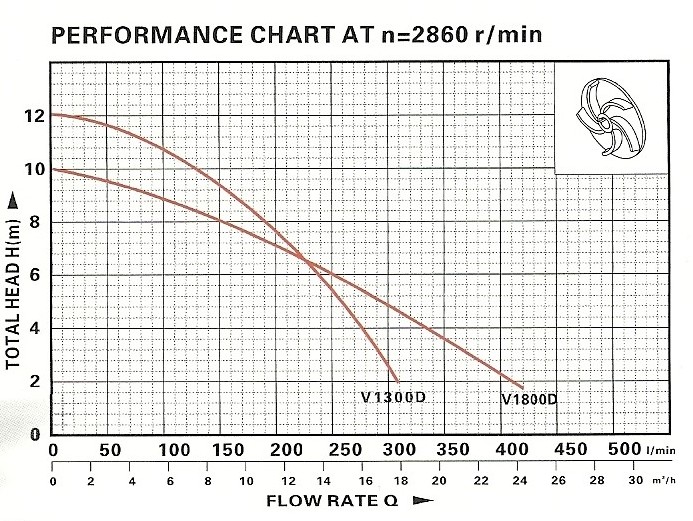

RANGE OF PERFORMANCE
8Flow rate: up to 440 L/min (26.4 m3/h)
8Head: up. to 12 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

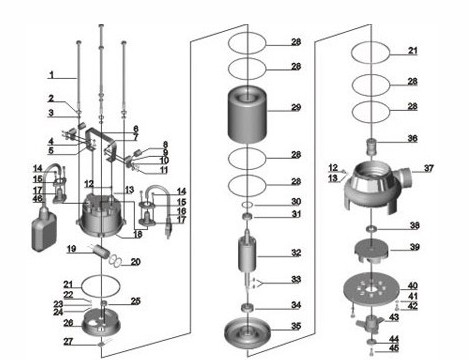

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 13 "O" ring 25 Line protector 37 "O" ring
2 Stretching washer 14 Screw 26 Upper cover 38 Pump body
3 Washer 15 Flange 27 Thermal protector 39 Oil seal
4 Bolt 16 Cable 28 "O" ring 40 Impeller
5 Washer 17 Cable protector 29 Stator 41 Nut
6 Handle 18 Capacitor cover 30 Undulated washer 42 Pump cover
7 Nut 19 Capacitor 31 Bearing 43 Base plate
8 Protector 20 "O" ring 32 Rotor 44 Washer
9 Cable presser 21 Rubber washer 33 Bearing 45 Bolt
10 Washer 22 Screw 34 Lower cover 46 Float switch
11 Screw 23 Stretching washer 35 Mechanical seal 47
12 Bolt 24 Washer 36 Out-let connector 48



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION

20' QUANTITY

(w)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

V-1100DF
1100
7
233
50

5.3
22.5
27.5X22.5X52.5

930

V-1300DF
1300
12
300
50

5.3
25.5
56.5X30.5X24.5

630

V-1800DF

1800

10

440

75

5.3

20.5

 56.5X30.5X24.5

630

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
