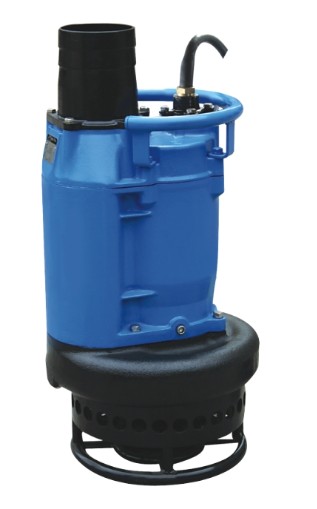

KBS SERIES SUBMERSIBLE SEWAGE PUMP

RANGE OF PERFORMANCE
8Flow rate up to 47.5 L/min (2.85 m3/h)
8Head up to 22 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 10-35mm

MAIN FEATURES

8Submersible slurry pumps with a 4-pole motor for an increased lifetime and greater convenience.
8KBS-based extra powered submeisible slurry pumps with agitator.
8Slim design with a top discharge enabling installation in smaller casingse.
8For bentonite mixed water in foundation works or muddy water in civil engineering works.



MOTOR

8Two-pole induction motor (n=2850rpm)
8Power:4Kw to 9Kw
8Voltage:Three phase 380V±10%,50Hz,60Hz
8Insulation class:F
8Protection class:IP68
8Cable Length:8m

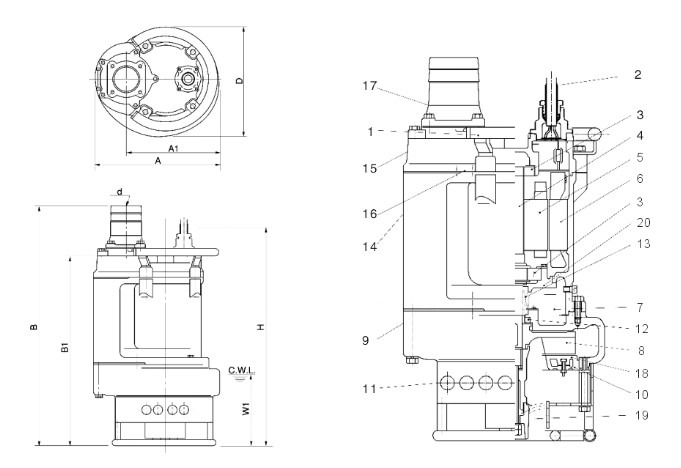

STRUCURAL CHARACTERISTIC

8Cast iron pump body
8Stainless steel shaft
8Stainless steel mechancial seal
8Sic to Sic/graphite to ceramic
8Nodular cast iron semi-open impeller(or high chrome alloy)

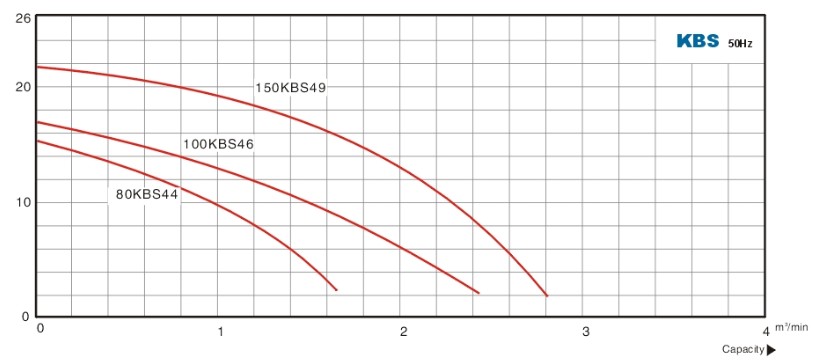

Performance curves

WARRANTY: 1 YEAR (according to our general sales conditions)

 Model

 Outlet

 Motor power

Voltage

Max head

Max capacity

Impeller passage

N.W

 G.W

Dimension

 mm

 Kw

HP

 m

 m3/min

 mm

 Kg

 Kg

 mm

 KBS34

 80

 4

5.5

 380V/50Hz

 14.8

 1.65

 30

 105

 113

390*370*940

 KBS46

 100

 6

 8

 16.9

 2.50

 30

 145

 156

 420*480*970

 KBS69

 150

 9

 12

 21.5

 2.85

 30

 170

184

 480*480*1030
