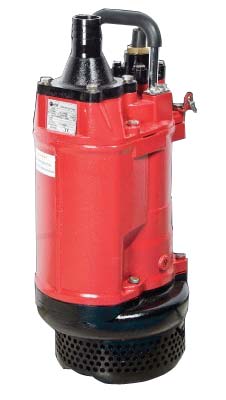

8The body of motor and pumps is made of rigid cast iron for long-lasting durability.
8Greatly increased maximum submersion depth due to mechanical seal resistant to high pressure(0.5Mpa).
8Semi-open impeller made of high chrome alloy match with wear plate(ductile iron) achieves superior durability.
8Effective motor cooling due to discharge channel cast as part of the motor housing. Space economy by a top outlet.

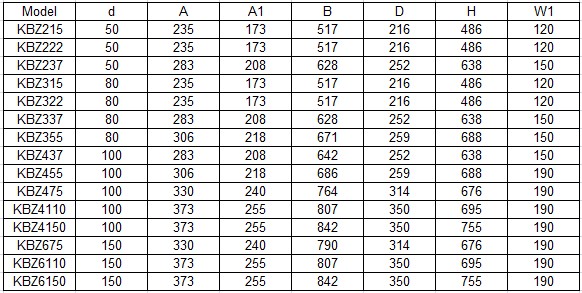

8Discharge 50mm(2") to 150mm (6"), motor 1.5Kw (2HP) to 15Kw(20HP).
8Hermetically sealed motor eqipped bulid-in thermal protection

MOTOR

8Two-pole induction motor (n=2850rpm)
8Power:1.5Kw to 11Kw
8Voltage:Three phase 380V±10%,50Hz,60Hz
8Insulation class:F
8Protection class:IP68
8Cable Length:8m

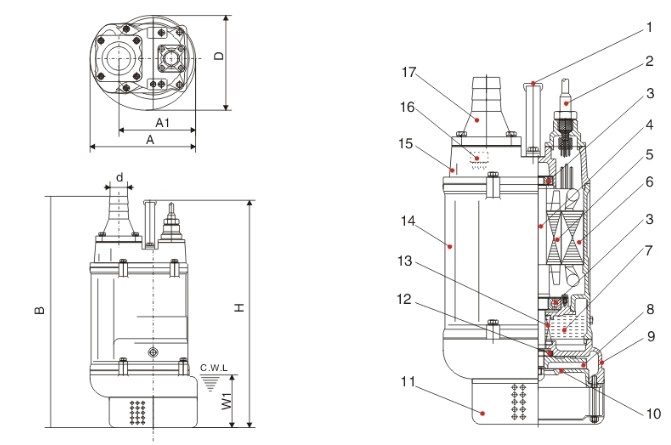

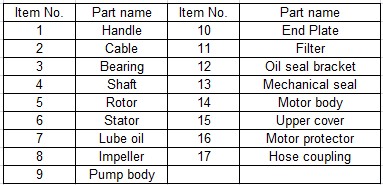

STRUCURAL CHARACTERISTIC

8Cast iron pump body
8Stainless steel shaft
8Stainless steel mechancial seal
8Sic to Sic/graphite to ceramic
8Nodular cast iron semi-open impeller(or high chrome alloy)
