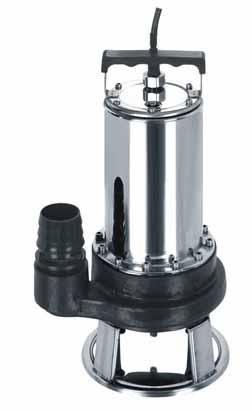

WQG SERIES STAINLESS STEEL SUBMERSIBLE SEWAGE PUMPS

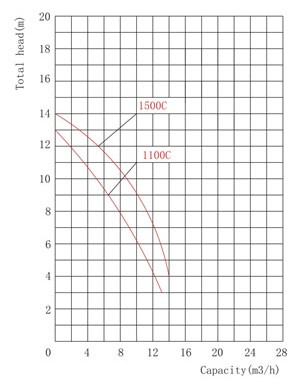

RANGE OF PERFORMANCE
8Flow rate: up to 250 L/min (15  m3/h)
8Head: up to 14 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 50mm

WORKING PRINCIPLE
8This SINGLE VANE pump is designed fo automatic use (single phase). The principle is pump with a single vane impeller, which is mounted at the end of the drive shaft and enclosed in a large ring chamber, formed by the pump body and the base. The suction opening is in direct with th liquid to be pumped. The rotating impeller transmits kinetic energy to the liquid, which is centrifuged in the ring chamber, where part of the kinetic energy is transformed into pressure engergy. The particular shape of the impeller makes the optimized efficiency.

MAIN FEATURES
8This series of sewage pumps can be made of standard AISI SS 304 or 316L according to its usage,which can be made equipped with different cutting systems to cut long fiber, mince so that it can't be blocked easily. It's suitable for discharge of sewage and domestic waste water etc.

STRUCTURAL CHARACTERISTIC
8Pump body : Stainless steel
8Impeller : Stainless steel single vane

8Motor sleeve: Stainless Steel

8Mechanical seal : double SiC/SiC
8Shaft : SS420
8Bearing: C&U or China local or NSK etc.
8Insulation class : F
8Protection class : IP 68
8With float switch (or without)
8With thermal overload protector in single phase motor.

WARRANTY: 1 YEAR (according to our general sales conditions)

Model

Power

Max.Flow

 Max.Head

Outlet

Cable

G.W.

Packing Size

20"QUANTITY

 KW

HP

 (m3/h)

 (m)

 mm

 m

 Kg

 mm

 pcs

WQG-1100C

 1.1

 1.5

14

13

50/65

10

18

 225*265*460

1000

 WQG-1500C

 1.5

2

15

14

 50/65

10

19

 225*265*460

947

8380V/50(60Hz), 220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
