    Home > New Products > Garden pump > Submersible Pump

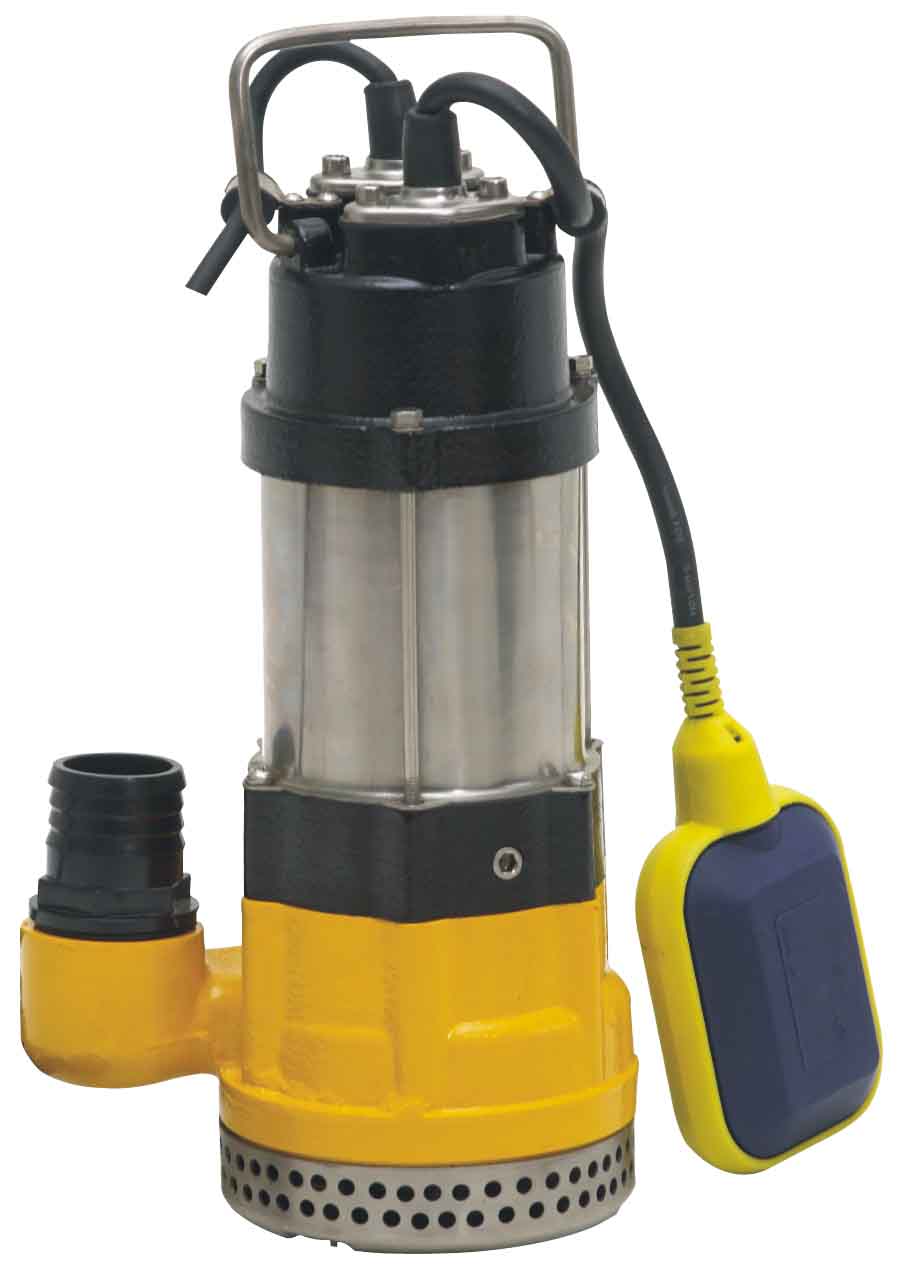

SPA SERIES STANDING SUBMERSIBLE  PUMP

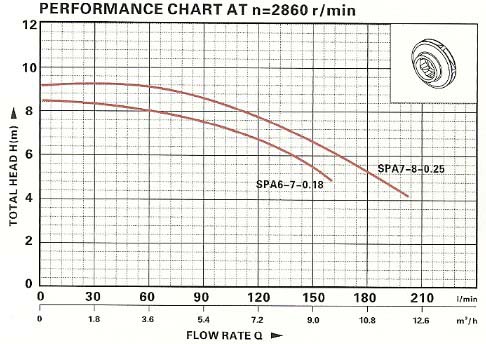

RANGE OF PERFORMANCE
8Flow rate: up to 200 L/min (12 m3/h)
8Head: up to 9 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 2 mm

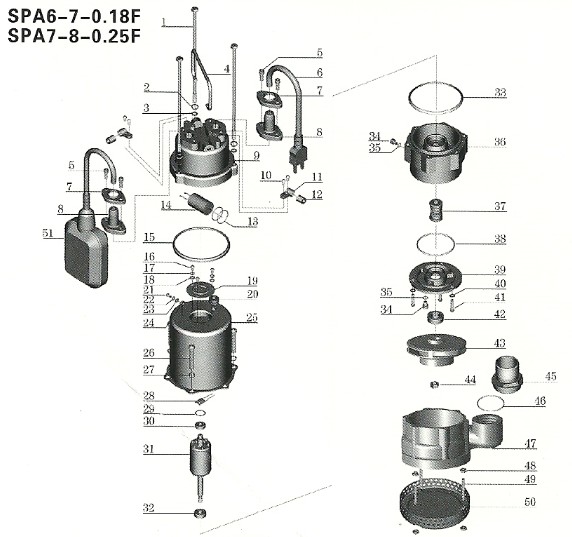

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Bolt 16 Screw 31 Rotor 46 "O" ring
2 Stretching washer 17 Stretching washer 32 Ball bearing 47 Pump body
3 Washer 18 Washer 33 Rubber washer 48 Nut
4 Handle 19 press plate 34 Screw 49 Bilateral bolt
5 Screw 20 Line protector 35 "O" ring 50 Filter mesh
6 Cable 21 Screw 36 Connection part 51 Float switch
7 Flange 22 Stretching washer 37 Mechanical seal 52
8 Cable protector 23 Washer 38 "O" ring 53
9 Capacitor cover 24 Nut 39 Oil chamber cover 54
10 Screw 25 Motor stator 40 Washer 55
11 Cable presser 26 Screw 41 Screw 56
12 Protector 27 Stretching washer 42 Oil seal 57
13 "O" ring 28 Thermal protector 43 Impeller 58
14 Capacitor 29 Undulated washer 44 Nut 59
15 Rubber washer 30 Ball bearing 45 Out-let connector 60



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION
20‘ QUANTITY

(Kw)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

SPA6-7-0.18F
0.18
8.5
166
40

5.3
9.5
18.5X18X40

2050

SPA7-8-0.25F
0.25
9

200

40

5.3
10.5
18.5X18X42

2000

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
