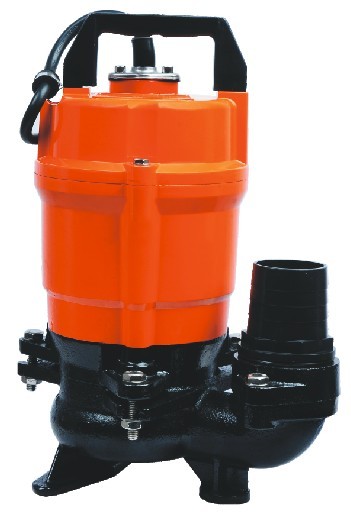

V(WQ)MODEL SUBMERSIBLE  SEWAGE PUMP

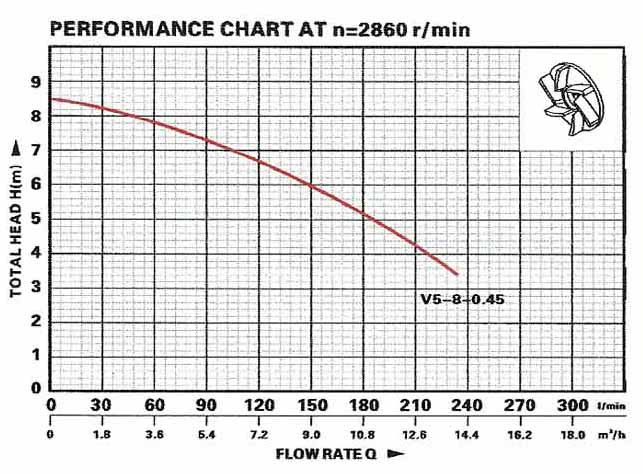

RANGE OF PERFORMANCE
8Flow rate: up to 233 L/min (14 m3/h)
8Head: up to 8.5 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

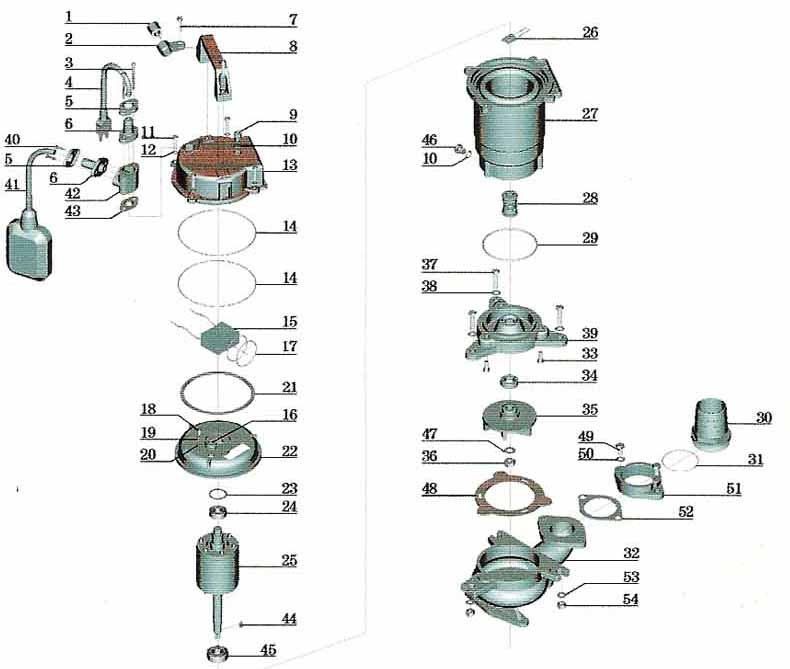

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Protector 16 Line protector 31 "O" ring 46 Bolt
2 Cable presser 17 "O" ring 32 Pump body 47 Washer
3 Screw 18 Screw 33 Screw 48 Rubber washer
4 Cable 19 Stretching washer 34 Oil seal 49 Bolt
5 Flange 20 Washer 35 Impeller 50 Washer
6 Cable protector 21 Rubber washer 36 Nut 51 Connection nut
7 Screw 22 Motor cover 37 Bolt 52 Rubber washer
8 Handle 23 Undulated washer 38 Washer 53 Washer
9 Screw 24 Ball bearing 39 Connection part 54 Nut
10 "O" ring 25 Rotor 40 Screw 55
11 Bolt 26 Thermal protector 41 Float switch 56
12 Washer 27 Motor stator 42 Tees 57
13 Capacitor cover 28 Mechanical seal 43 Rubber washer 58
14 "O" ring 29 "O" ring 44 Key 59
15 Capacitor 30 Out-let connector 45 Ball bearing 60



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

MAX.DIA
G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(mm)
(K.g)
(cm)

pcs

V5-8
450
8.5
233
50

15
11
25X22X36

810

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
