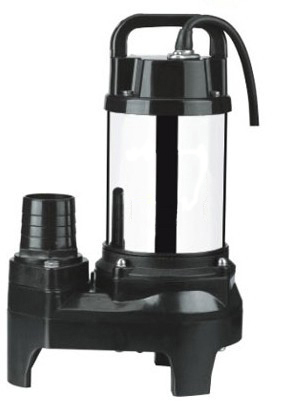

VP MODEL OF PLASTIC SUBMERSIBLE SEWAGE PUMP

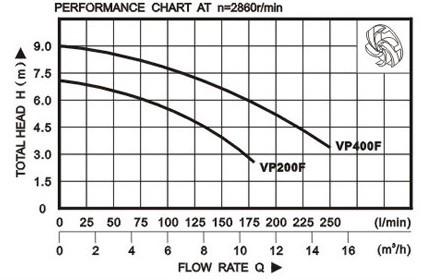

RANGE OF PERFORMANCE
8Flow rate: up to 250 L/min (15 m3/h)
8Head: up to 9 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 15mm

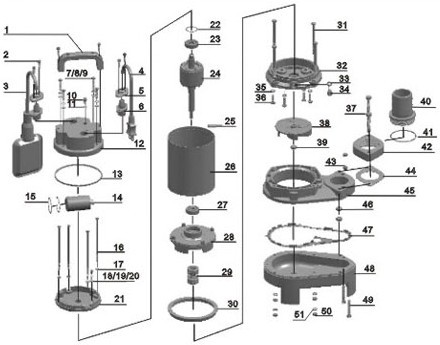

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 16 Screw 31 Bolt 46 Nut
2 Screw 17 Washer 32 Connection part 47 Rubber washer
3 Float switch 18 Screw 33 "O" ring 48 Lower Pump body
4 Cable 19 Streching washer 34 Screw 49  Screw
5 Flange 20 Washer 35 "O" ring 50 Nut
6 Cable protector 21 Upper cover 36 Screw 51 Washer
7 Bolt 22 Undulated washer 37 Bolt 52
8 Washer 23 Bearing 38 Impeller 53
9 "O" ring 24 Rotor 39 Nut 54
10 Screw 25 Thermal protector 40 Out-let connector 55
11 "O" ring 26 Stator 41 "O" ring 56
12 Capacitor cover 27 Bearing 42 Connection nut 57
13 Seal washer 28 Lower cover 43 Nut 58
14 Capacitor 29 Mechanical seal 44 Rubber washer
15 "O" ring 30 Seal washer 45 Upper Pump body




WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

MAX.DIA
G.W
PACKING DIMENSION
20‘ QUANTITY

(w)
(m)
(l/min)
(mm)

(mm)
(K.g)
(cm)

 (pcs)

VP200F

200

7

180

50

15

7.8

40X27.5X19.5

630

VP400F

400

9

250

50

15

9

40X27.5X19.5

630

8220V/50Hz, 240V/50Hz, 110V/60Hz & 240V/60Hz are available on request.
