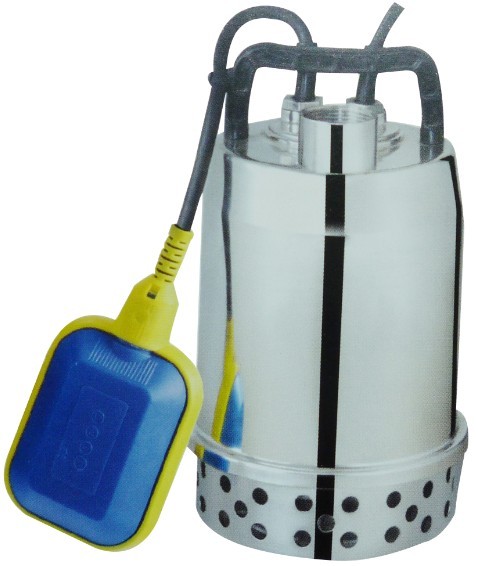

SS-250F MODEL SUBMERSIBLE SEWAGE PUMP

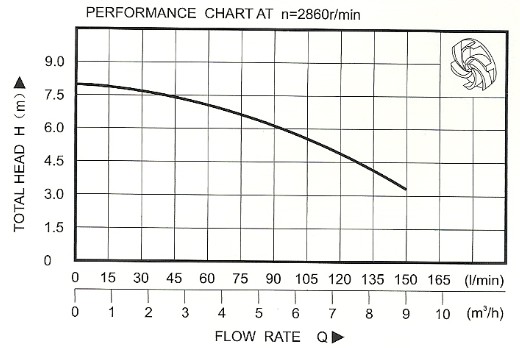

RANGE OF PERFORMANCE
8Flow rate: up to150 L/min (9 m3/h)
8Head: up to 8 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :4-10
8Maximum Passage for suspended solids: 2mm

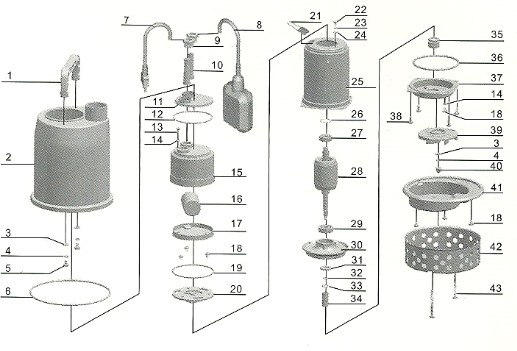

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 13 Screw 25 Stator 37 Oil chamber cover
2 Pump casing 14 "O" ring 26 Undulated washer 38 Screw
3 Washer 15 Capacitor cover 27 Bearing 39 Impeller
4 Spring washer 16 Capacitor 28 Rotor 40 Nut
5 Bolt 17 Capacitor holder 29 Bearing 41 Pump body
6 "O" ring 18 Screw 30 Lower cover 42 Fitter mesh
7 Cable 19 "O" ring 31 Oil seal 43 Screw
8 Float switch 20 Upper cover 32 "O" ring 44
9 Gland nut 21 Thermal protector 33 Circlip for shaft 45
10 Cable protector 22 Screw 34 Shaft sleeve 46
11 Gland 23 Spring washer 35 Mechanical seal 47
12 "O" ring 24 Washer 36 "O" ring 48



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

Voltage/
Frequency
G.W
PACKING DIMENSION
20‘ QUANTITY

(Kw)
(m)
(l/min)
(mm)

(V/Hz)
(K.g)
(cm)

 pcs

SS-250F

0.25

8

150

32

220/50

5.5

 20X19X33

2250

8220V/50Hz  &240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
