    Home > New Products > Garden pump > Submersible Pump

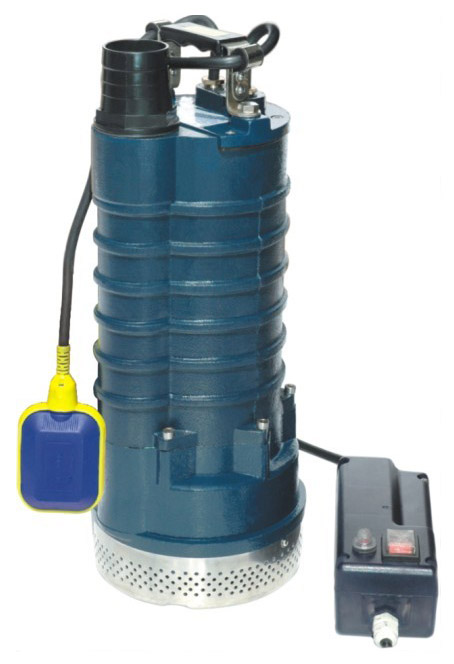

SPA SERIES STANDING SUBMERSIBLE PUMP

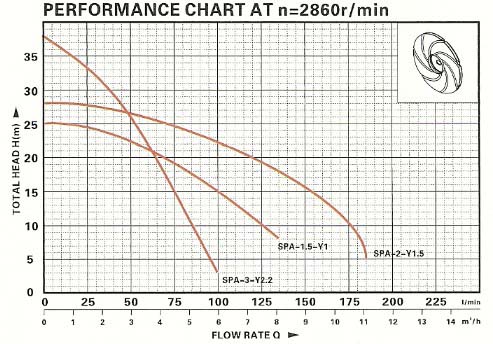

RANGE OF PERFORMANCE
8Flow rate: up to 185 L/min (11.1 m3/h)
8Head: up to 38 m

LIMITS OF USE
8Maximum operating depth 5m below waterlevel
8Maximum fluid  temperature 40℃
8PH value in water :6.5~8.5
8The grain diameter of the solids in the water is no bigger than 2 mm

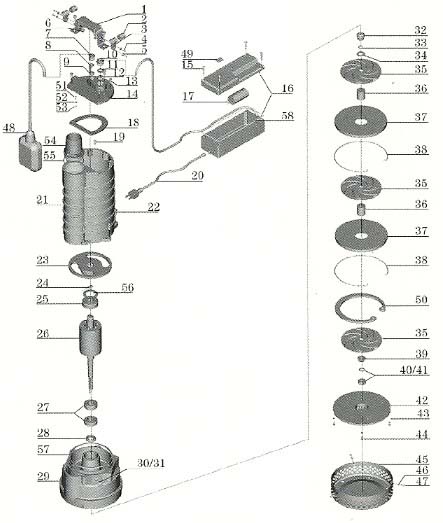

N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION N. DESCRIPTION
1 Handle 16 Capacitor box 31 "O" ring 46 Washer
2 Protector 17 Capacitor 32 Mechanical seal 47 Screw
3 Cable presser 18 Rubber washer 33 Snap ring 48 Float switch
4 Screw 19 Screw 34 Washer 49 Power switch
5 Washer 20 Cable 35 Impeller 50 Snap ring
6 Nut 21 Motor stator 36 Washer 51 Screw
7 Bolt 22 Screw 37 Guide leaf 52 Stretching washer
8 Washer 23 Motor cover 38 Word ring 53 Washer
9 Rubber washer 24 Thermal protector 39 Washer 54  Out-let connector
10 Bolt 25 Ball bearing 40 Washer 55  "O" ring
11 Washer 26 Rotor 41 Nut 56 Undulated washer
12 Rubber washer 27 Ball bearing 42 Pump cover 57 "O" ring
13 Screw 28 Oil seal 43 Washer 58 Rubber washer
14 Upper cover 29 Pump body 44 Screw 59
15 Screw 30 Screw 45 Filter mesh 60



WARRANTY: 1 YEAR (according to our general sales conditions)

MODEL
POWER
MAX.HEAD
MAX.FLOW
OUTLET

CABLE
G.W
PACKING DIMENSION

20' QUANTITY

(Kw)
(m)
(l/min)
(mm)

(m)
(K.g)
(cm)

 pcs

SPA-1.5-Y1F
1.1
25
135
50

10
29.5
58.5X35X24.5

556

SPA-2-Y1.5F
1.5
28
185
50

10
29.5
58.5X35X24.5

556

SPA-3-Y2.2F

2.2

38

100

50

10

30.0

 58.5X35X24.5

556

8220V/50Hz, 240V/50Hz & 220V/60Hz & 110V/60Hz are available on request.
